A freezer and cooler in one walk-in, with 3 freezer and 6 cooler glass doors on the front so customers shop frozen and cold from the same aisle.

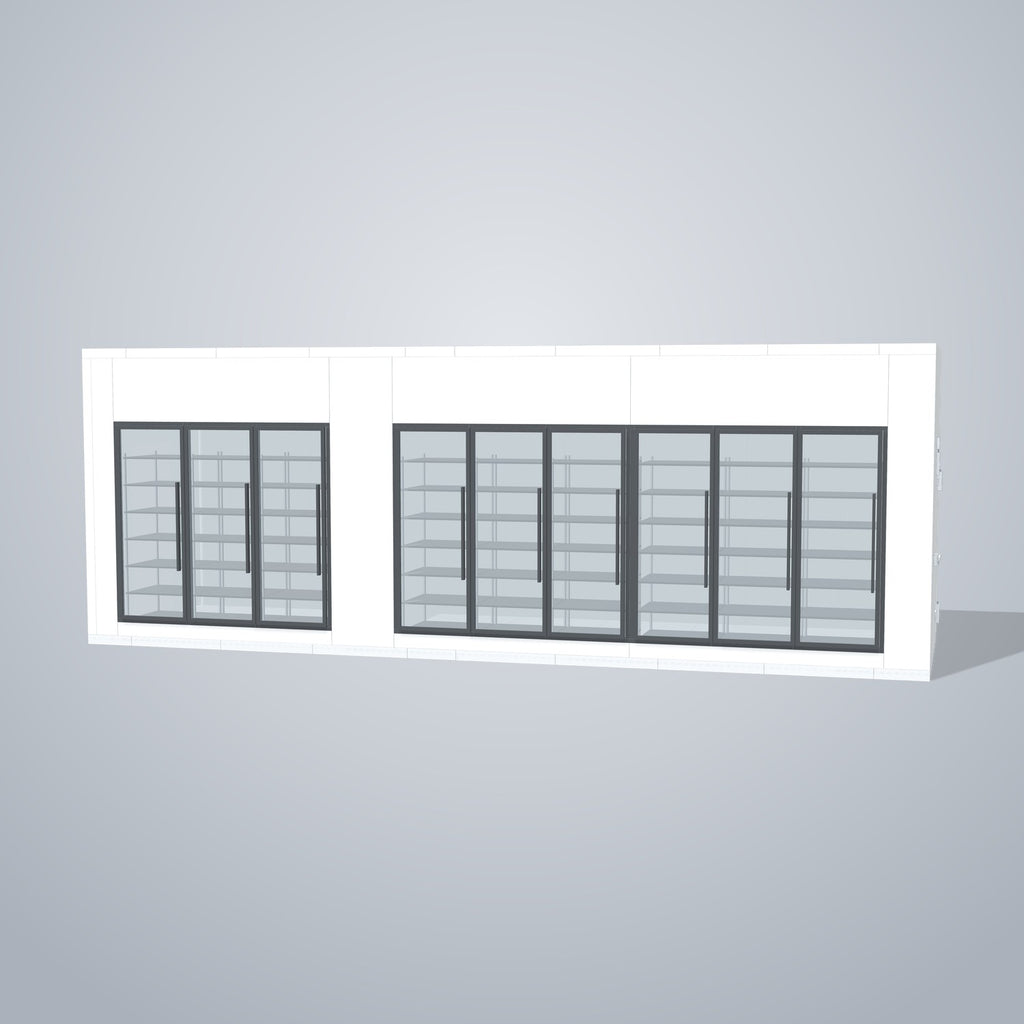

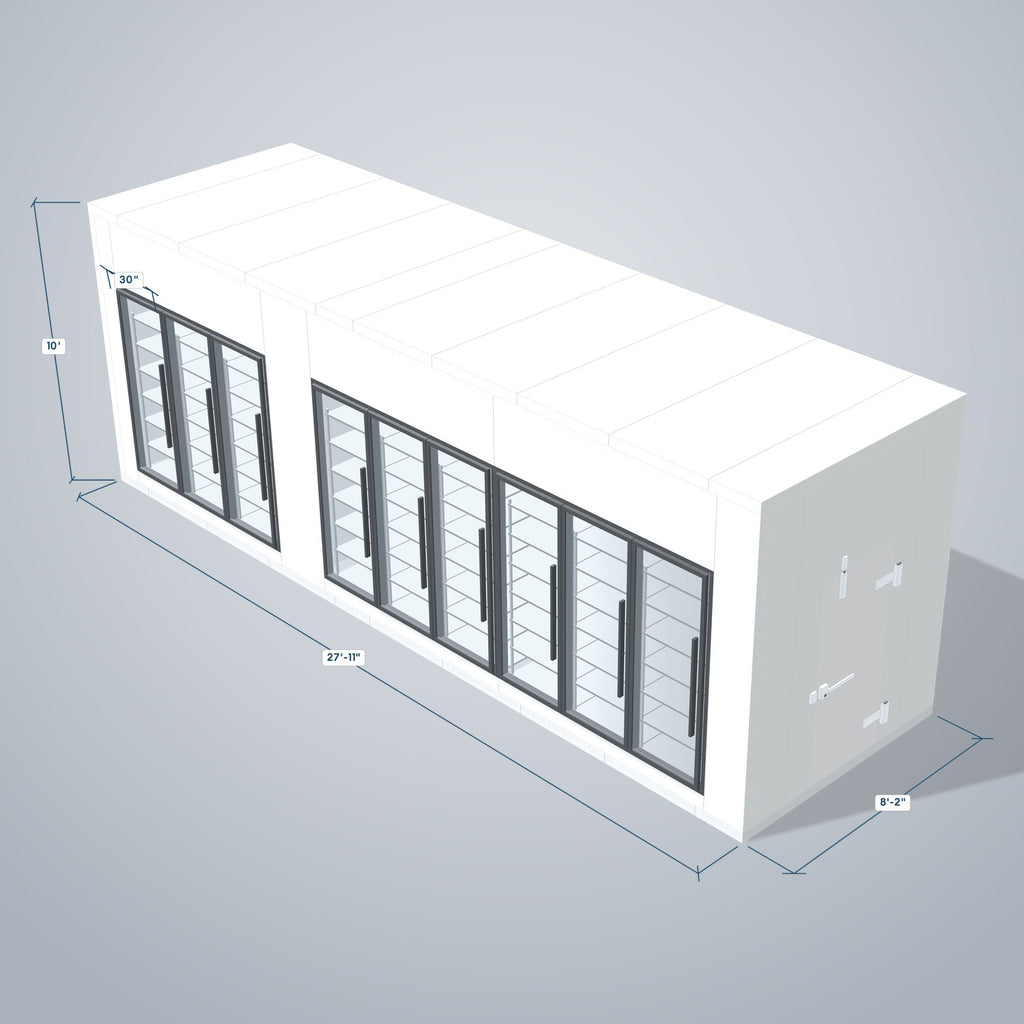

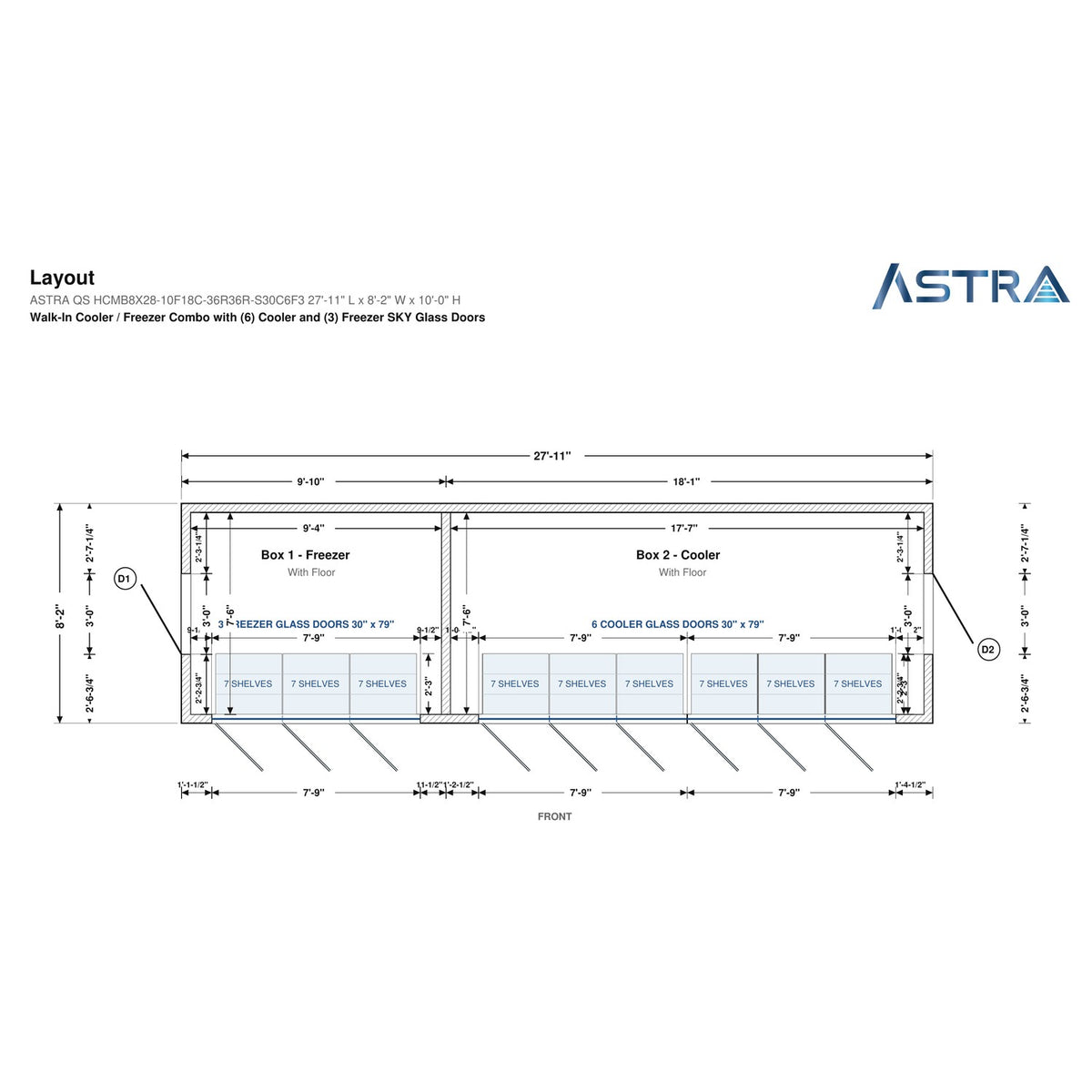

Built for convenience stores, grocery and specialty markets that sell frozen foods and cold drinks from one walk-in. This Astra Tall line combo is 8' x 28' nominal (8'-2" x 27'-11" outside, 10' high): a 9'-10" freezer room on the left with 3 Astra SKY freezer glass doors and a 18'-1" cooler room on the right with 6 cooler glass doors, a 36" x 77" service door for each room, an insulated floor and 4" foamed-in-place panels. Refrigeration is not included; add top mount or remote refrigeration for both rooms with the Refrigeration option on this page.

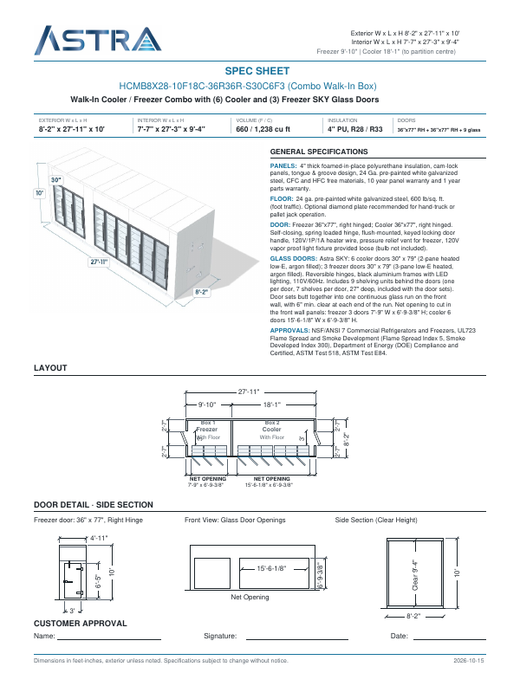

Measure the space, including ceiling height and the delivery path. Dimensions are from the Astra spec sheet; field verify before ordering.
3 freezer doors with 3-pane low-E heated glass and 6 cooler doors with 2-pane heated low-E glass, all argon filled, with black aluminum frames, LED lighting and reversible hinges.
9 shelving units behind the doors, one per door, each with 7 shelves 27" deep, come with the glass door sets.
Foamed-in-place polyurethane (R33 freezer, R28 cooler), cam-lock tongue-and-groove panels in 24 ga. pre-painted white galvanized steel; CFC and HFC free.
The 30" x 79" glass doors need the Astra Tall line; inside clear height is 9'-4".

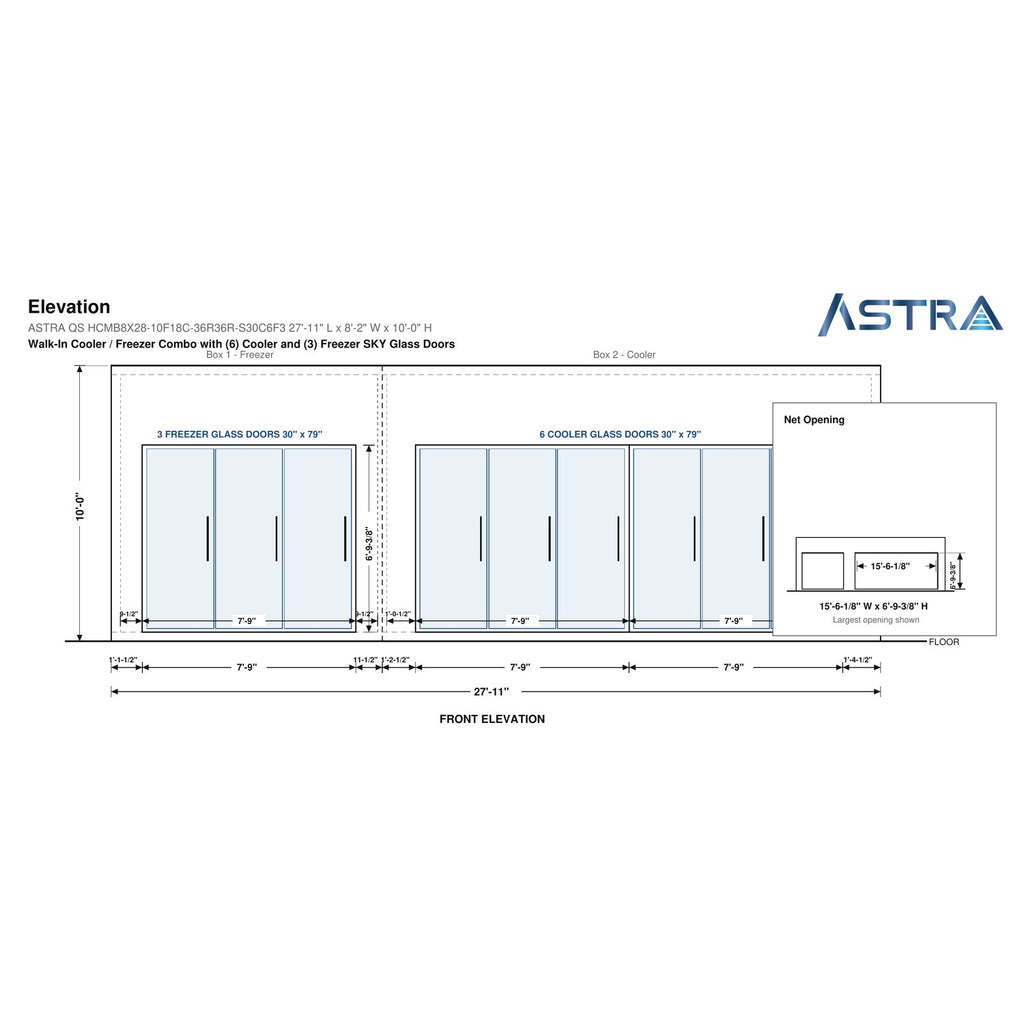

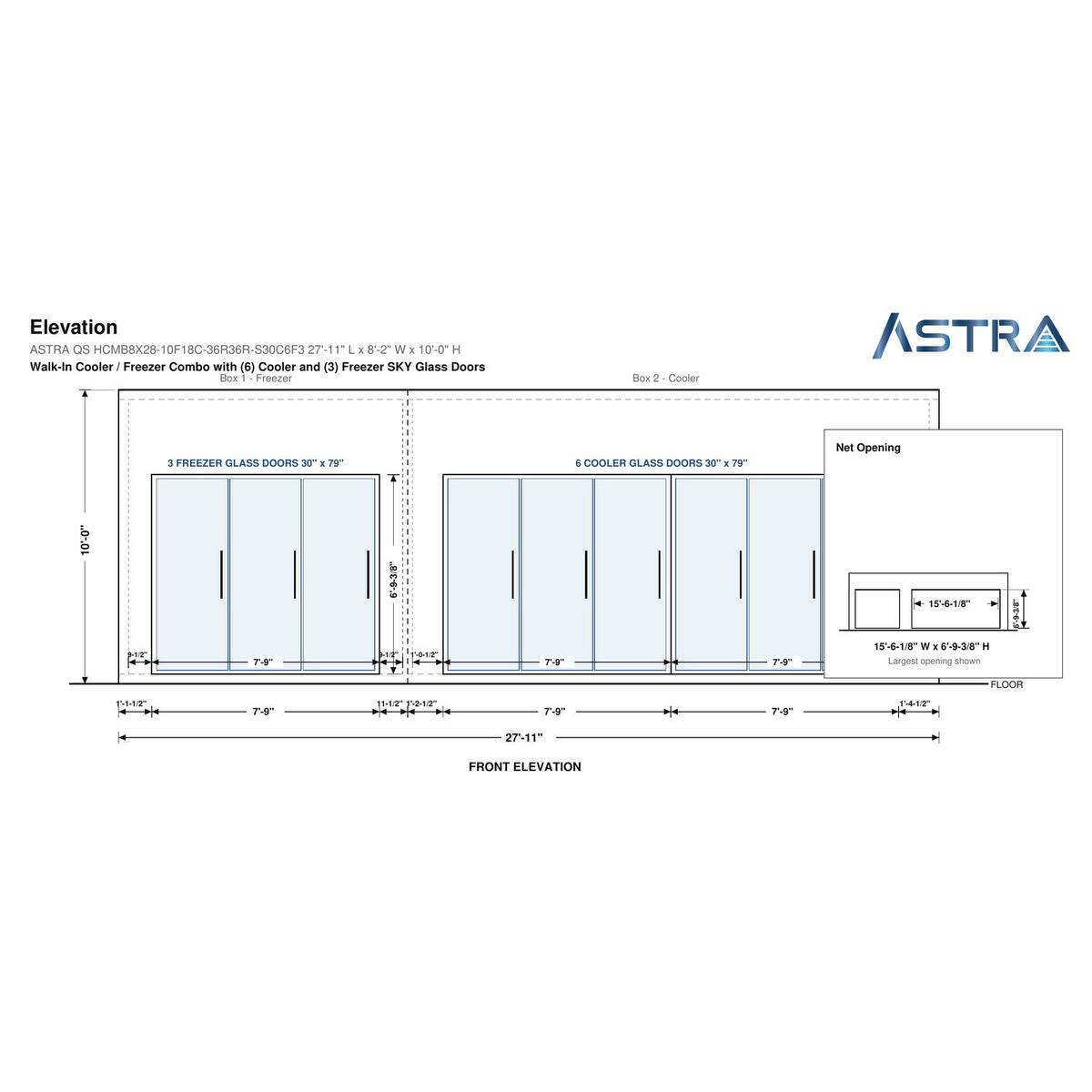

No. The box ships as standard Astra Quick Ship cam-lock panels and the installer cuts the net openings (freezer 7'-9" W x 6'-9-3/8" H, cooler 15'-6-1/8" W x 6'-9-3/8" H) in the front wall panels on site. Each room's door sets keep at least 6" clear at each end of the run.
The glass door sets include 9 shelving units behind the doors, one per door, each with 7 shelves 27" deep.
No, this is the combo box with glass doors only. Use the Refrigeration option on this page to add top mount or remote refrigeration sized for both rooms with their glass doors.
The box is 10' high outside.
The 24 ga. steel floor is rated 600 lb/sq. ft. for foot traffic. For hand trucks or pallet jacks, add a diamond plate floor overlay.
Yes. Choose left or right hinge and a 30", 36" or 48" door above. Service doors go on a side wall, never on the glass wall.
Astra panels carry a 10 year panel warranty and a 1 year parts warranty.
Yes. Astra walk-ins are covered by our Best Price Guarantee. Call us with the quote you have.
