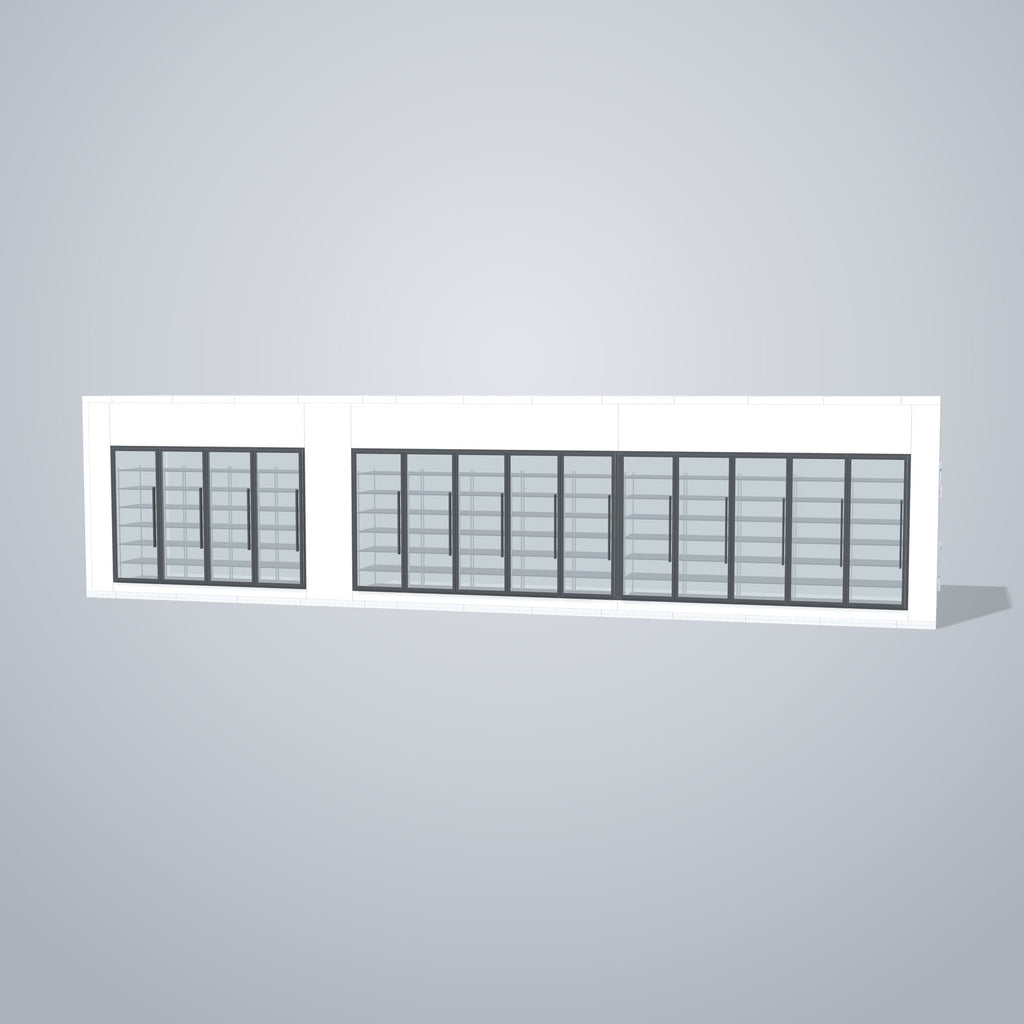

A freezer and cooler in one walk-in, with 4 freezer and 10 cooler glass doors on the front so customers shop frozen and cold from the same aisle.

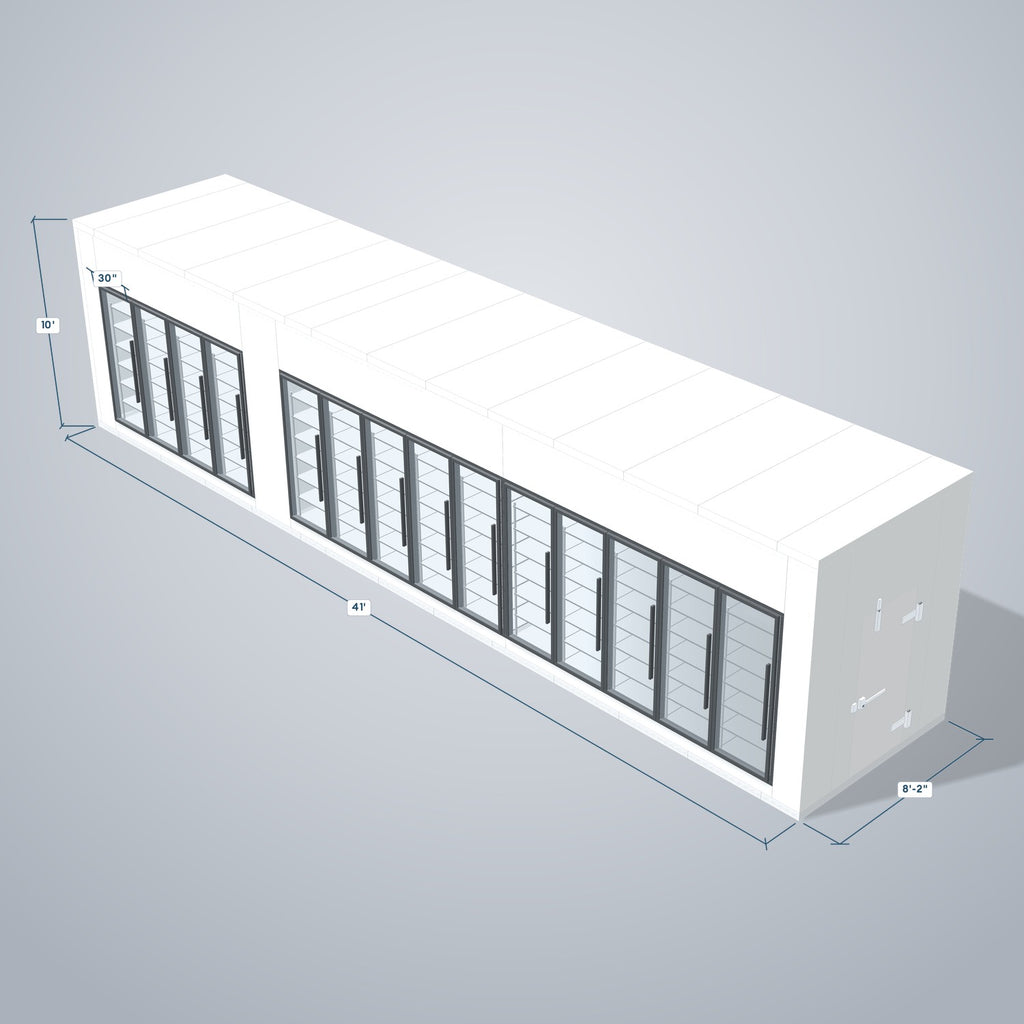

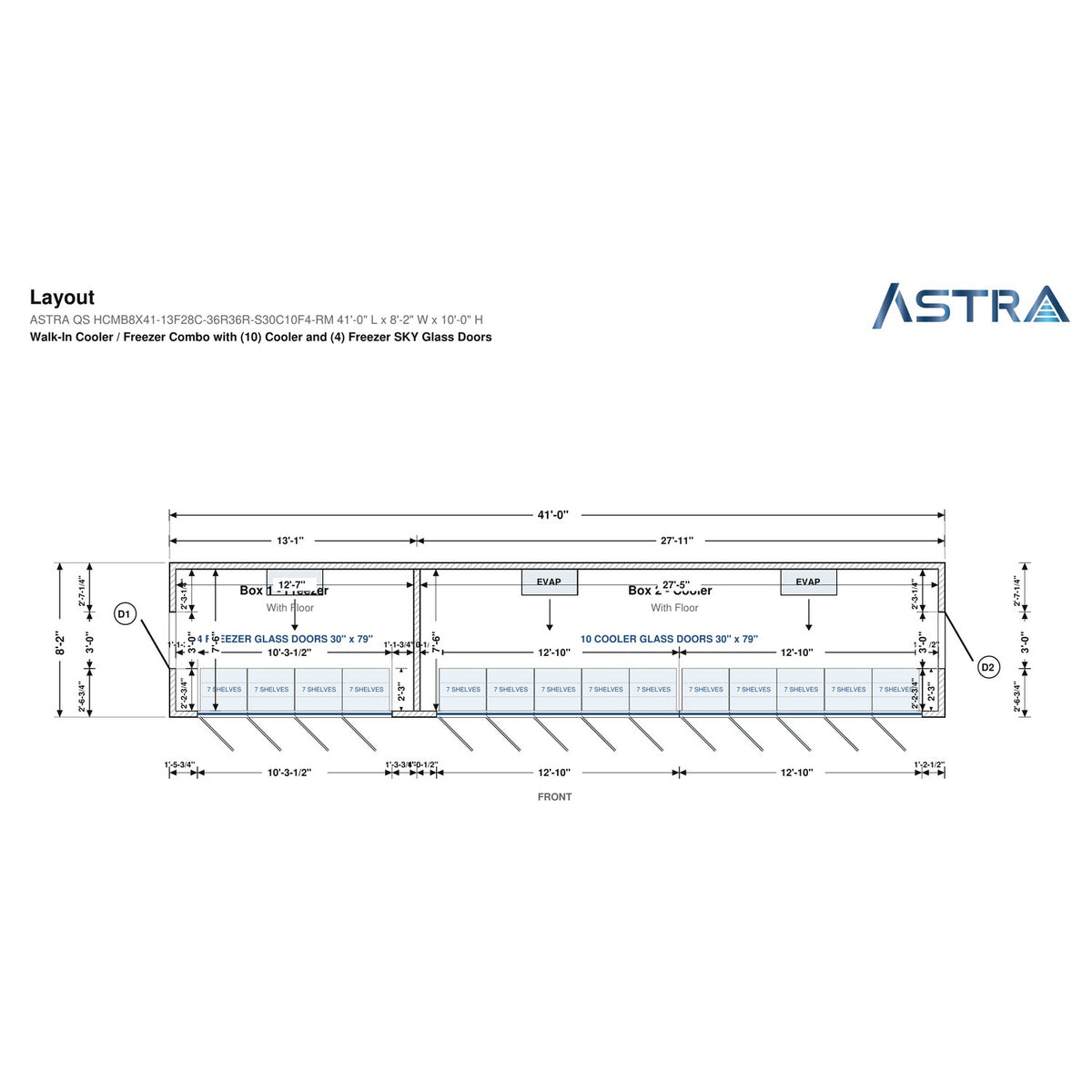

Built for convenience stores, grocery and specialty markets that sell frozen foods and cold drinks from one walk-in. This Astra Tall line combo is 8' x 41' nominal (8'-2" x 41' outside, 10' high): a 13'-1" freezer room on the left with 4 Astra SKY freezer glass doors and a 27'-11" cooler room on the right with 10 cooler glass doors, a 36" x 77" service door for each room, an insulated floor and 4" foamed-in-place panels. It comes with Turbo Air remote refrigeration, one system per room — freezer: Turbo Air TS055XR404A2A (Outdoor Condensing Unit, 5 HP, Low Temp, Air Cooled, 208/1Ph) condensing unit with 1 × Turbo Air LED176BENC evaporator (Electric Defrost, EC Motor, Pre-Assembled, Digital Controls, 4 Fans, 17,600 BTU/h); cooler: 2 × Turbo Air TS015MR404A2A (Outdoor Condensing Unit, 1.5 HP, Medium Temp, Air Cooled, 208/1Ph each) condensing units with 3 × Turbo Air ADR112AENC evaporators (Air Defrost, EC Motor, Pre-Assembled, Digital Controls, 2 Fans, 11,200 BTU/h).

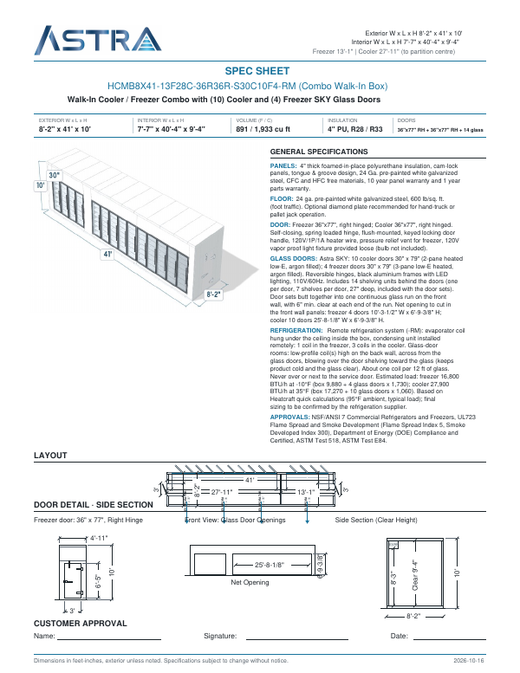

Measure the space, including ceiling height and the delivery path. Dimensions are from the Astra spec sheet; field verify before ordering.
4 freezer doors with 3-pane low-E heated glass and 10 cooler doors with 2-pane heated low-E glass, all argon filled, with black aluminum frames, LED lighting and reversible hinges.
14 shelving units behind the doors, one per door, each with 7 shelves 27" deep, come with the glass door sets.
Foamed-in-place polyurethane (R33 freezer, R28 cooler), cam-lock tongue-and-groove panels in 24 ga. pre-painted white galvanized steel; CFC and HFC free.
The 30" x 79" glass doors need the Astra Tall line; inside clear height is 9'-4".
One system per room: low-profile coils high on the back wall blow over the door shelving toward the glass; the condensing units install outside the box.

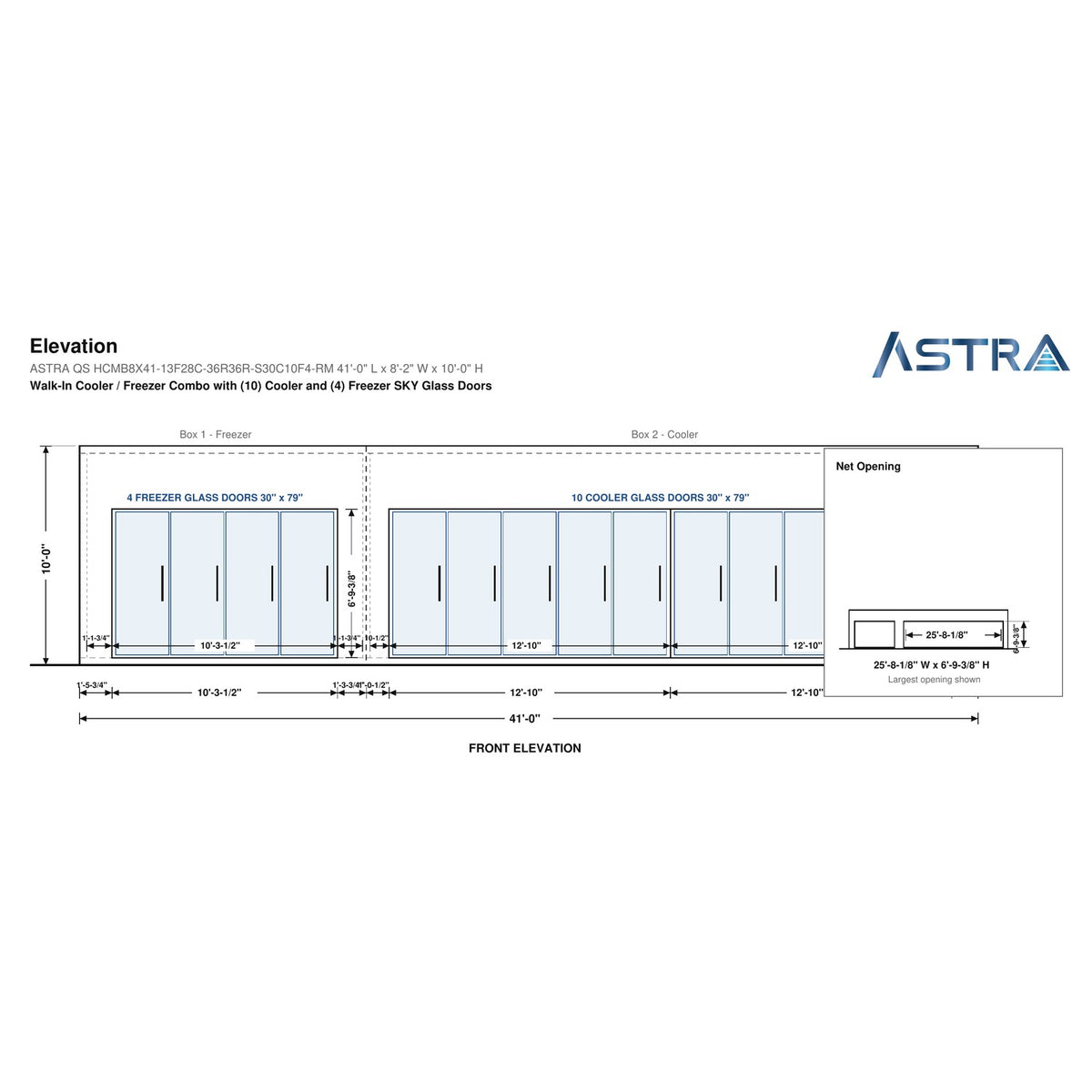

No. The box ships as standard Astra Quick Ship cam-lock panels and the installer cuts the net openings (freezer 10'-3-1/2" W x 6'-9-3/8" H, cooler 25'-8-1/8" W x 6'-9-3/8" H) in the front wall panels on site. Each room's door sets keep at least 6" clear at each end of the run.
The glass door sets include 14 shelving units behind the doors, one per door, each with 7 shelves 27" deep.
Yes. This listing includes Turbo Air remote refrigeration, one system per room — freezer: Turbo Air TS055XR404A2A (Outdoor Condensing Unit, 5 HP, Low Temp, Air Cooled, 208/1Ph) condensing unit with 1 × Turbo Air LED176BENC evaporator (Electric Defrost, EC Motor, Pre-Assembled, Digital Controls, 4 Fans, 17,600 BTU/h); cooler: 2 × Turbo Air TS015MR404A2A (Outdoor Condensing Unit, 1.5 HP, Medium Temp, Air Cooled, 208/1Ph each) condensing units with 3 × Turbo Air ADR112AENC evaporators (Air Defrost, EC Motor, Pre-Assembled, Digital Controls, 2 Fans, 11,200 BTU/h). A refrigeration technician must run the lines and connect them.
The box is 10' high outside.
The 24 ga. steel floor is rated 600 lb/sq. ft. for foot traffic. For hand trucks or pallet jacks, add a diamond plate floor overlay.
Yes. Choose left or right hinge and a 30", 36" or 48" door above. Service doors go on a side wall, never on the glass wall.
Astra panels carry a 10 year panel warranty and a 1 year parts warranty.
Yes. Astra walk-ins are covered by our Best Price Guarantee. Call us with the quote you have.
