A walk-in cooler with a 4-door glass merchandiser front, so customers grab drinks from the glass while you stock from inside.

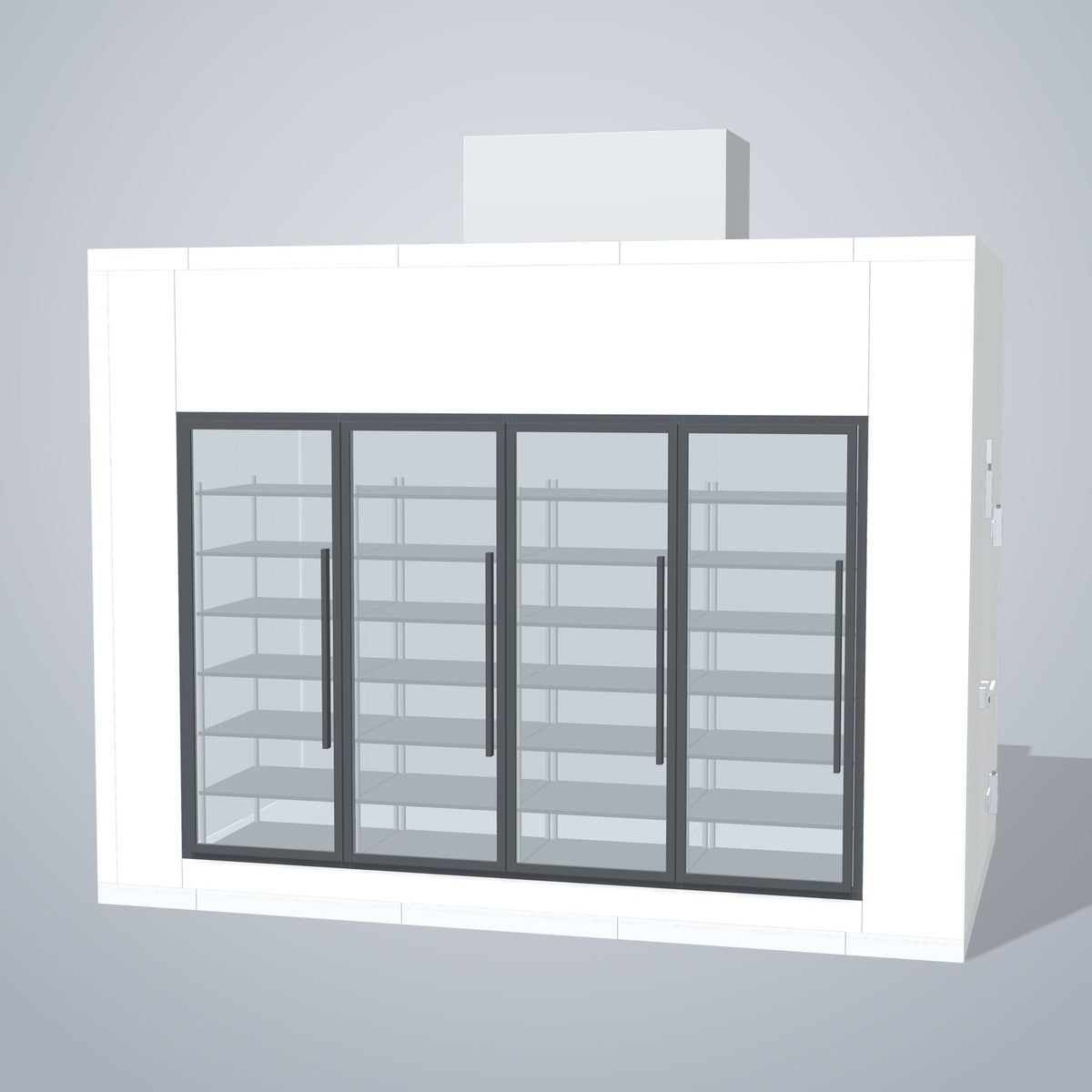

Built for convenience stores, beer and liquor stores, delis and markets that sell cold drinks from a walk-in. This Astra Tall line box is 8' x 13' nominal (8'-2" x 13'-1" outside, 10' high) with 4 Astra SKY 30" x 79" glass doors on the front wall, a 36" x 77" service door on the side wall, an insulated floor and 4" foamed-in-place panels. It comes with Turbo Air STI110MP2 top mount refrigeration unit (Indoor Package Unit, Medium Temp, 10,000 BTU, 208/1Ph), mounted on the roof with the evaporator section through the ceiling.
Measure the space, including ceiling height and the delivery path. Dimensions are from the Astra spec sheet; field verify before ordering.
4 Astra SKY doors with 2-pane heated low-E argon-filled glass, black aluminum frames, LED lighting and reversible hinges.
4 shelving units behind the doors, one per door, each with 7 shelves 27" deep, come with the glass door set.
Foamed-in-place polyurethane, R28, cam-lock tongue-and-groove panels in 24 ga. pre-painted white galvanized steel; CFC and HFC free.
The 30" x 79" glass doors need the Astra Tall line; inside clear height is 9'-4".
A self-contained unit sits on the roof at the back of the box, blowing across the door shelving toward the glass.
No. The box ships as standard Astra Quick Ship cam-lock panels and the installer cuts the net opening (10'-3-1/2" W x 6'-9-3/8" H) in the front wall panels on site. The door sets butt together into one glass run with at least 6" clear at each end.
The glass door set includes 4 shelving units behind the doors, one per door, each with 7 shelves 27" deep.
Yes. This listing includes Turbo Air STI110MP2 top mount refrigeration unit (Indoor Package Unit, Medium Temp, 10,000 BTU, 208/1Ph), mounted on the roof with the evaporator section through the ceiling.
The box is 10' high outside. With top mount refrigeration it is 12'-1" overall, and the unit needs 24" clear above it for service.
The 24 ga. steel floor is rated 600 lb/sq. ft. for foot traffic. For hand trucks or pallet jacks, add a diamond plate floor overlay.
Yes. Choose left or right hinge and a 30", 36" or 48" door above. The service door goes on a side wall, never on the glass wall.
Astra panels carry a 10 year panel warranty and a 1 year parts warranty.
Yes. Astra walk-ins are covered by our Best Price Guarantee. Call us with the quote you have.
