Description

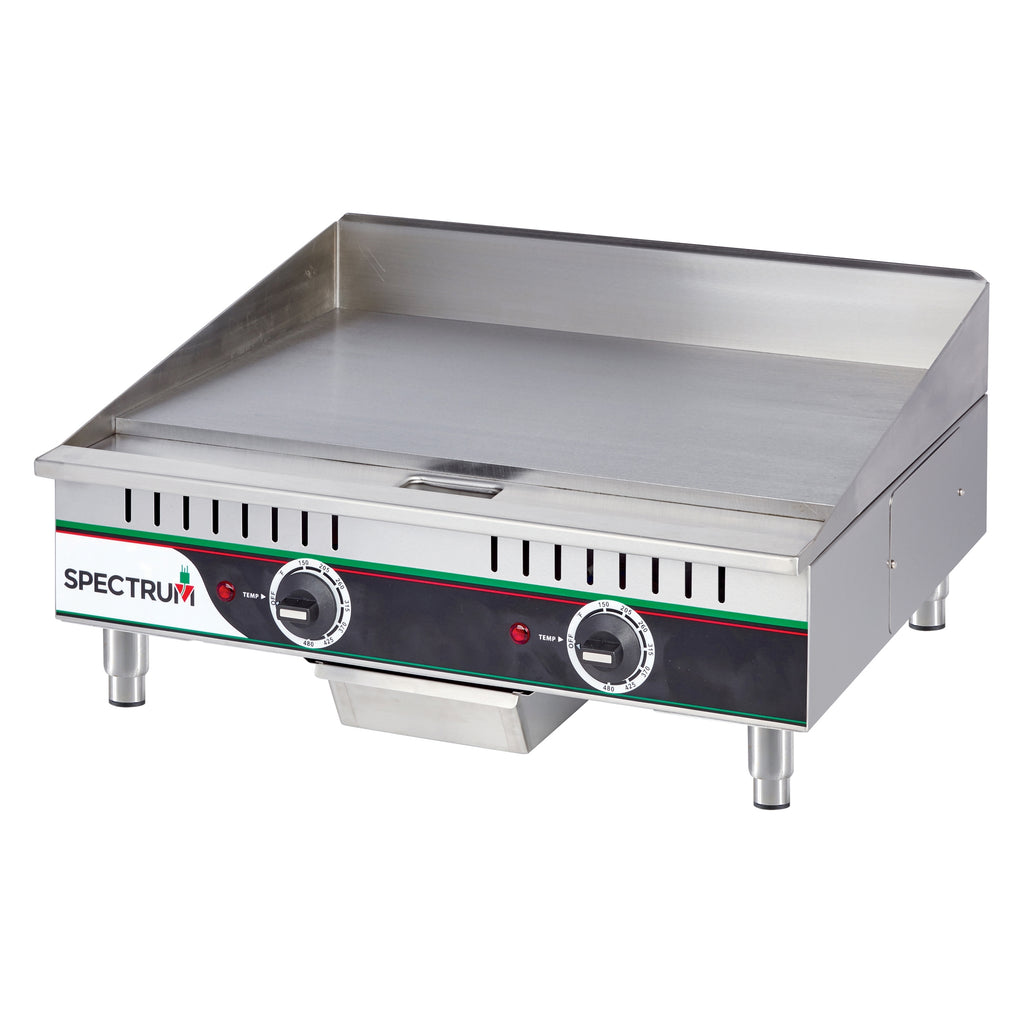

Winco EGD-24M — 24" Spectrum Countertop Electric Griddle w/ 24" x 16.5" Steel Surface, 208/240V
The Winco EGD-24M 24" Spectrum Countertop Electric Griddle w/ 24" x 16.5" Steel Surface, 208/240V is part of Atlantic’s commercial electric griddles selection. Width: 24 in. Depth: 21.7 in. Height: 12.9 in.
Product Highlights
- Solid 1/2” thick polished steel plate for fast heat up and high heat retention
- Heavy gauge stainless steel body, and sloped side & 3” backsplash
- Large volume removable grease drawer with weep hole and baffle
- Heavy duty, stainless steel adjustable legs for stability
- Compatible for 1-phase or 3-phase operation (field convertible EGD-24M & EGD-36M)
- 3-1/4” full width grease trough
- Description : 24” Griddle, 2 Heat Zones
- Overall Dimensions : 24" x 21-¾" x 12-7/8"
- Power : 208/240V~ 50/60 Hz, 4200/5600W, 20.2/23.4A, 1-phase
- Ship Weight : 116.84 lbs (53 kg)
- Other Details : See spec. sheet
Technical Specifications
| Manufacturer | Winco |
|---|---|
| Model Number | EGD-24M |
| Listed Weight | 116.84 lbs |
| Width | 24 in. |
| Depth | 21.7 in. |
| Height | 12.9 in. |
| Installation Type | countertop |
| Griddle Style | flat top (standard) |
| Griddle Plate Finish | smooth steel |
| Control Type | manual |
| Exterior Finish | all stainless steel exterior |
| Voltage | 208/240 |
| Certifications | cETLus, ETL-Sanitation |
| Cooking Surface Width | 24" |
| Cooking Surface Depth | 16.5" |
Installation and Setup
Confirm the listed dimensions, power supply and installation requirements for your location. Follow the manufacturer’s instructions for setup, operation and maintenance.
Documents and Downloads
Available product resources: Spec Sheet, Warranty. Use the document links on this page to view or download the files.
