Description
Mix dough, batters and whipped toppings in a 10 quart bowl on a standard 120V outlet.

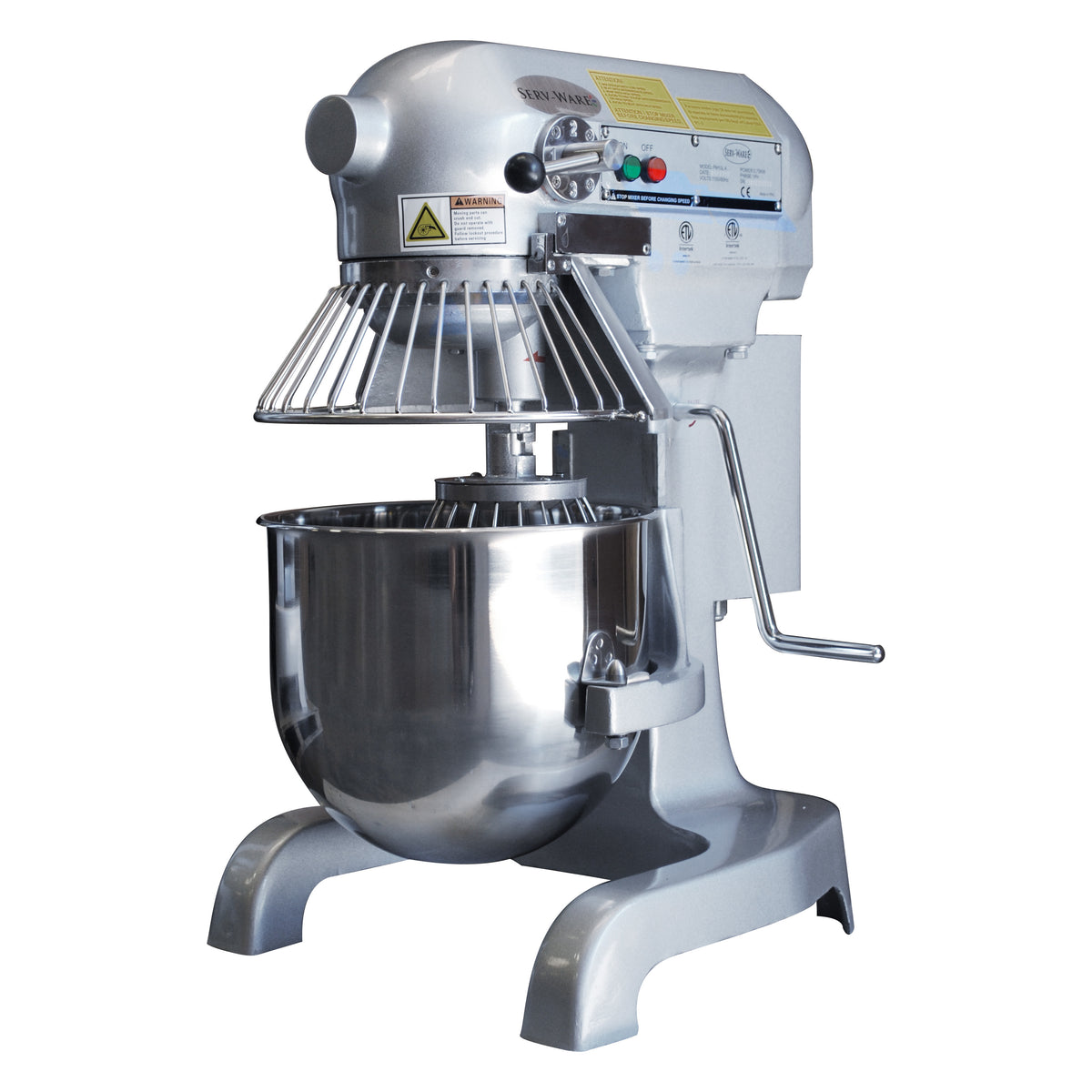

The Serv-Ware PM10LA is a 10 quart gear-driven planetary mixer for pizzerias, bakeries, cafés and restaurants. A 1 HP motor drives a high-torque, permanently lubricated transmission with heat-treated steel gears through three speeds (108 / 195 / 355 RPM). It has a rigid cast iron body, a safety-interlocked stainless bowl guard and bowl lift, and thermal overload protection. It plugs into a standard 120V outlet and comes with a dough hook, beater and wire whip.
Will it fit · Will it plug in
- Outside size
- 20" W × 19" D × 28" H (spec table; the drawing shows about 15.08" W × 18.31" D × 24.09" H)
- Bowl
- 10 quarts; max flour 4.5 lbs. (the same sheet also says 4 lbs.); max dough 7 lbs.
- Power
- 120V, 60 Hz, 1-phase, 6.25 amps, 1 HP motor, NEMA 5-15P plug
- Shipping weight
- 100 lbs
Plugs into a standard 120V outlet. Check the height under shelves or cabinets: the spec table lists 28" overall height. Set it on a sturdy table or mixer stand rated for its weight.
Gear-driven transmission
High-torque gear drive with heat-treated hardened steel alloy gears and shafts, permanently lubricated.
Three speeds
108 / 195 / 355 RPM for mixing, beating and whipping.
Safety built in
Safety-interlocked stainless steel bowl guard and bowl lift, plus thermal overload protection.
Three tools included
Dough hook, beater and wire whip come with the mixer.
Delivery and setup
- Free shipping on this item. See our shipping policy for delivery details.
- Usually ships in 1 business day.
- Covered by our Best Price Guarantee.
- Ships by freight.
- Serv-Ware asks you to inspect all components on arrival and notify the carrier of any damage before signing.
Questions buyers ask
What outlet does it need?
A standard 120V outlet. It has a NEMA 5-15P plug and draws 6.25 amps.
How much dough can it mix?
Serv-Ware lists a 10 quart bowl with up to 4.5 lbs. (the same sheet also says 4 lbs.) of flour and 7 lbs. of dough.
What comes with it?
The 10 quart bowl, a dough hook, a beater and a wire whip.
Is it NSF or ETL listed?

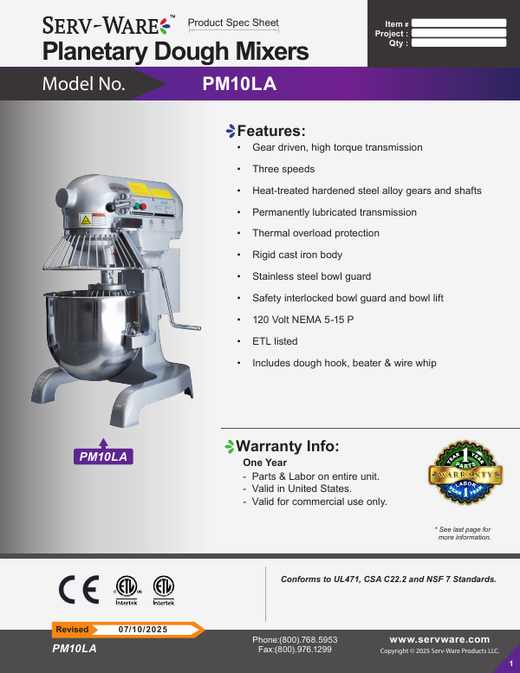

The spec sheet carries CE, cETLus and ETL Sanitation marks (Intertek).

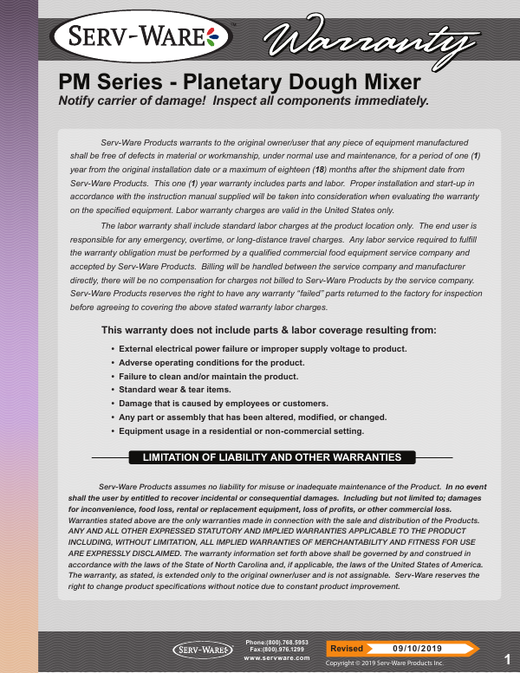

What does the warranty cover?
Serv-Ware covers parts and labor on the entire unit for 1 year from installation, up to 18 months from shipment, in the US and for commercial use only.
When will it ship, and do you match lower prices?
It usually ships in 1 business day, shipping is free on this item, and it is covered by our Best Price Guarantee. Call (201) 467-8222 if you find a lower price.
Specs
| Manufacturer | Serv-Ware |
|---|---|
| Model Number | PM10LA |
| Quantity | 1/Each |
| Shipping Weight | 100 lb. |
| Width | 20 Inches |
| Depth | 19 Inches |
| Height | 28 Inches |
| Voltage | 120 Volts |
| Amps | 6.25 Amps |
| Hertz | 60 Hz |
| Phase | 1 Phase |
| Plug Type | NEMA 5-15P |
| Motor | 1 HP |
| Bowl Capacity | 10 Quarts |
| Max Flour | 4.5 lbs.4 lbs. (Sheet Lists Both) |
| Max Dough | 7 lbs. |
| Speeds | 3108 / 195 / 355 RPM |
| Transmission | Gear Driven, High Torque, Permanently Lubricated |
| Included Tools | Dough HookFlat BeaterWire Whip |
| Body | Rigid Cast Iron |
| Bowl Guard | Stainless Steel, Safety Interlocked |
| Bowl Lift | Safety Interlocked |
| Protection | Thermal Overload |
| Certifications | cETLus, ETL Sanitation, CE |
| Warranty | 1 Year Parts & Labor (Entire Unit) |
| Usage | Commercial Use Only |
