Description
Hold a set griddle temperature from 200°F to 500°F across a 24" cooking plate.

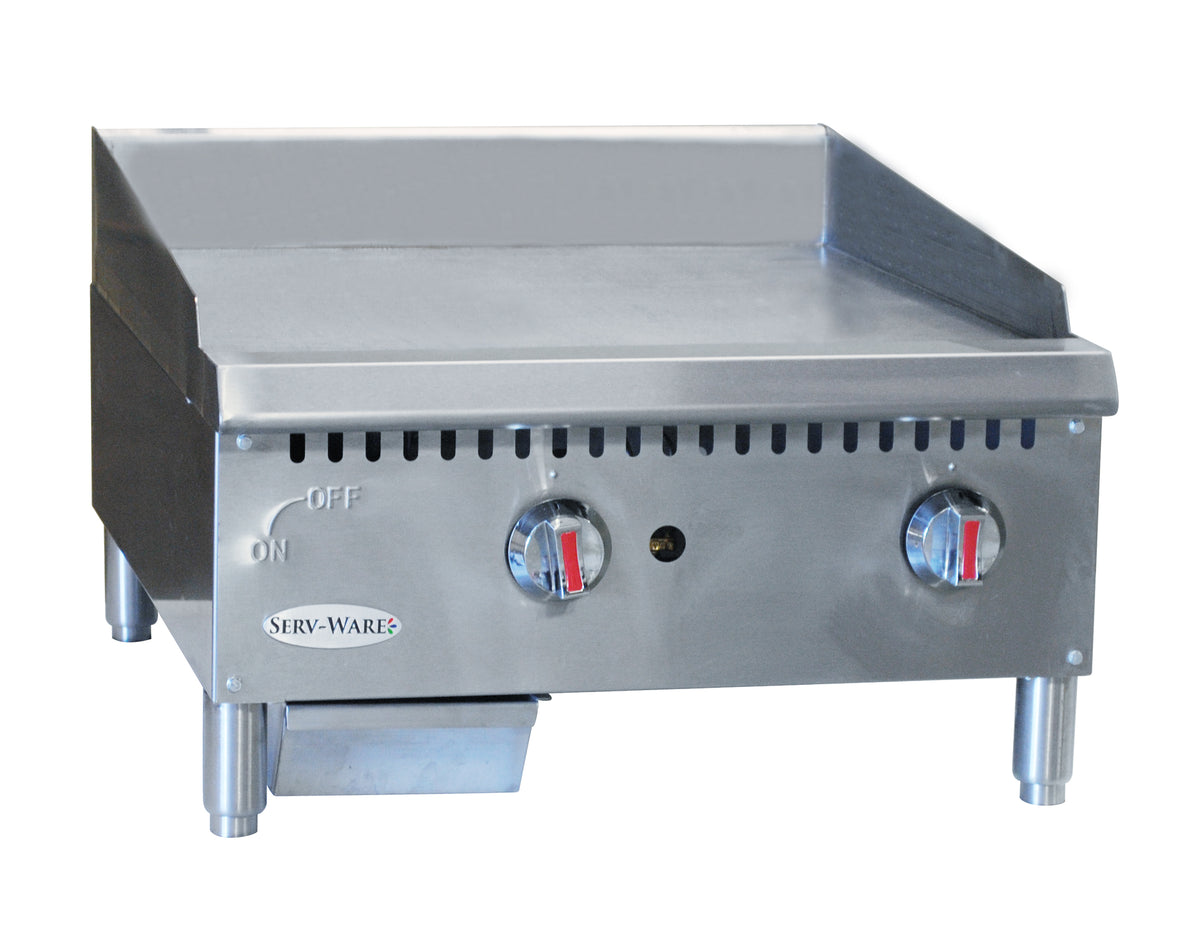

The Serv-Ware STGS-24 is a 24" countertop gas griddle for restaurants, diners and cafes. It has two cast iron H-shape burners at 30,000 BTU each (60,000 BTU/hr total), a 3/4" thick steel griddle plate and thermostatic control from 200°F to 500°F. It is built for natural gas with an LP conversion kit and regulator included, and the spec sheet carries the Intertek cETLus and ETL Sanitation marks.
Will it fit · Will it hook up
- Outside size
- 23.98" W × 29.96" D × 16.22" H, on adjustable stainless steel legs
- Gas
- Natural Gas, 3/4" gas line; LP conversion kit and regulator included (natural gas 4" W.C., LP 10" W.C.)
- Total input
- 60,000 BTU/hr (2 burners × 30,000)
- Shipping weight
- 225 lbs
Check the counter or equipment stand depth (29.96") and leave room for the gas connection at the back. Plan for a ventilation hood as your local code requires. Serv-Ware does not publish clearances to combustible walls on the spec sheet.
2 × 30,000 BTU burners
Cast iron H-shape burners, 60,000 BTU/hr in total (2 burners × 30,000), with a standby pilot for easy start.
3/4" griddle plate
3/4" thick steel griddle plate.
Thermostatic control
Thermostatic control holds the plate at a set temperature from 200°F to 500°F.
Splash and drip tray
Fully welded stainless back and side splash and a removable stainless steel drip tray.
Stainless build
Stainless steel front and sides, adjustable heavy duty stainless legs and chrome-coated zinc alloy knobs.
Natural gas or LP
Ships for natural gas with an LP conversion kit and regulator included.
Delivery and setup
- Free shipping on this item. See our shipping policy for delivery details.
- Usually ships in 1 business day.
- Covered by our Best Price Guarantee.
- Gas hookup and any fuel conversion must be done by a qualified gas installer; the warranty excludes improper conversion and incorrect gas pressure.
- Inspect the shipment before signing for it.
Questions buyers ask
Does it run on propane?
It ships for natural gas with an LP conversion kit and regulator included. Have a qualified gas technician convert it; LP runs at 10" W.C. and natural gas at 4" W.C.
What gas connection does it need?
A 3/4" gas line. Total input is 60,000 BTU/hr (2 burners × 30,000), so size the gas supply for that load.
What temperature range does it have?
The thermostats run from 200°F to 500°F.
Will it fit on my counter?
It is 23.98" wide, 29.96" deep and 16.22" high on adjustable legs, and ships at 225 lbs. Use a counter or stand rated for the weight and suitable for hot equipment.
Do I need a hood?
Commercial gas griddles are installed under a ventilation hood in most jurisdictions. Check with your local code official and installer.
Is it ETL listed?

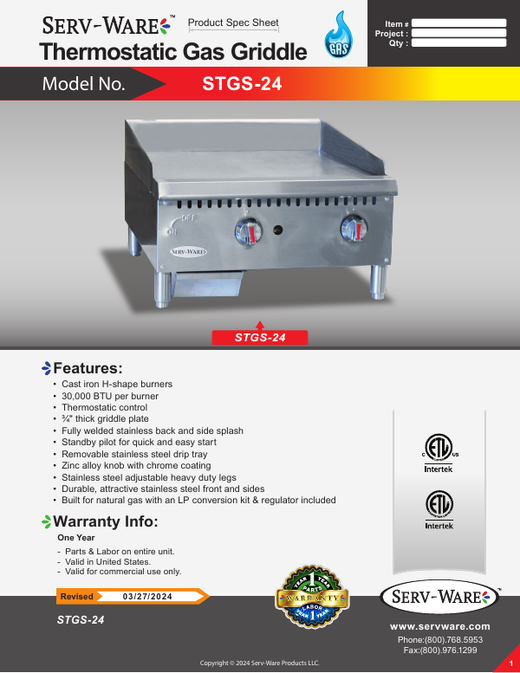

The spec sheet carries the Intertek cETLus and ETL Sanitation marks.
What does the warranty cover?

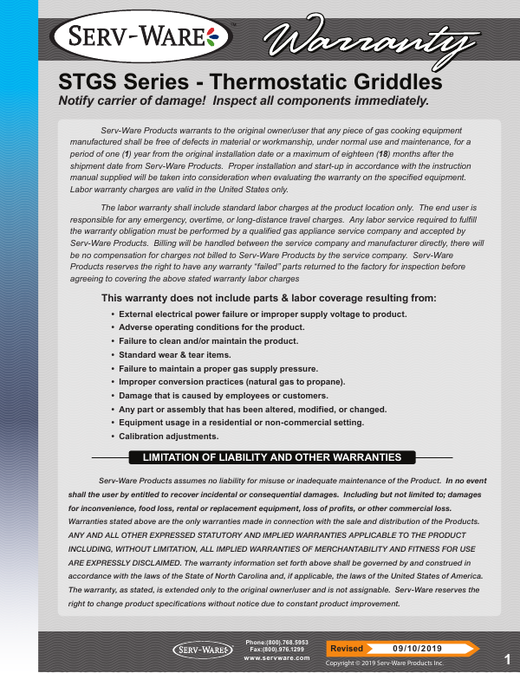

Serv-Ware covers parts and labor on the entire unit for 1 year from installation (up to 18 months from shipment), in the United States and for commercial use only. Labor must be done by a qualified gas appliance service company accepted by Serv-Ware.
When will it ship, and do you match lower prices?
It usually ships in 1 business day, shipping is free on this item, and it is covered by our Best Price Guarantee. Call (201) 467-8222 if you find a lower price.
Specs
| Manufacturer | Serv-Ware |
|---|---|
| Model Number | STGS-24 |
| Quantity | 1/Each |
| Shipping Weight | 225 lb. |
| Width | 23.98 Inches |
| Depth | 29.96 Inches |
| Height | 16.22 Inches |
| Legs | Adjustable Heavy Duty Stainless Steel |
| Gas Type | Natural GasLP Conversion Kit and Regulator Included |
| Gas Line | 3/4 Inch |
| Gas Pressure | 4 in. W.C. (Natural Gas)10 in. W.C. (LP) |
| Number of Burners | 2 |
| Burner BTU | 30,000 BTU/H Each |
| Total BTU | 60,000 BTU/H (2 x 30,000) |
| Burner Type | Cast Iron H-Shape |
| Pilot | Standby Pilot |
| Griddle Plate | 3/4" Thick Steel |
| Controls | Thermostatic |
| Temperature Range | 200 - 500 Degrees F |
| Grease | Removable Stainless Steel Drip Tray |
| Exterior | Stainless Steel Front and SidesFully Welded Stainless Back and Side Splash |
| Knobs | Zinc Alloy with Chrome Coating |
| Certifications | cETLus, ETL Sanitation |
| Warranty | 1 Year Parts & Labor (Entire Unit) |
| Usage | Commercial Use Only |
