Description
6 burners and a convection oven in one 36" footprint for a busy line.

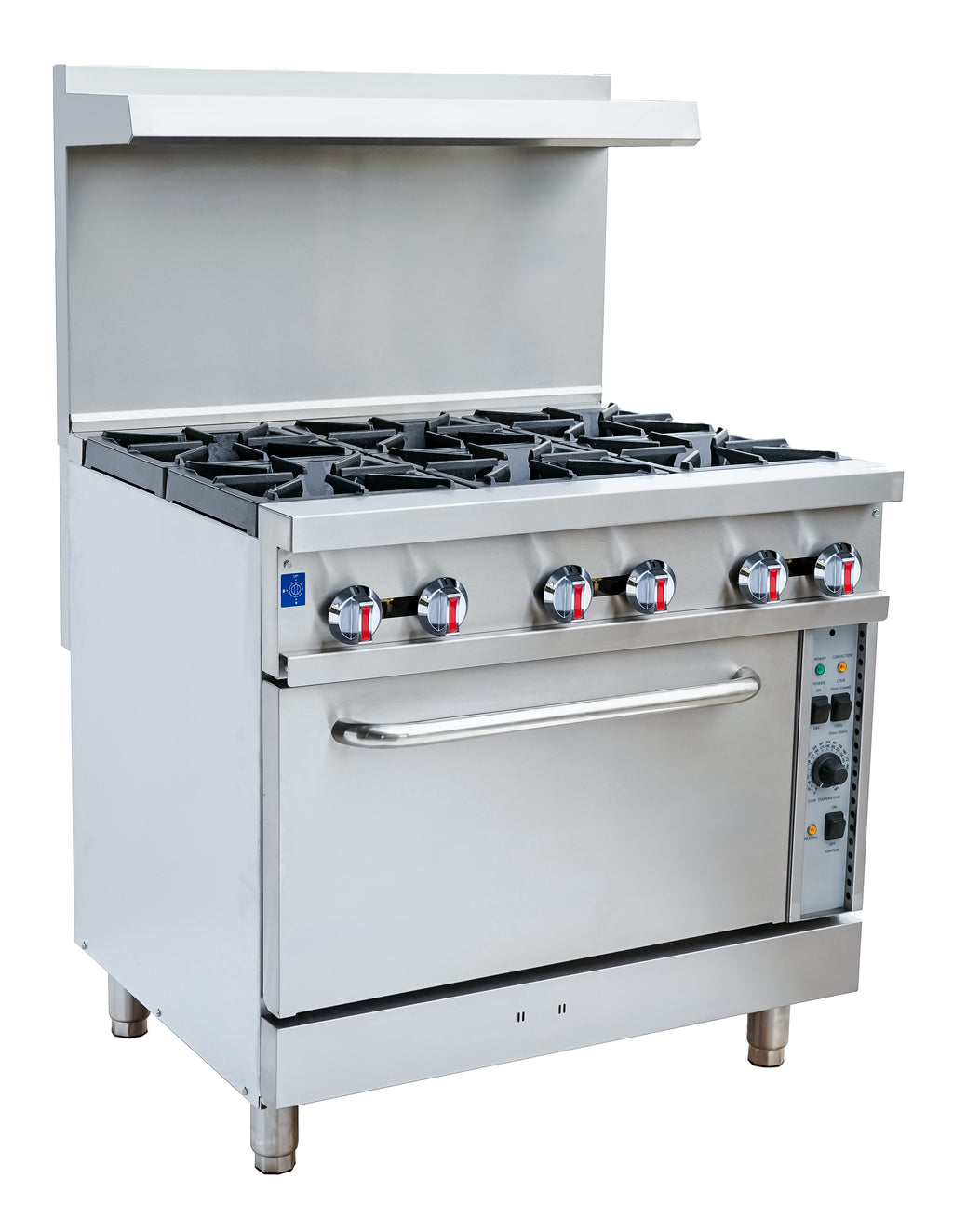

The Serv-Ware SGR-6B-C is a 36" gas restaurant range for restaurants, diners and institutional kitchens. It has 6 open burners at 30,000 BTU each under removable 12" x 12" heavy duty cast grates, and a convection oven with a 31,000 BTU U-shaped burner that runs from 250°F to 500°F and takes a full-size sheet pan side-to-side or front-to-back. The convection fan needs a 120V connection. It carries cETLus, ETL Sanitation and NSF marks.
Will it fit · Will it hook up
- Outside size
- 36" W × 35" D × 60" H (to the top of the high shelf)
- Gas
- 3/4" NPT gas connection; 4" W.C. natural gas / 10" W.C. LP. The SGR-6B-C sheet does not say which gas it ships for or whether a conversion kit is included; call (201) 467-8222 to confirm before ordering
- Total input
- 211,000 BTU/hr (6 burners × 30,000 + oven 31,000)
- Electrical
- 120V, 60 Hz, 1-phase for the convection fan; amps and plug type are not listed, call (201) 467-8222 to confirm before ordering
- Oven
- Convection, 250°F to 500°F; full-size sheet pan fits side-to-side or front-to-back
- Shipping weight
- 368 lbs
Measure doorways and turns on the delivery path; its smallest outside dimension is the 35" depth. Plan a 3/4" gas connection and a ventilation hood as your local code requires. Serv-Ware does not publish clearances to combustible walls.
6 × 30,000 BTU burners
Open burners with removable 12" x 12" heavy duty cast grates; covered pilots and burner covers keep spills from clogging them.
Convection oven
A 31,000 BTU U-shaped burner and a fan from 250°F to 500°F; full-size sheet pans fit either way.
Heavy duty build
Fully welded frame; stainless steel front and back riser; galvanized sides; durable stainless steel pilot.
Easy cleaning
Pull-out crumb tray with rounded edges and removable cast grates.
Level on any floor
6" adjustable heavy duty stainless steel legs.
Delivery and setup
- Free shipping on this item. See our shipping policy for delivery details.
- Usually ships in 1 business day.
- Covered by our Best Price Guarantee.
- Ships by freight.
- Gas hookup and any conversion should be done by a qualified gas installer; the warranty excludes improper conversion and incorrect gas pressure.
- Serv-Ware asks you to inspect all components on arrival and notify the carrier of any damage before signing.
Questions buyers ask
Is it natural gas or propane?
The SGR-6B-C sheet lists pressures for both (4" W.C. natural gas, 10" W.C. LP) but does not say which gas it ships for or whether a conversion kit is included. Call (201) 467-8222 to confirm before ordering.
What gas connection does it need?
A 3/4" gas line. Total input is 211,000 BTU/hr, so size the gas supply for that load.
Does it need electricity?
Yes. The convection oven needs 120V, 60 Hz, single-phase power. Serv-Ware does not list amps or plug type; call (201) 467-8222 to confirm before ordering.
Will a full-size sheet pan fit in the oven?
Yes. A full-size sheet pan fits side-to-side or front-to-back, and the thermostat runs from 250°F to 500°F.
Will it fit through my door?
The range is 36" wide, 35" deep and 60" high to the top of the high shelf, and ships at 368 lbs. Measure every doorway and turn; its smallest outside dimension is the 35" depth.
Do I need a hood?
Commercial gas ranges are installed under a ventilation hood in most jurisdictions. Check with your local code official and installer.

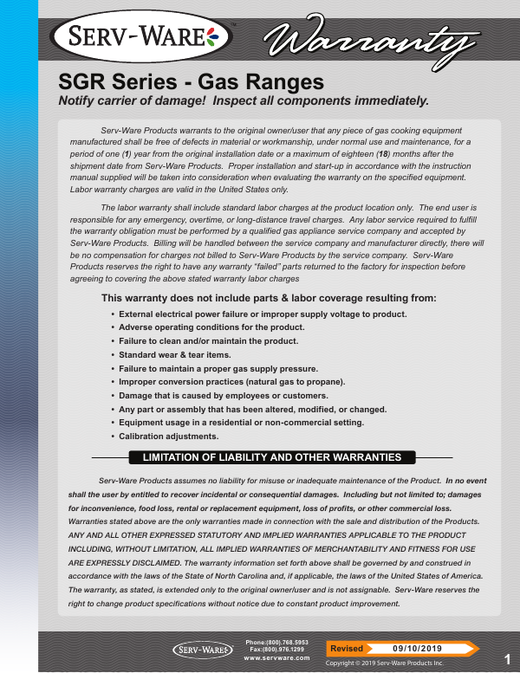

What does the warranty cover?
Serv-Ware covers parts and labor on the entire unit for 1 year from installation (up to 18 months from shipment), in the United States and for commercial use only. Labor must be done by a qualified gas appliance service company accepted by Serv-Ware.
When will it ship, and do you match lower prices?
It usually ships in 1 business day, shipping is free on this item, and it is covered by our Best Price Guarantee. Call (201) 467-8222 if you find a lower price.
Specs
| Manufacturer | Serv-Ware |
|---|---|
| Model Number | SGR-6B-C |
| Quantity | 1/Each |
| Shipping Weight | 368 lb. |
| Width | 36 Inches |
| Depth | 35 Inches |
| Height | 60 Inches |
| Legs | 6" Adjustable Stainless Steel |
| Gas Type | Natural Gas or LP (Confirm When Ordering) |
| Total BTU | 211,000 BTU/H |
| Gas Line | 3/4 Inch NPT |
| Gas Pressure | 4 in. W.C. (Natural Gas)10 in. W.C. (LP) |
| Burner BTU | 30,000 BTU/H Each |
| Oven BTU | 31,000 BTU/H (U-Shaped Burner) |
| Voltage | 120 Volts |
| Hertz | 60 Hz |
| Phase | 1 Phase |
| Amps / Plug | Not Listed (Call to Confirm) |
| Number of Burners | 6 Open Burners |
| Grates | Removable Heavy Duty Cast12" x 12" |
| Oven | Convection Oven |
| Oven Temperature Range | 250 - 500 Degrees F |
| Oven Capacity | Full-Size Sheet Pan, Side-to-Side or Front-to-Back |
| Pilots | CoveredStainless Steel |
| Crumb Tray | Pull-Out |
| Exterior | Stainless Steel Front and Back RiserGalvanized Sides |
| Frame | Fully Welded |
| Certifications | cETLus, ETL Sanitation, NSF |
| Warranty | 1 Year Parts & Labor (Entire Unit) |
| Usage | Commercial Use Only |
