Description
Keep proteins and prep cold right under the griddle or charbroiler.
The Serv-Ware CB36-HC is a 36" refrigerated chef base for restaurant cooking lines. It holds 5.1 cu. ft. at 33°F to 41°F in two drawers, and its stainless steel top carries up to 441 lbs. of countertop equipment. The top measures 38" wide. It plugs into a standard 115V outlet, is ETL Sanitation listed and carries a 3-year parts and labor warranty.
Will it fit · Will it plug in
- Outside size
- 38" W × 31.9" D × 25.6" H on casters (36" cabinet width under the top)
- Drawer clearance
- 57.9" deep with the drawers open
- Inside
- 5.1 cu. ft. in two drawers
- Top load
- Up to 441 lbs.
- Power
- 115V, 60 Hz, 1-phase, 2.1 amps, NEMA 5-15P plug
- Shipping weight
- 225 lbs
Measure every doorway and turn on the delivery path; the unit is 31.9" deep and 25.6" high. Serv-Ware specifies a climate-controlled room with good air circulation around the unit.
Holds 33°F to 41°F
The electronic thermostat and digital LED display give accurate control, with automatic defrost and automatic evaporation of condensation.
Built to carry your line
The stainless steel top is rated for 441 lbs., on a stainless steel framework with a stainless interior.
2 refrigerated drawers
5.1 cu. ft. of cold storage in two drawers with magnetic gaskets, right under the cooking line.
Efficient, listed cooling
A 1/5 HP system with R290 refrigerant delivers 900 BTU/h. The unit is ETL Sanitation and cETLus listed.
Delivery and setup
- Free shipping on this item. See our shipping policy for delivery details.
- Usually ships the next business day.
- Covered by our Best Price Guarantee.
- The casters ship uninstalled; attach them before moving the chef base into place.
- Inspect all components when the shipment arrives and note any damage with the carrier.
- Serv-Ware recommends installation by a certified commercial restaurant equipment installer.
Questions buyers ask
What outlet does it need?
It uses a NEMA 5-15P plug on 115V, 60 Hz, single phase, and draws 2.1 amps, so it plugs into a standard wall outlet.
How much weight can the top hold?
Serv-Ware rates the top for up to 441 lbs. Check the weight of the countertop equipment you plan to set on it, and follow that equipment's own installation and clearance instructions.
How tall is it, and will my equipment line up?
It stands 25.6" high on its casters, which leave 5.5" of clearance under the cabinet. The top is 38" wide and 31.9" deep, so measure the equipment that will sit on it before you order.
How much room do the drawers need?
With the drawers pulled out it needs 57.9" from the back of the unit, so leave about 26.0" clear in front. Measure every doorway and turn on the delivery path as well; it ships at 225 lbs.
What temperature does it hold?
It holds 33°F to 41°F. An electronic thermostat with a digital LED display sets and shows the temperature, it defrosts automatically every 6 hours, and condensation evaporates automatically.

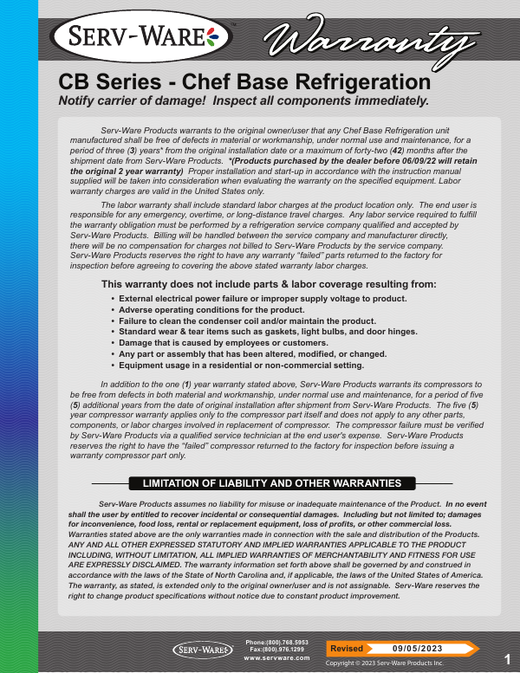

What does the warranty cover?
Serv-Ware lists 3 years of parts and labor on the entire unit and 5 years on the compressor (part only), in the United States and for commercial use. Serv-Ware also sells an optional extended warranty.
Can I use it outdoors or at home?
No. Serv-Ware designs it for commercial indoor use in a climate-controlled room with good air circulation, away from heat sources, and the warranty excludes residential use.
When will it ship, and do you match lower prices?
Serv-Ware items usually ship the next business day, shipping is free on this item, and it is covered by our Best Price Guarantee. Call (201) 467-8222 if you find a lower price.

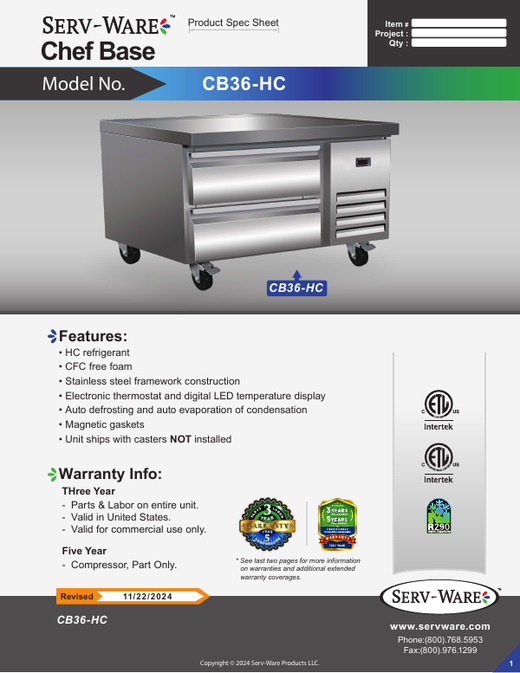

Specs
| Manufacturer | Serv-Ware |
|---|---|
| Model Number | CB36-HC |
| Quantity | 1/Each |
| Shipping Weight | 225 lb. |
| Width | 38 Inches |
| Cabinet Width | 36 Inches |
| Depth | 31.9 Inches |
| Height | 25.6 Inches (with Casters) |
| Cabinet Floor Clearance | 5.5 Inches |
| Depth with Drawers Open | 57.9 Inches |
| Voltage | 115 Volts |
| Amps | 2.1 Amps |
| Hertz | 60 Hz |
| Phase | 1 Phase |
| Plug Type | NEMA 5-15P |
| Capacity | 5.1 cu. ft. |
| Temperature Range | 33 - 41 Degrees F |
| BTU | 900 BTU/H |
| Horsepower | 1/5 hp |
| Refrigerant | R290 (Hydrocarbon)2.82 oz. Charge |
| Defrost | Automatic, Every 6 HoursAuto Evaporation of Condensation |
| Controls | Electronic ThermostatDigital LED Display |
| Exterior Material | Stainless Steel |
| Interior Material | Stainless Steel |
| Framework | Stainless Steel |
| Insulation | CFC-Free Foam |
| Access Type | Drawers |
| Number of Drawers | 2 |
| Gaskets | Magnetic |
| Top Weight Capacity | 441 lb. |
| Casters | With CastersShipped Uninstalled |
| Certifications | cETLus, ETL Sanitation |
| Warranty | 3 Years Parts & Labor5 Years Compressor (Part Only) |
| Usage | Commercial Indoor Use |
