Description
A 40 lb. propane (LP) floor fryer that keeps up with a busy fry station.

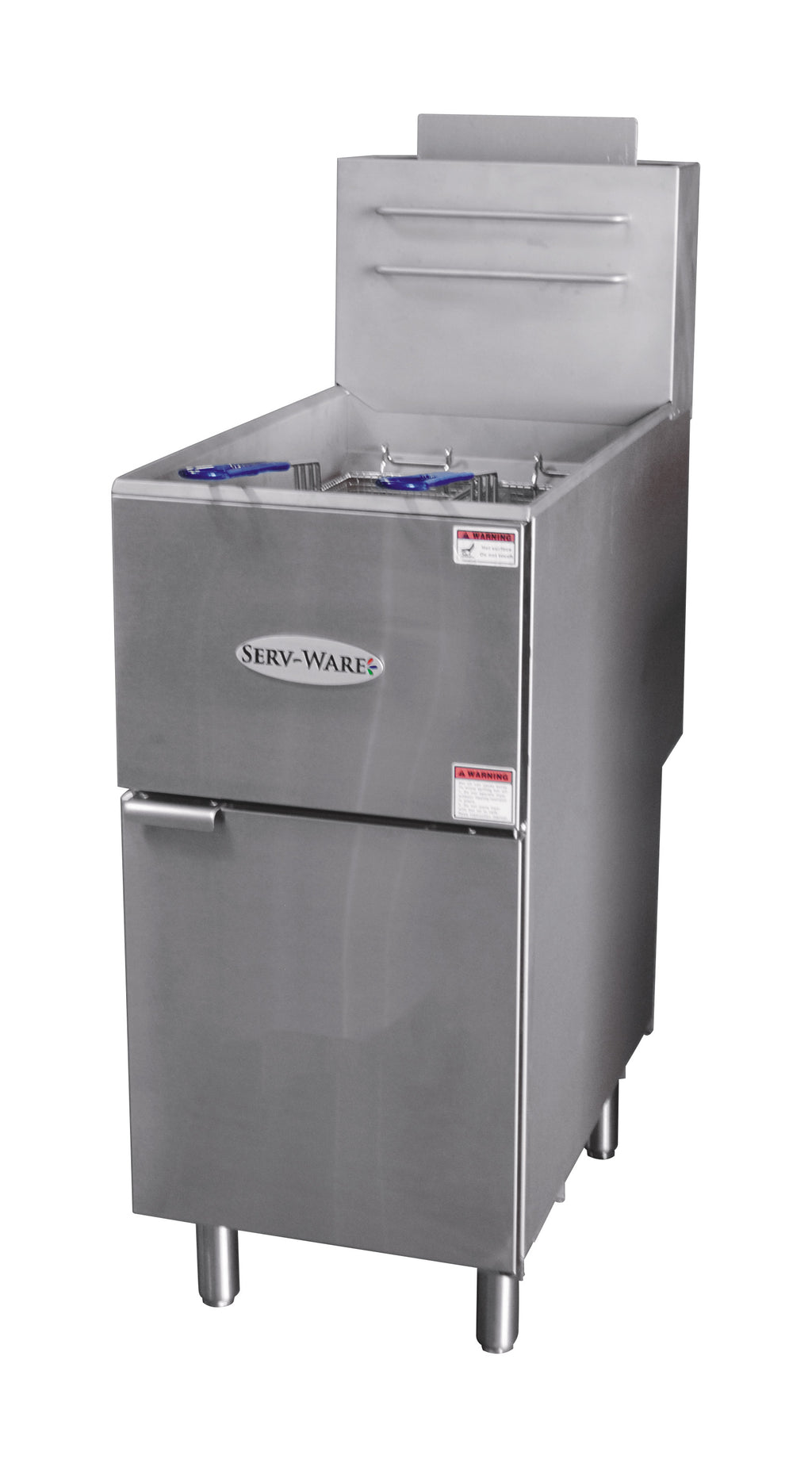

The Serv-Ware SGF-40L is a 15.5" wide propane (LP) floor fryer for restaurants, takeouts, bars and food service kitchens. It holds 40 lb. of oil, heats with 3 tubes at 90,000 BTU/hr in total and holds 200°F to 400°F on a thermostat. It is ETL Sanitation and cETLus listed and carries a 1-year parts and labor warranty.
Will it fit · Will it hook up
- Outside size
- 15.5" W × 30.2" D × 46.5" H as listed by Serv-Ware; the drawing shows 39.35" to the top of the back header and 34.75" to the front top edge
- Gas type
- Liquid Propane (LP) only, 10 in. W.C.; the natural gas version is the SGF-40N
- Total heat
- 90,000 BTU/hr (3 tubes × 30,000 BTU)
- Gas connection
- ½" gas inlet; Serv-Ware calls for a ¾" gas hose
- Oil capacity
- 40 lb.
- Ventilation
- Not stated on Serv-Ware's spec sheet; install under ventilation as your local code requires
- Shipping weight
- 160 lbs
Measure every doorway and turn on the delivery path; its smallest outside dimension is the 15.5" width. Clearance to combustibles is not stated on the spec sheet; follow the instruction manual supplied with the fryer and your local code.
90,000 BTU/hr of heat
3 burner tubes at 30,000 BTU each bring a 40 lb. tank of oil up to frying temperature.
Thermostat from 200°F to 400°F
Set the oil temperature for fries, chicken or fish with a simple thermostat control.
Cold zone and full-port drain
Crumbs settle in the cold zone below the tubes, and the 1-1/4" full-port valve drains the tank fast.
Stainless where it counts
Stainless steel front, top, header, door and fry tank; galvanized steel sides and back; 6" adjustable stainless legs.
Delivery and setup
- Free shipping on this item. See our shipping policy for delivery details.
- Usually ships the next business day.
- Covered by our Best Price Guarantee.
- Serv-Ware calls for a ¾" gas hose for the ½" inlet; have it ready before installation day.
- Have a qualified gas appliance installer connect and start up the fryer following the instruction manual supplied; Serv-Ware considers proper installation and start-up when evaluating warranty claims.
- Inspect all components when the shipment arrives and note any damage with the carrier.
Questions buyers ask
Is this fryer for natural gas or propane? Can it be converted?
The SGF-40L is the propane (LP) model, set up for 10 in. W.C.. The natural gas version is the SGF-40N. Serv-Ware does not list a conversion kit for this fryer, and its warranty excludes damage from improper gas conversion, so order the model that matches your gas supply.
What gas hookup does it need?
It has a ½" gas inlet and Serv-Ware calls for a ¾" gas hose. The 3 tubes burn 90,000 BTU/hr in total, so have a qualified gas installer confirm your line can supply that at 10 in. W.C..
Does it need a hood?
Serv-Ware's spec sheet does not list ventilation or clearance requirements. Commercial gas fryers are normally installed under a ventilation hood; follow your local fire and mechanical codes and the instruction manual supplied with the fryer.
Will it fit in my cook line?
Serv-Ware lists it at 15.5" wide, 30.2" deep and 46.5" high; the drawing shows 39.35" to the top of the back header and 34.75" to the front top edge. It stands on 6" stainless steel legs with 1" of adjustment.
How much oil does it hold, and how hot does it get?
The fry tank holds 40 lb. of oil. A thermostat sets the oil from 200°F to 400°F, and a cold zone below the tubes collects crumbs away from the heat.
How do I drain and clean it?
A 1-1/4" full-port drain valve empties the tank quickly, and the stainless tank has a peened finish. A drain tube rack is included. The warranty does not cover failures caused by missing cleaning or maintenance.

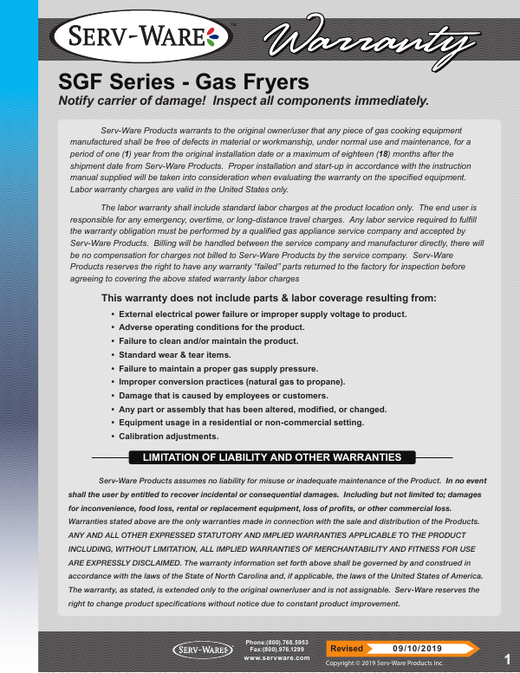

What does the warranty cover?
Serv-Ware covers parts and labor on the entire unit for 1 year from installation (up to 18 months from shipment) and the fry pot for 2 years (part only), in the United States and for commercial use. Warranty labor must be done by a qualified gas appliance service company.
When will it ship, and do you match lower prices?
Serv-Ware items usually ship the next business day, shipping is free on this item, and it is covered by our Best Price Guarantee. Call (201) 467-8222 if you find a lower price.
Specs
| Manufacturer | Serv-Ware |
|---|---|
| Model Number | SGF-40L |
| Quantity | 1/Each |
| Shipping Weight | 160 lb. |
| Width | 15.5 Inches |
| Depth | 30.2 Inches |
| Height | 46.5 Inches |
| Height to Top of Back Header (Drawing) | 39.35 Inches |
| Height to Front Top Edge (Drawing) | 34.75 Inches |
| Legs | 6" Stainless Steel1" Adjustability |
| Gas Type | Liquid Propane (LP) |
| Total BTU | 90,000 BTU/H |
| BTU per Tube | 30,000 BTU/H |
| Number of Tubes | 3 |
| Gas Inlet | 1/2" |
| Required Gas Hose | 3/4" |
| Gas Pressure | 10 in. W.C. (LP) |
| Oil Capacity | 40 lb. |
| Temperature Range | 200 - 400 Degrees F |
| Controls | Thermostat |
| Number of Fry Pots | 1 |
| Fry Baskets | 2 Wire Mesh Baskets |
| Fry Tank | Stainless Steel, Peened FinishCold Zone |
| Drain Valve | 1-1/4" Full-Port |
| Included | Drain Tube RackWire Mesh Fry Baskets |
| Exterior Material | Stainless Steel Front, Top & HeaderGalvanized Steel Sides & Back |
| Door | Stainless SteelIntegral Liner & Recessed Handle |
| Basket Hanger | Double-Rod Stainless Steel |
| Casters | Optional (5SB-3535, Sold Separately) |
| Certifications | cETLus, ETL Sanitation |
| Warranty | 1 Year Parts & Labor (Entire Unit)2 Years Fry Pot (Part Only) |
| Usage | Commercial Use Only |
