Description
Six open burners, a 24" griddle and two ovens for a full line in a 60" footprint.

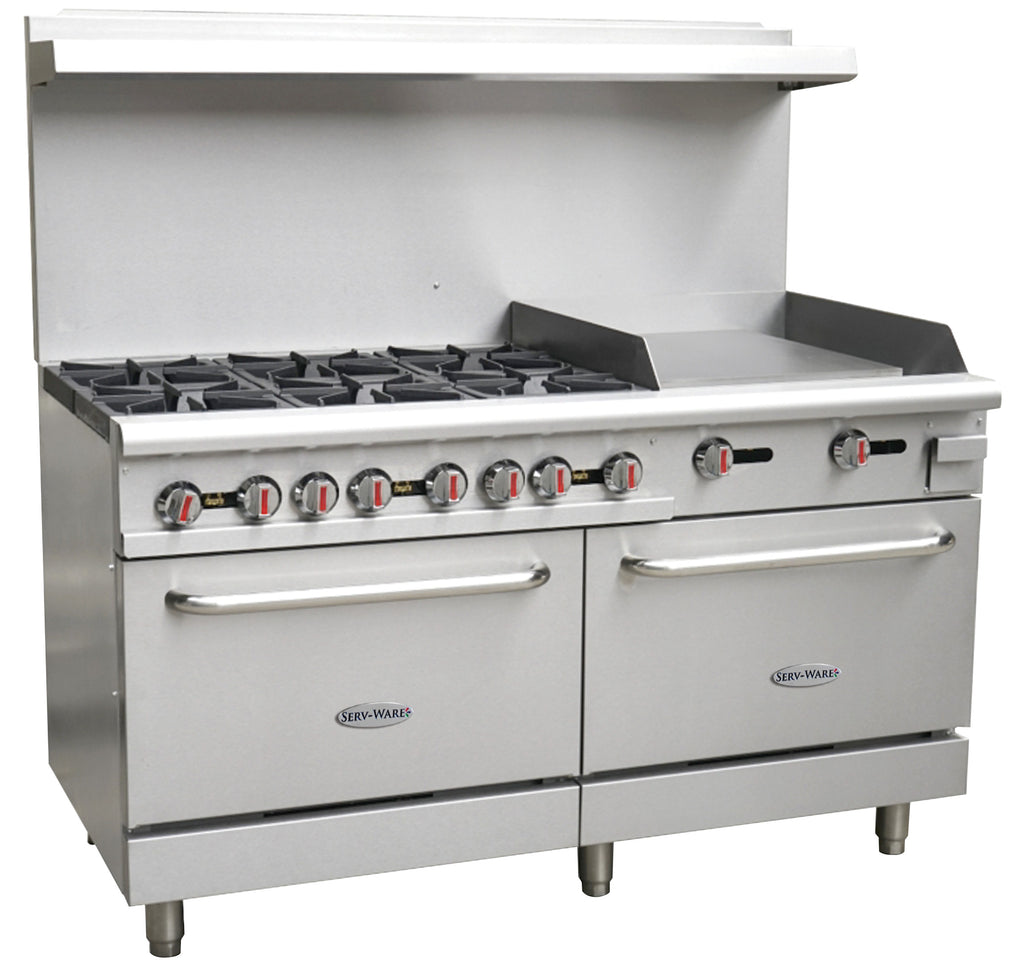

The Serv-Ware SGR-6B-24G is a 60" gas restaurant range for restaurants, diners and cafes that need burners and a flat-top on one unit. It has six 30,000 BTU open burners under removable 12" x 12" heavy duty cast grates, a 24" griddle, and two standard ovens with 31,000 BTU U-shaped burners, each taking a full-size sheet pan side-to-side or front-to-back. It is built for natural gas and supplied with an LP conversion kit, and it carries the Intertek ETL marks.
Will it fit · Will it hook up
- Outside size
- 60" W × 32.6" D × 60" H (to the top of the high shelf)
- Cooktop height
- 36.02" from the floor (drawing)
- Gas
- Natural gas, 3/4" gas line, 4" W.C.; LP conversion kit included (LP 10" W.C.)
- Burner input
- 6 × 30,000 BTU open burners; 2 × 31,000 BTU ovens; griddle BTU not published
- Ovens
- 2; full-size sheet pan fits side-to-side or front-to-back
- Shipping weight
- 865 lbs
Measure doorways and turns on the delivery path; its smallest outside dimension is the 32.6" depth. Plan for a 3/4" gas connection and a ventilation hood as your local code requires. Serv-Ware does not publish the griddle burner rating or clearances to combustible walls on the spec sheet.
Six open burners
Six 30,000 BTU open burners with covered stainless steel pilots and burner covers that keep spills from clogging them.
24" griddle
A 24" griddle section beside the burners for eggs, pancakes, burgers and sandwiches.
Two ovens, 250°F to 550°F
31,000 BTU U-shaped oven burners, thermostat from 250°F to 550°F, full-size sheet pan side-to-side or front-to-back, 2 racks and 4 rack positions per oven.
Heavy duty build
Fully welded frame; stainless steel front and back riser, high shelf, oven handle and bullnose; galvanized sides.
Easy cleaning
Removable 12" x 12" heavy duty cast grates and a pull-out crumb tray with rounded edges.
Natural gas or LP
Built for natural gas and supplied with an LP conversion kit.
Delivery and setup
- Free shipping on this item. See our shipping policy for delivery details.
- Usually ships in 1 business day.
- Covered by our Best Price Guarantee.
- Gas hookup and any LP conversion must be done by a qualified gas installer; the warranty excludes improper conversion and incorrect gas pressure.
- Inspect the shipment before signing for it.
Questions buyers ask
Does it run on propane?
It is built for natural gas and comes with an LP conversion kit. Have a qualified gas technician convert it; LP runs at 10" W.C. and natural gas at 4" W.C.
What gas connection does it need?
A 3/4" gas line. The open burners are 30,000 BTU each and the oven burners are 31,000 BTU; Serv-Ware does not publish the griddle burner rating, so ask your installer to size the supply with the data plate.
Will a full-size sheet pan fit in the oven?
Yes. A full-size sheet pan fits side-to-side or front-to-back, and the thermostat runs from 250°F to 550°F.
Will it fit through my door?
The range is 60" wide, 32.6" deep and 60" high to the top of the high shelf, and ships at 865 lbs. Measure every doorway and turn; its smallest outside dimension is the 32.6" depth.
Do I need a hood?
Commercial gas ranges are installed under a ventilation hood in most jurisdictions. Check with your local code official and installer.
Is it ETL listed?
The spec sheet carries the Intertek ETL marks (cETLus and ETL Sanitation).

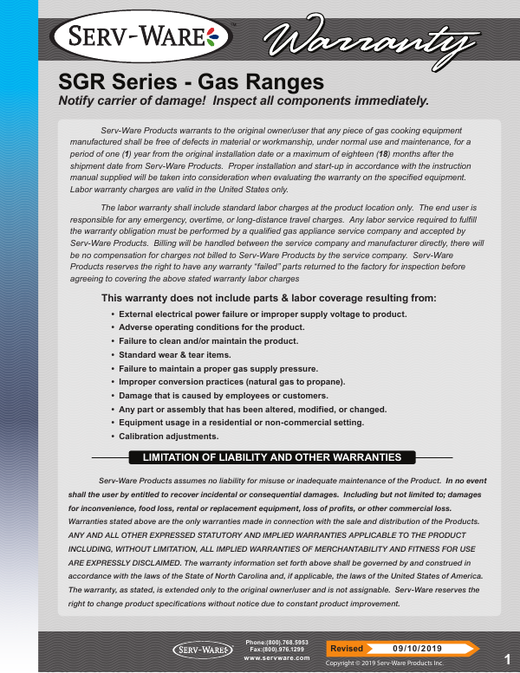

What does the warranty cover?
Serv-Ware covers parts and labor on the entire unit for 1 year from installation (up to 18 months from shipment), in the United States and for commercial use only. Labor must be done by a qualified gas appliance service company accepted by Serv-Ware.
When will it ship, and do you match lower prices?
It usually ships in 1 business day, shipping is free on this item, and it is covered by our Best Price Guarantee. Call (201) 467-8222 if you find a lower price.
Specs
| Manufacturer | Serv-Ware |
|---|---|
| Model Number | SGR-6B-24G |
| Quantity | 1/Each |
| Shipping Weight | 865 lb. |
| Width | 60 Inches |
| Depth | 32.6 Inches |
| Height | 60 Inches |
| Cooktop Height (Drawing) | 36.02 Inches |
| Back Riser and High Shelf Above Cooktop (Drawing) | 22.13 Inches |
| Legs | 6" Adjustable Stainless SteelNickel Plated Bullet Feet |
| Gas Type | Natural GasLP Conversion Kit Included |
| Gas Line | 3/4 Inch |
| Gas Pressure | 4 in. W.C. (Natural Gas)10 in. W.C. (LP) |
| Burner BTU | 30,000 BTU/H Each |
| Oven BTU | 31,000 BTU/H Each (U-Shaped Burner) |
| Number of Burners | 6 Open Burners |
| Griddle | 24 Inch |
| Grates | Removable Heavy Duty Cast12" x 12" |
| Number of Ovens | 2 Standard Ovens |
| Oven Temperature Range | 250 - 550 Degrees F |
| Oven Racks | 2 Racks4 Rack Positions (Per Oven) |
| Oven Capacity | Full-Size Sheet Pan, Side-to-Side or Front-to-Back |
| Pilots | CoveredStainless Steel |
| Crumb Tray | Pull-Out |
| Exterior | Stainless Steel Front, Back Riser, High Shelf, Oven Handle and BullnoseGalvanized Sides |
| Oven Interior | Porcelain Door Liner and Oven Bottom |
| Knobs | High Temperature with Set Screw |
| Frame | Fully Welded |
| Certifications | cETLus, ETL Sanitation |
| Warranty | 1 Year Parts & Labor (Entire Unit) |
| Usage | Commercial Use Only |
