Panels
- 4" Thick Foamed-In-Place Polyurethane Insulation
- Cam-Lock Panels, Tongue & Groove Design
- 24 Gauge Pre-Painted White Galvanized Steel

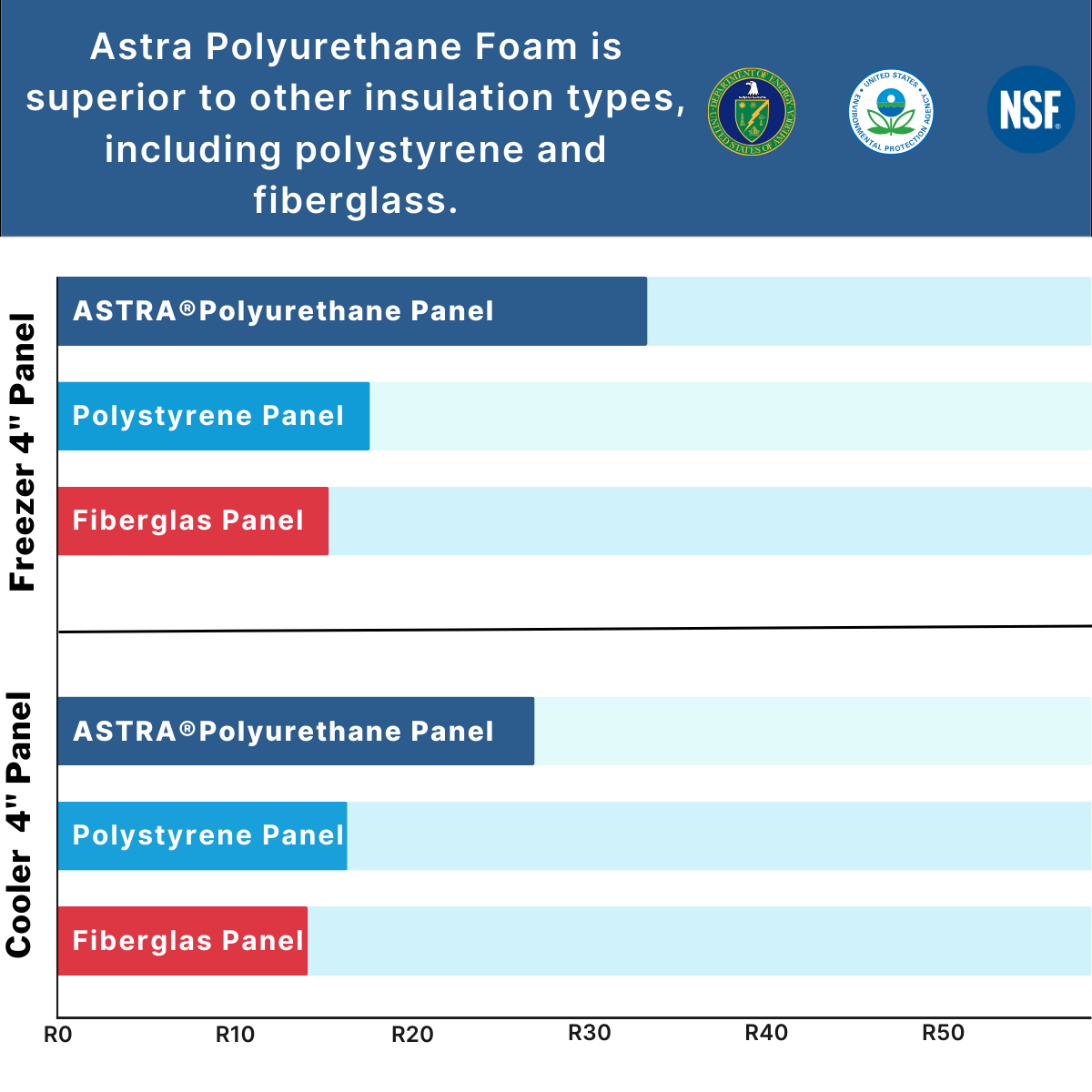

- R27 for Coolers and R33 for Freezers
- CFC and HFC Free Materials
- 10 Year Panel Warranty
Skip to content

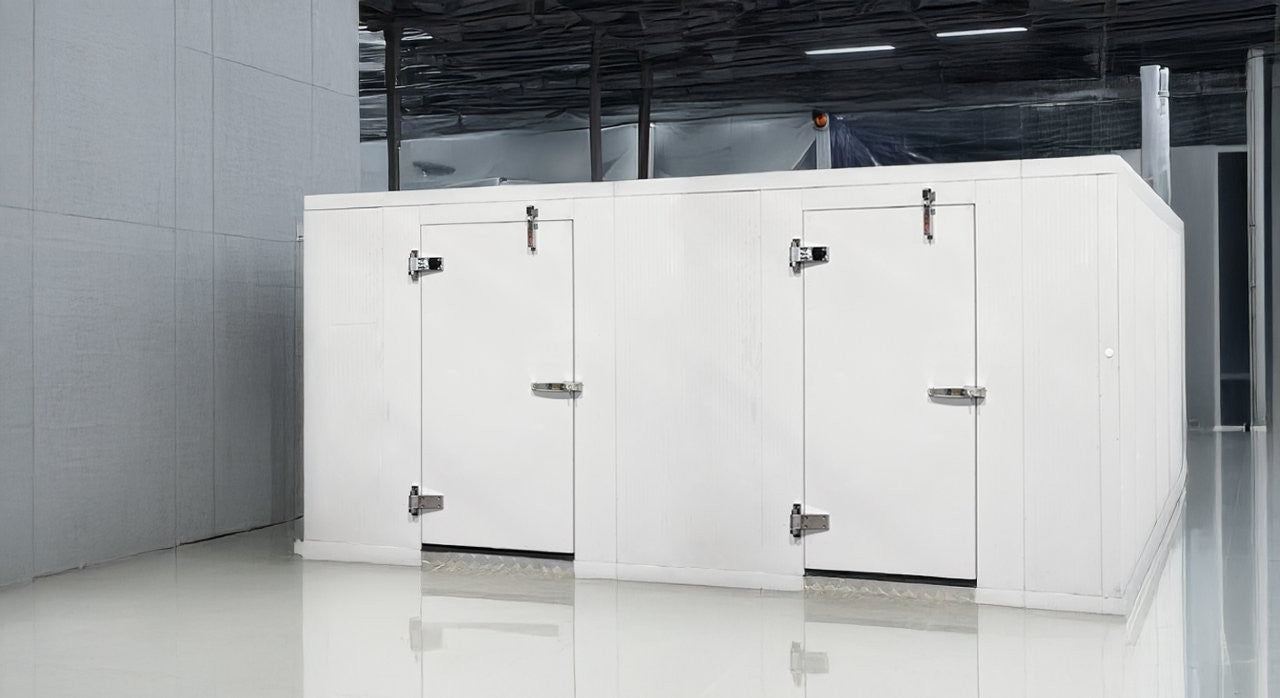

The Astra CMB8X10 is an 8 x 10 walk-in cooler/freezer combo box built for commercial foodservice storage, restaurant equipment planning, and back-of-house cold storage where one footprint needs to support multiple temperature zones. With a nominal 8' by 10' size and a box-only format, it fits operations that are organizing walk-in cooler and walk-in freezer space around their own refrigeration strategy.

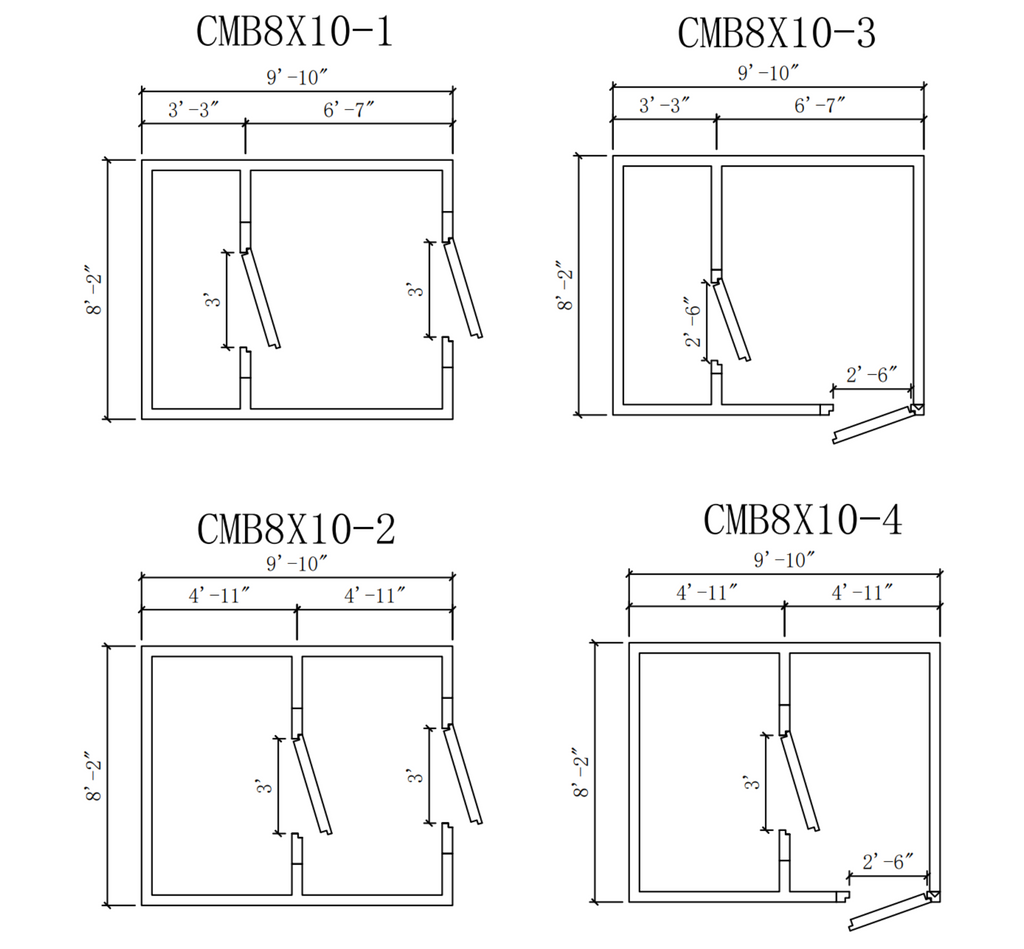

This walk-in box is part of the Astra modular refrigeration builder line and uses foamed-in-place panel construction with a floorless configuration. Buyers can select from door size options, including 30", 36", and a 48" pallet size upgrade, along with indoor or outdoor placement. For outdoor applications, a rain roof cover option is available separately, and multiple layout configurations are offered to help match the opening arrangement to the site plan.
The CMB8X10 can suit grocery back rooms, deli refrigeration areas, convenience store refrigeration storage, and other commercial kitchen equipment applications that need organized, split-use cold storage. Because walk-in cooler or freezer planning can be complex, customers can contact Atlantic Restaurant & Supermarket Equipment for help selecting the right brand, model, and configuration for their storage needs.
LED Light
Exterior Ramp
Aluminum Diamond Plate
Kick Plate
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Model Number | External Dimensions | Spec Sheet |
|---|---|---|
| CNF5X6 | 4'11" L x 6'7" W x 7'3" H | |
| CNF5X8 | 4'11" L x 8'2" W x 7'3" H | |
| CNF5X10 | 4'11" L x 9'10" W x 7'3" H | |
| CNF6X6 | 6'7" L x 6'7" W x 7'3" H | |
| CNF6X8 | 6'7" L x 8'2" W x 7'3" H | |
| CNF6X10 | 6'7" L x 9'10" W x 7'3" H | |
| CNF6X12 | 6'7" L x 11'6" W x 7'3" H | |
| CNF8X8 | 8'2" L x 8'2" W x 7'3" H | |
| CNF8X10 | 8'2" L x 9'10" W x 7'3" H | |
| CNF8X12 | 8'2" L x 11'6" W x 7'3" H | |
| CNF8X13 | 8'2" L x 13'2" W x 7'3" H | |
| CNF8X15 | 8'2" L x 14'9" W x 7'3" H | |
| CNF8X17 | 8'2" L x 16'5" W x 7'3" H | |
| CNF8X18 | 8'2" L x 18'1" W x 7'3" H | |
| CNF8X20 | 8'2" L x 19'8" W x 7'3" H | |
| CNF10X10 | 9'10" L x 9'10" W x 7'3" H | |
| CNF10X12 | 9'10" L x 11'6" W x 7'3" H | |
| CNF10X13 | 9'10" L x 13'2" W x 7'3" H | |
| CNF10X15 | 9'10" L x 14'9" W x 7'3" H | |
| CNF10X17 | 9'10" L x 16'5" W x 7'3" H | |
| CNF10X18 | 9'10" L x 18'1" W x 7'3" H | |
| CNF10X20 | 9'10" L x 19'8" W x 7'3" H | |
| CWF5X6 | 4'11" L x 6'7" W x 7'7" H | |
| CWF5X8 | 4'11" L x 8'2" W x 7'7" H | |
| CWF5X10 | 4'11" L x 9'10" W x 7'7" H | |
| CWF6X6 | 6'7" L x 6'7" W x 7'7" H | |
| CWF6X8 | 6'7" L x 8'2" W x 7'7" H | |
| CWF6X10 | 6'7" L x 9'10" W x 7'7" H | |
| CWF6X12 | 6'7" L x 11'6" W x 7'7" H | |
| CWF8X8 | 8'2" L x 8'2" W x 7'7" H | |
| CWF8X10 | 8'2" L x 9'10" W x 7'7" H | |
| CWF8X12 | 8'2" L x 11'6" W x 7'7" H | |
| CWF8X13 | 8'2" L x 13'2" W x 7'7" H | |
| CWF8X15 | 8'2" L x 14'9" W x 7'7" H | |
| CWF8X17 | 8'2" L x 16'5" W x 7'7" H | |
| CWF8X18 | 8'2" L x 18'1" W x 7'7" H | |
| CWF8X20 | 8'2" L x 19'8" W x 7'7" H | |
| CWF10X10 | 9'10" L x 9'10" W x 7'7" H | |
| CWF10X12 | 9'10" L x 11'6" W x 7'7" H | |
| CWF10X13 | 9'10" L x 13'2" W x 7'7" H | |
| CWF10X15 | 9'10" L x 14'9" W x 7'7" H | |
| CWF10X17 | 9'10" L x 16'5" W x 7'7" H | |
| CWF10X18 | 9'10" L x 18'1" W x 7'7" H | |
| CWF10X20 | 9'10" L x 19'8" W x 7'7" H |
| Model Number | External Dimensions | Spec Sheet |
|---|---|---|
| FWF5X6 | 4'11" L x 6'7" W x 7'7" H | |
| FWF5X8 | 4'11" L x 8'2" W x 7'7" H | |
| FWF5X10 | 4'11" L x 9'10" W x 7'7" H | |
| FWF6X6 | 6'7" L x 6'7" W x 7'7" H | |
| FWF6X8 | 6'7" L x 8'2" W x 7'7" H | |
| FWF6X10 | 6'7" L x 9'10" W x 7'7" H | |
| FWF6X12 | 6'7" L x 11'6" W x 7'7" H | |
| FWF8X8 | 8'2" L x 8'2" W x 7'7" H | |
| FWF8X10 | 8'2" L x 9'10" W x 7'7" H | |
| FWF8X12 | 8'2" L x 11'6" W x 7'7" H | |
| FWF8X13 | 8'2" L x 13'2" W x 7'7" H | |
| FWF8X15 | 8'2" L x 14'9" W x 7'7" H | |
| FWF8X17 | 8'2" L x 16'5" W x 7'7" H | |
| FWF8X18 | 8'2" L x 18'1" W x 7'7" H | |
| FWF8X20 | 8'2" L x 19'8" W x 7'7" H | |
| FWF10X10 | 9'10" L x 9'10" W x 7'7" H | |
| FWF10X12 | 9'10" L x 11'6" W x 7'7" H | |
| FWF10X13 | 9'10" L x 13'2" W x 7'7" H | |
| FWF10X15 | 9'10" L x 14'9" W x 7'7" H | |
| FWF10X17 | 9'10" L x 16'5" W x 7'7" H | |
| FWF10X18 | 9'10" L x 18'1" W x 7'7" H | |
| FWF10X20 | 9'10" L x 19'8" W x 7'7" H |
| Model Number | External Dimensions | Spec Sheet |
|---|---|---|
| CMB5X12 | 4'11" L x 11'6" W x 7'7" H | |
| CMB5X13 | 4'11" L x 13'2" W x 7'7" H | |
| CMB5X15 | 4'11" L x 14'9" W x 7'7" H | |
| CMB6X8 | 6'7" L x 8'2" W x 7'7" H | |
| CMB6X10 | 6'7" L x 9'10" W x 7'7" H | |
| CMB6X12 | 6'7" L x 11'6" W x 7'7" H | |
| CMB6X13 | 6'7" L x 13'2" W x 7'7" H | |
| CMB6X15 | 6'7" L x 14'9" W x 7'7" H | |
| CMB6X17 | 6'7" L x 16'5" W x 7'7" H | |
| CMB6X18 | 6'7" L x 18'1" W x 7'7" H | |
| CMB6X20 | 6'7" L x 19'8" W x 7'7" H | |
| CMB8X8 | 8'2" L x 8'2" W x 7'7" H | |
| CMB8X10 | 8'2" L x 9'10" W x 7'7" H | |
| CMB8X12 | 8'2" L x 11'6" W x 7'7" H | |
| CMB8X13 | 8'2" L x 13'2" W x 7'7" H | |
| CMB8X15 | 8'2" L x 14'9" W x 7'7" H | |
| CMB8X17 | 8'2" L x 16'5" W x 7'7" H | |
| CMB8X18 | 8'2" L x 18'1" W x 7'7" H | |
| CMB8X20 | 8'2" L x 19'8" W x 7'7" H | |
| CMB10X10 | 9'10" L x 9'10" W x 7'7" H | |
| CMB10X12 | 9'10" L x 11'6" W x 7'7" H | |
| CMB10X13 | 9'10" L x 13'2" W x 7'7" H | |
| CMB10X15 | 9'10" L x 14'9" W x 7'7" H | |
| CMB10X17 | 9'10" L x 16'5" W x 7'7" H | |
| CMB10X18 | 9'10" L x 18'1" W x 7'7" H | |
| CMB10X20 | 9'10" L x 19'8" W x 7'7" H |
Astra QuickShip Walk-In Boxes
Review Astra QuickShip cooler, freezer, and combo models in one place. Use the tabs below to compare dimensions, spec sheets, and pricing as you plan your project.
