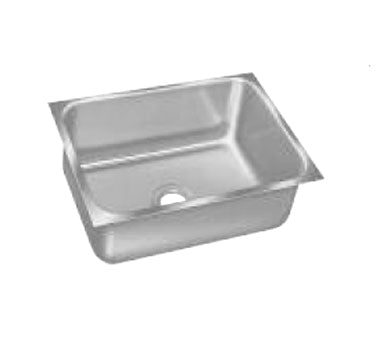

Advance Tabco 1014A-10A — Commercial Undermount Sinks
The Advance Tabco 1014A-10A is offered in the configuration shown below. Overall dimensions: 12.5 in. W × 16.5 in. D × 10 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Compatibility and Included Components
18 gauge 304 stainless steel (NOT FOR USE WITH STANDARD TABLES) (can be used as undermount on non-stainless tops)
Product Features
- Smart Series™ Sink
- undermount
- 1-compartment
- 10" wide x 14" front-to-back x 10" deep
- 3-1/2" drain opening
- 12-1/2" x 16-1/2" O.D. trim size
- 18 gauge 304 stainless steel (NOT FOR USE WITH STANDARD TABLES) (can be used as undermount on non-stainless tops)
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | 1014A-10A |
| Shipping Weight (Supplier Reference) | 6 lbs |
| Width | 12.5 in. |
| Depth | 16.5 in. |
| Height | 10 in. |
| Compartment (front - back) | 14" |
| Compartment Width (side - side) | 10" |
| Compartments | 1 compartment |
| Gauge | 18 ga stainless steel |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features.
Documents and Resources

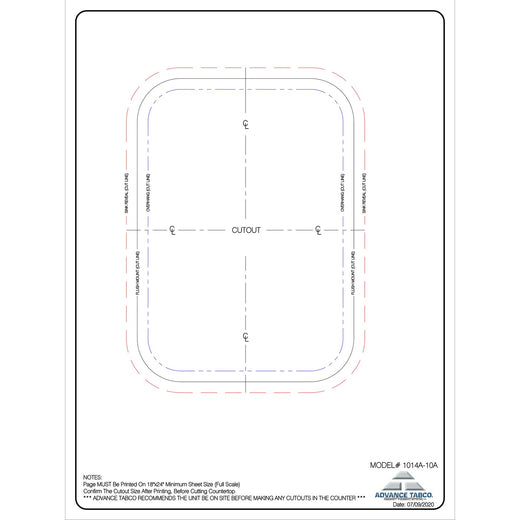

Available documents: Spec Sheet, Template. Open the product documents section to view or download the manufacturer PDFs.
