Description

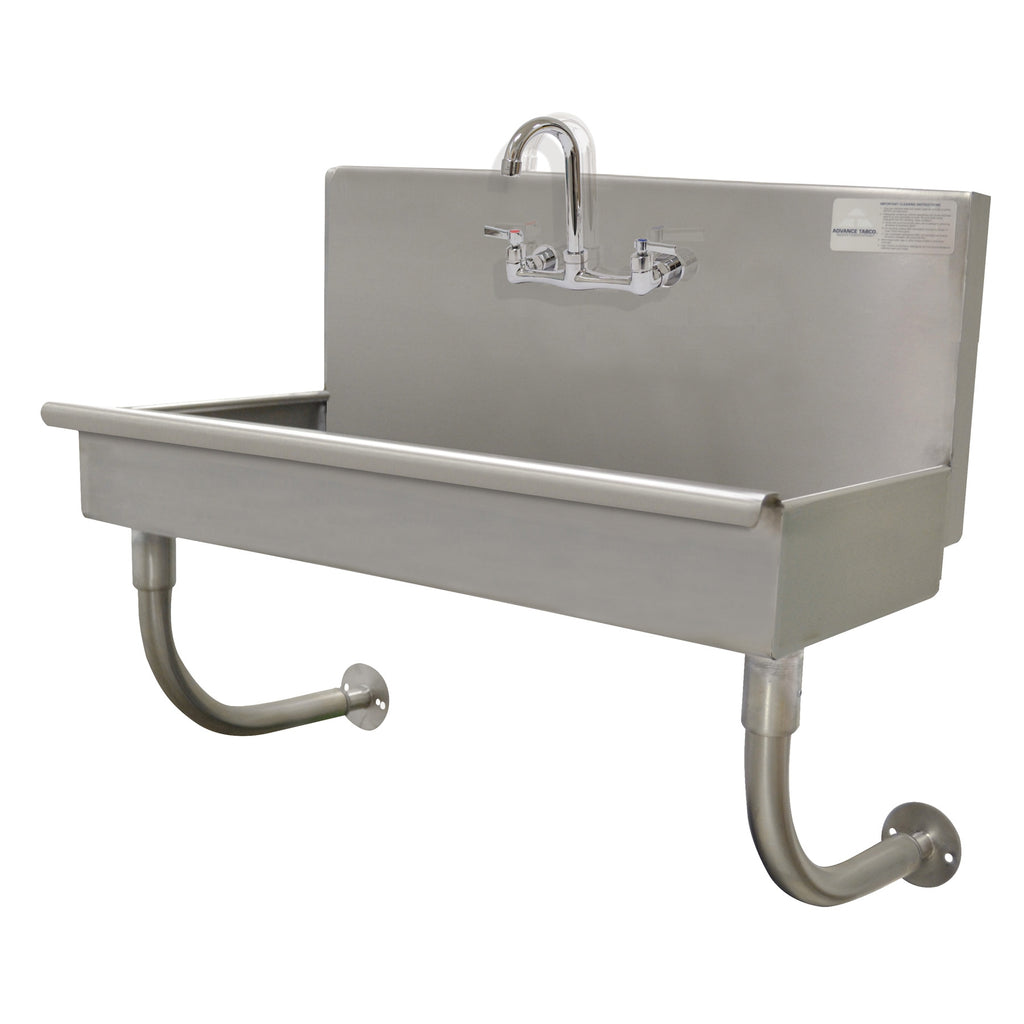

Advance Tabco 19-18-1-ADA-F — Commercial Hand Wash Sinks
The Advance Tabco 19-18-1-ADA-F is offered in the configuration shown below. Overall dimensions: 40 in. W × 19.5 in. D × 25.5 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- Service Sink
- wall mounted
- includes faucet with wrist blades
- 40"W x 19-1/2"D x 25-1/2"H (overall)
- 16" front-to-back x 5" deep (bowl size)
- 8-1/2"H backsplash
- punched with (1) set of faucet holes 8" OC
- includes 3-1/2" rear basket drain
- 16 gauge 304 stainless steel construction
- tubular stainless steel wall supports
- ADA compliant
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | 19-18-1-ADA-F |
| Shipping Weight (Supplier Reference) | 64 lbs |
| Width | 40 in. |
| Depth | 19.5 in. |
| Height | 25.5 in. |
| Style | wall mounted |
| Backsplash | back (only) |
| Dispenser | without dispenser |
| Valve | without valve |
| Gauge | 16 gauge |
| Bowl Width (left to right) | 40" - 49" |
| Bowl Depth (front to back) | 15" - 19" front-to-back |
| Bowl Height (rim to drain) | 5" deep |
| Faucet | faucet (wrist) |
| Certifications | ADA Compliant |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features.
Documents and Resources

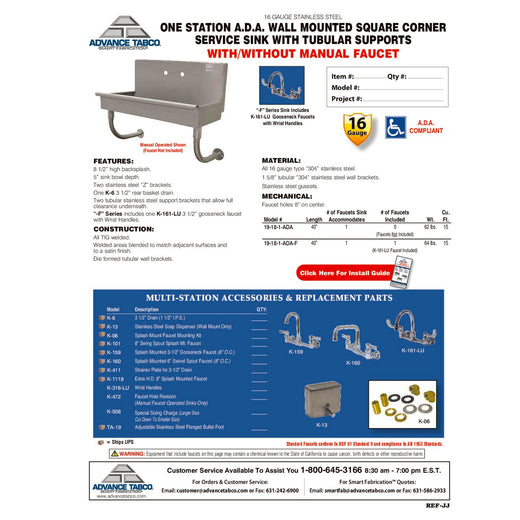

Available documents: Spec Sheet, Parts List. Open the product documents section to view or download the manufacturer PDFs.
