Description

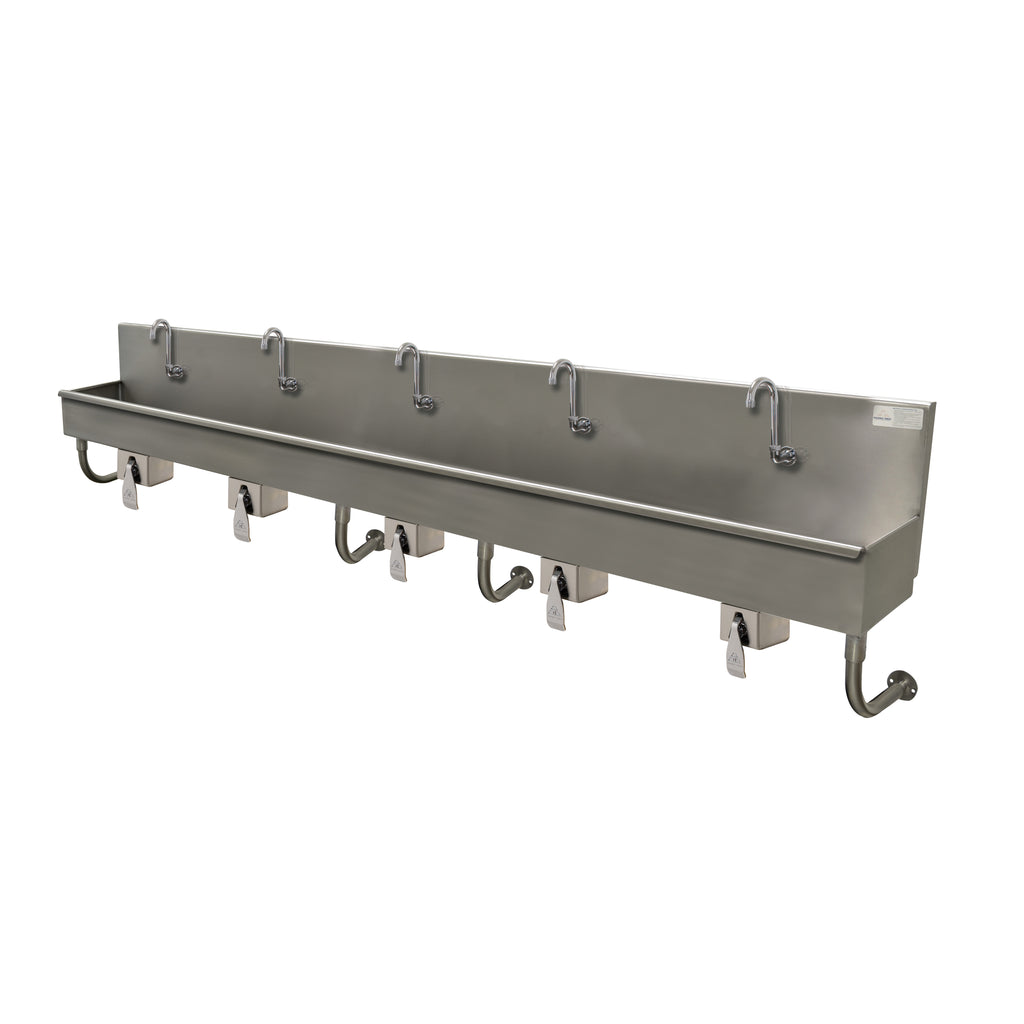

Advance Tabco 19-18-100KV — Commercial Hand Wash Sinks
The Advance Tabco 19-18-100KV is offered in the configuration shown below. Overall dimensions: 100 in. W × 19.5 in. D × 28.5 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- Multiwash Hand Sink
- wall mounted
- with knee valve
- 100"W x 19-1/2"D x 28-1/2"H (overall)
- 16" front-to-back x 8" deep (bowl size)
- 8-1/2"H backsplash
- punched with (5) single faucet holes
- gooseneck spouts
- includes basket drain
- 16 gauge 304 stainless steel construction
- tubular stainless steel wall supports
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | 19-18-100KV |
| Shipping Weight (Supplier Reference) | 180 lbs |
| Width | 100 in. |
| Depth | 19.5 in. |
| Height | 28.5 in. |
| Style | wall mounted |
| Backsplash | back (only) |
| Dispenser | without dispenser |
| Valve | multiple knee valve units |
| Gauge | 16 gauge |
| Bowl Width (left to right) | 100" - 119" |
| Bowl Depth (front to back) | 15" - 19" front-to-back |
| Bowl Height (rim to drain) | 8" deep |
| Faucet | faucet not included |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features.
Documents and Resources

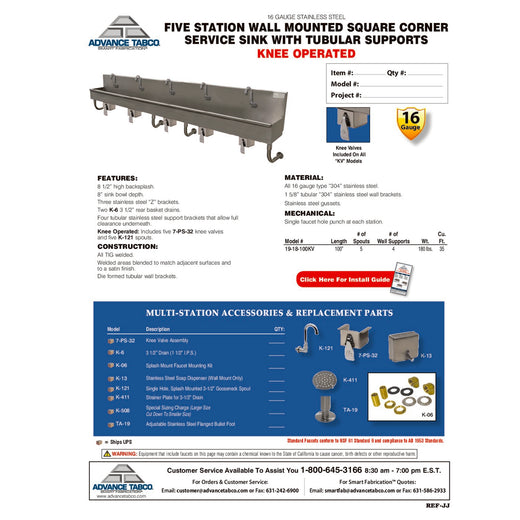

Available documents: Spec Sheet, Parts List, Installation & Operation. Open the product documents section to view or download the manufacturer PDFs.
