Description
Advance Tabco 7-PS-92 — Commercial Tankless Water Heaters
The Advance Tabco 7-PS-92 is offered in the configuration shown below. Overall dimensions: 15 in. W × 6 in. D × 12 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- Water heater
- tankless electric
- 0.5 gpm maximum continuous flow
- 120v single phase
- 25 amp
- raises water temperature approx. 42 degrees at 0.5 gpm

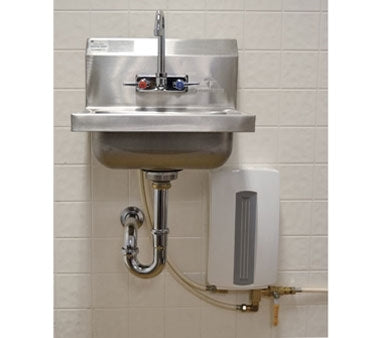

- mounts on wall (if ordered with pedestal hand sink may be mounted by factory to inside of pedestal)
- requires cold water feed
- electrical connection to circuit breaker panel box required (by others)
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | 7-PS-92 |
| Shipping Weight (Supplier Reference) | 25 lbs |
| Width | 15 in. |
| Depth | 6 in. |
| Height | 12 in. |
| Wattage | 3.0 kilowatts |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features.
Documents and Resources

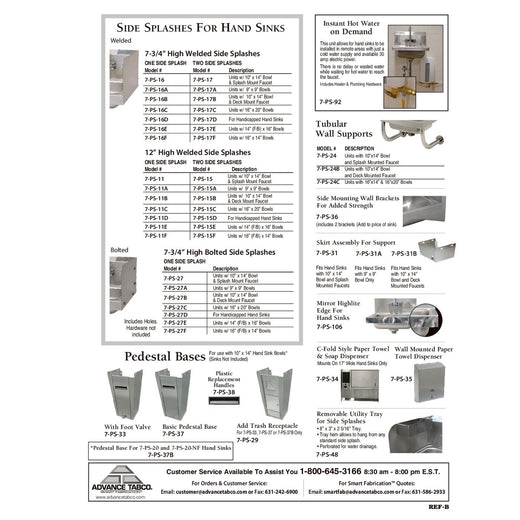

Available documents: Spec Sheet, Plumbing Rough In. Open the product documents section to view or download the manufacturer PDFs.
