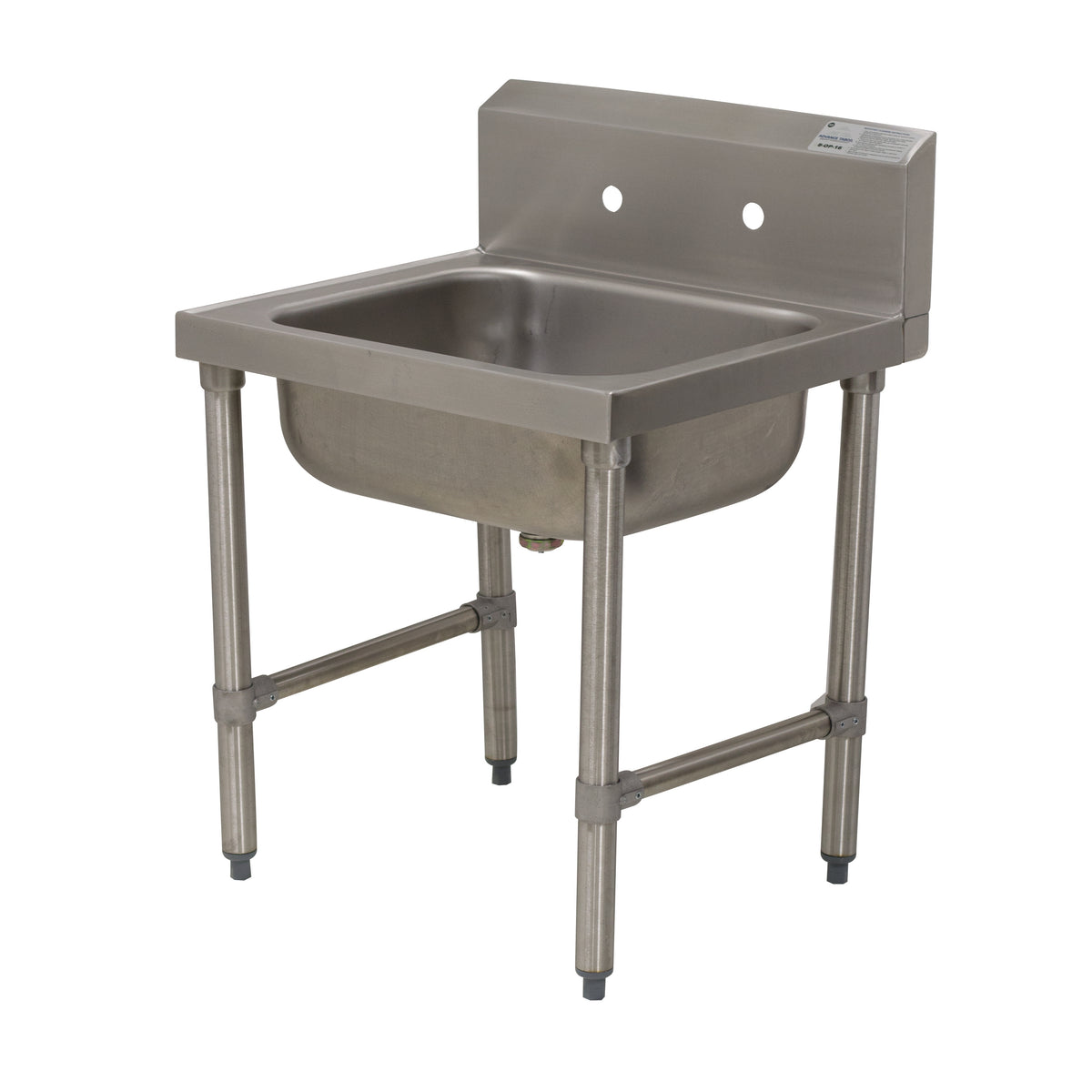

Advance Tabco 8-OP-16 — 1 Compartment Sinks
The Advance Tabco 8-OP-16 is offered in the configuration shown below. Overall dimensions: 25 in. W × 23 in. D × 34 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- Leg mounted design.
- High back splash.
- 3 1/2” Basket drain inlcuded
- Includes stainless steel adjustable side cross rails (front to back).
- All TIG welded.
- Welded areas blended to match adjacent surfaces and to a satin finish.
- Legs are 18 gauge type “430” stainless steel with 1” adjustable stainless steel bullet feet.
- 18 gauge type“304” series stainless steel.
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | 8-OP-16 |
| Shipping Weight (Supplier Reference) | 50 lbs |
| Width | 25 in. |
| Depth | 23 in. |
| Height | 34 in. |
| Compartment (front - back) | 16" |
| Compartment Width (side - side) | 20" |
| Drainboards | without drainboards |
| Base Type | legs with side crossrails |
| Base Construction | stainless steel |
| Splash Height | 8" |
| Top Gauge | 18 gauge |
| Top Stainless Series | 300 series |
| Sink Depth (rim - drain) | 8" |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features.
Documents and Resources

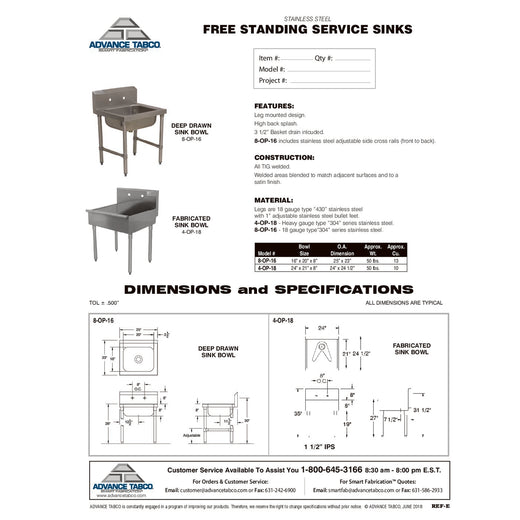

Available documents: Spec Sheet. Open the product documents section to view or download the manufacturer PDFs.
