Advance Tabco 9-3-54-18RL — 3 Compartment Sinks

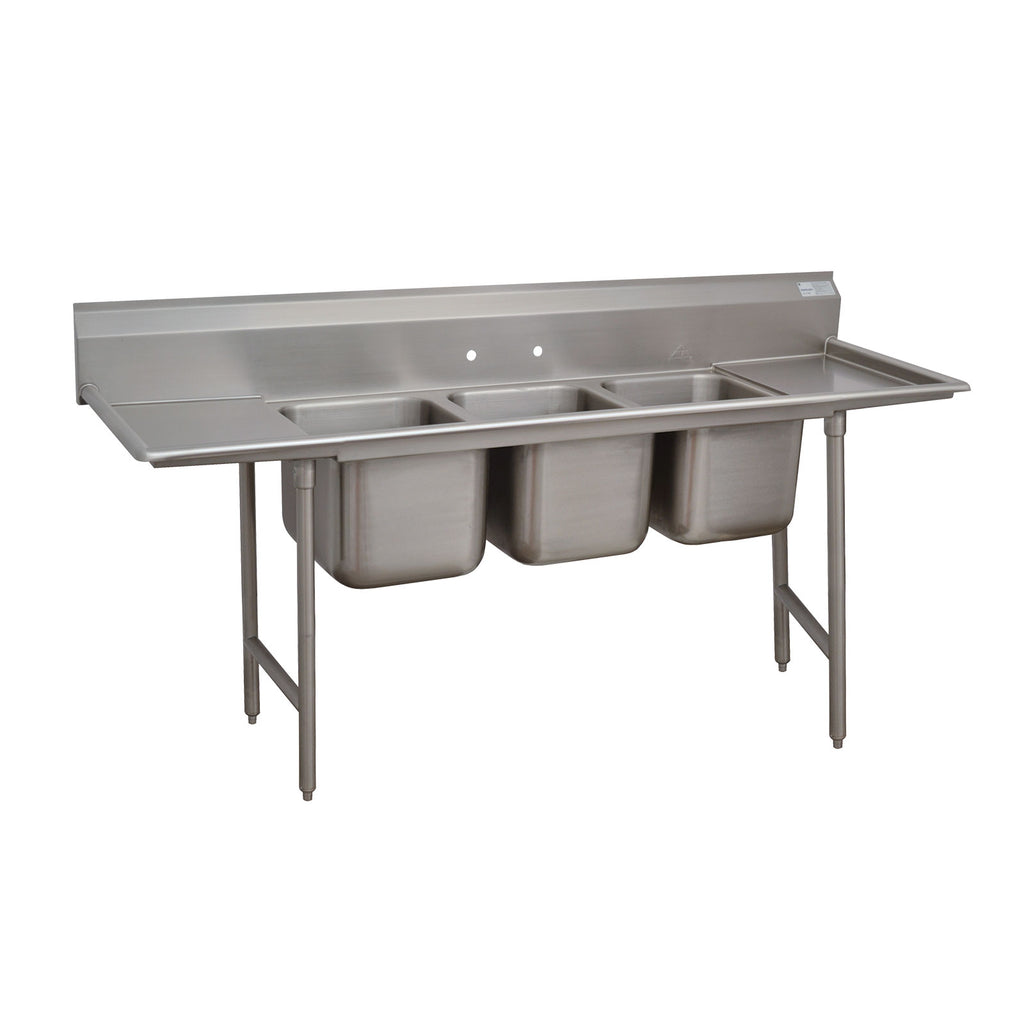

The Advance Tabco 9-3-54-18RL is offered in the configuration shown below. Overall dimensions: 91 in. W × 27 in. D × 42 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- Regaline Sink
- 3-compartment
- with left & right-hand drainboards
- 20" front-to-back x 16"W sink compartments
- 12" deep
- with 8"H backsplash
- stainless steel open frame base
- side crossrails
- 18" drainboards
- 1" adjustable bullet feet
- 18 gauge 304 stainless steel
- overall 27" F/B x 91" L/R
- NSF
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | 9-3-54-18RL |
| Shipping Weight (Supplier Reference) | 182 lbs |
| Width | 91 in. |
| Depth | 27 in. |
| Height | 42 in. |
| Compartment (front - back) | 20" |
| Compartment Width (side - side) | 16" |
| Drainboards | with left & right-hand drainboards |
| Base Type | legs with side crossrails |
| Base Construction | stainless steel |
| Splash Height | 8" |
| Top Gauge | 18 gauge |
| Top Stainless Series | 300 series |
| Sink Depth (rim - drain) | 12" |
| Certifications | NSF |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features.
Documents and Resources

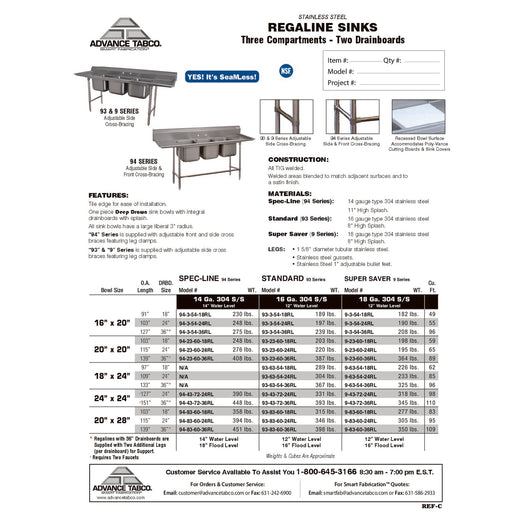

Available documents: Spec Sheet. Open the product documents section to view or download the manufacturer PDFs.
