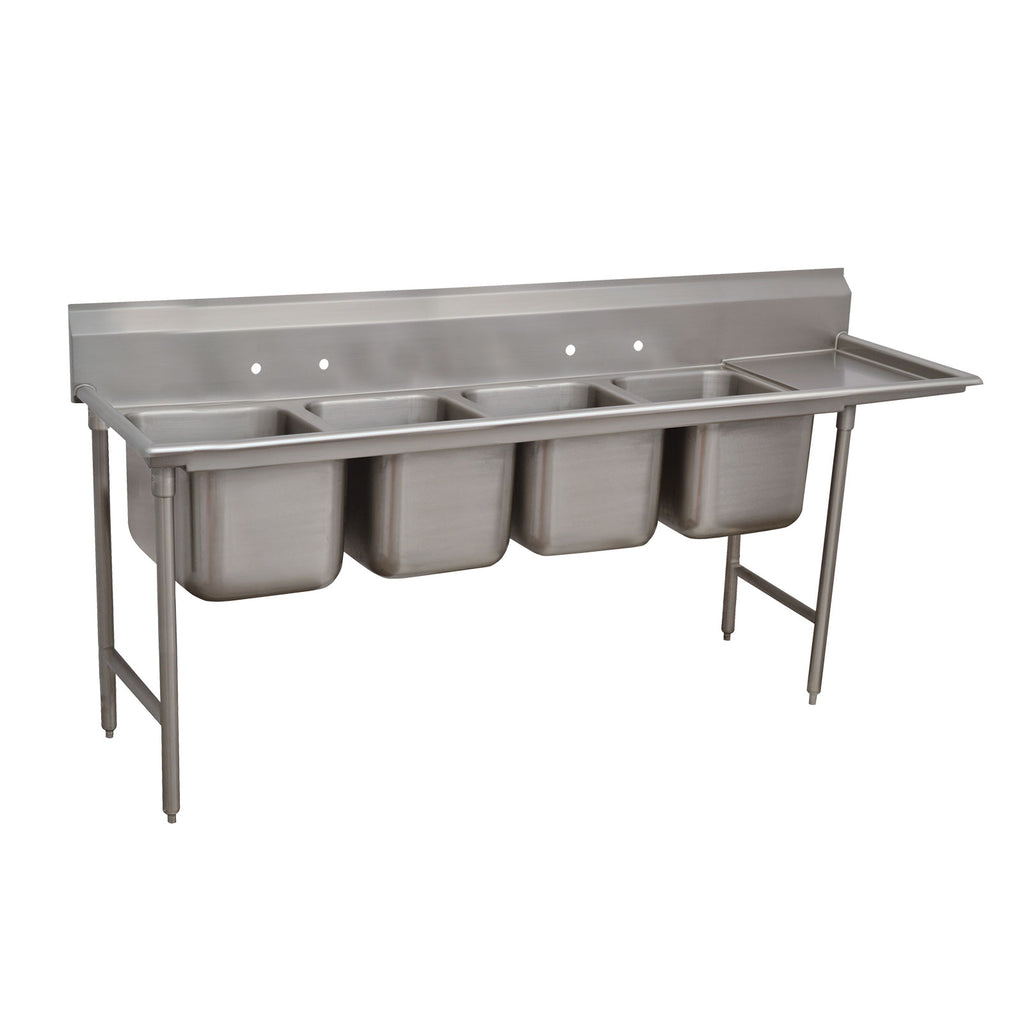

Advance Tabco 9-4-72-24R — 4 Compartment Sinks
The Advance Tabco 9-4-72-24R is offered in the configuration shown below. Overall dimensions: 101 in. W × 27 in. D × 42 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- Regaline Sink
- 4-compartment
- with right-hand drainboard
- 20" front-to-back x 16"W sink compartments
- 12" deep
- with 8"H backsplash
- stainless steel open frame base
- side crossrails
- 24" drainboard
- 1" adjustable feet
- 18 gauge 304 stainless steel
- overall 27" F/B x 101" L/R NSF (requires 2 faucets)
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | 9-4-72-24R |
| Shipping Weight (Supplier Reference) | 175 lbs |
| Width | 101 in. |
| Depth | 27 in. |
| Height | 42 in. |
| Compartment (front - back) | 20" |
| Compartment Width (side - side) | 16" |
| Drainboards | with right-hand drainboard |
| Base Type | legs with side crossrails |
| Base Construction | stainless steel |
| Splash Height | 8" |
| Top Gauge | 18 gauge |
| Top Stainless Series | 300 series |
| Sink Depth (rim - drain) | 12" |
| Certifications | NSF |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features.
Documents and Resources

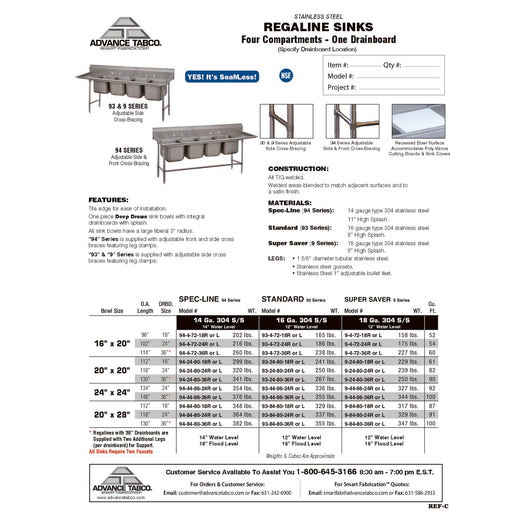

Available documents: Spec Sheet. Open the product documents section to view or download the manufacturer PDFs.
