Description

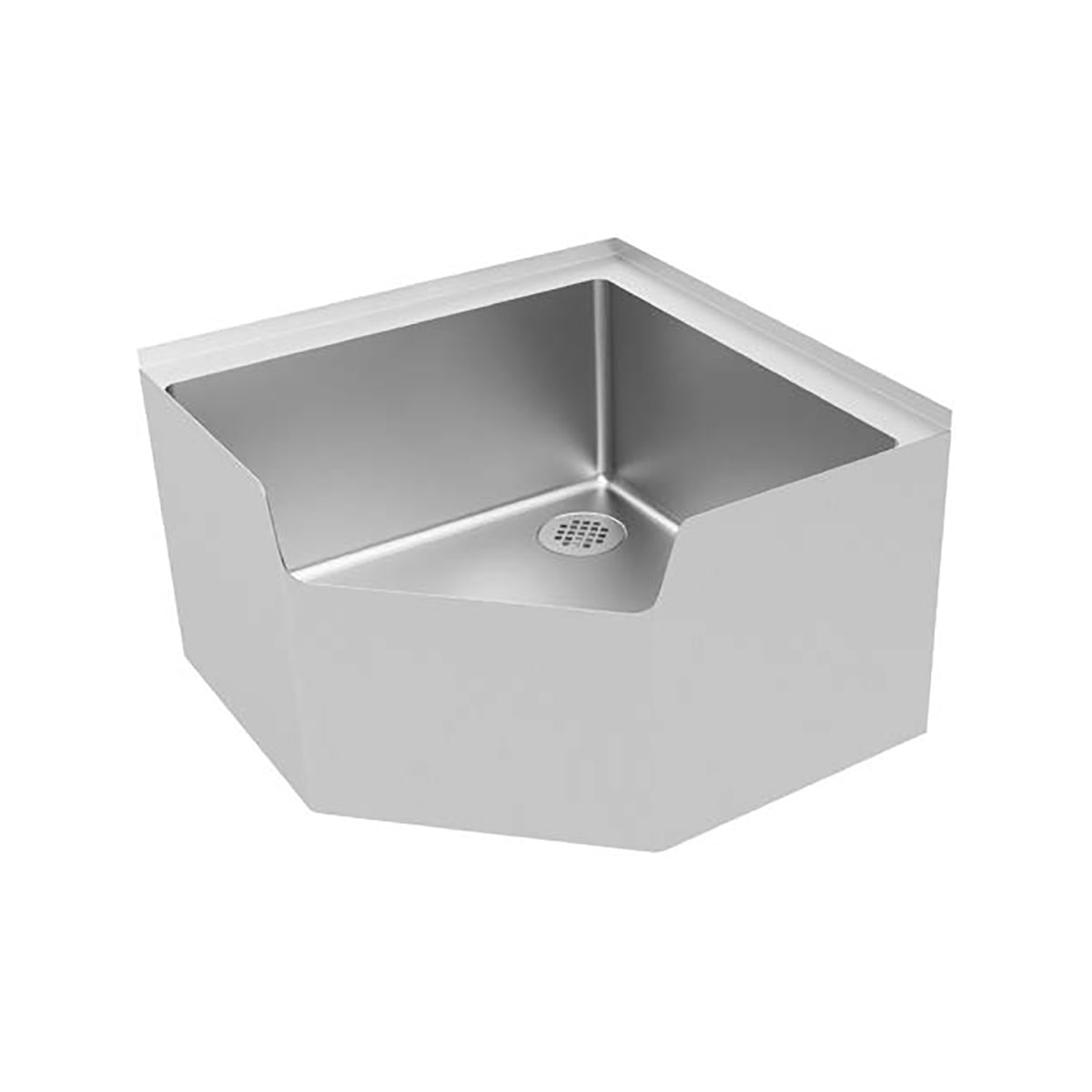

Advance Tabco 9-OP-44CDF — Commercial Mop Sinks
The Advance Tabco 9-OP-44CDF is offered in the configuration shown below. Overall dimensions: 26.5 in. W × 26.5 in. D × 16 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- Constructed from 16‑gauge 304 stainless steel with TIG welding and a satin finish for long‑lasting durability.
- Floor‑mounted design with a notched drop‑front allows quick, ergonomic emptying of mop buckets.
- Spacious 24" × 24" bowl depth of 12" provides ample capacity for large mop loads in busy kitchens.
- Free‑flow K‑16 drain includes a 2" IPS outlet, ensuring rapid water removal and compliance with commercial plumbing standards.
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | 9-OP-44CDF |
| Shipping Weight (Supplier Reference) | 85 lbs |
| Width | 26.5 in. |
| Depth | 26.5 in. |
| Height | 16 in. |
| Overall Width (side - side) | 25" - 29" |
| Style | floor mounted |
| Backsplash | no backsplash (flat) |
| Construction | stainless steel |
| Bowl Height | 12" deep |
| Bowl Width (left to right) | 20" |
| Bowl Depth | 16" front-to-back |
| Special Features | corner , drop front |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features.
Documents and Resources

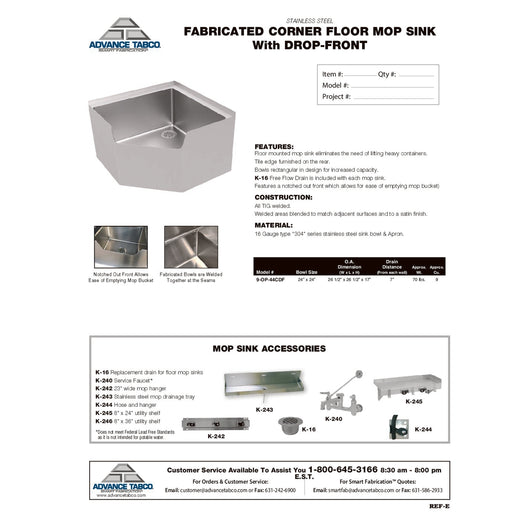

Available documents: Spec Sheet. Open the product documents section to view or download the manufacturer PDFs.
