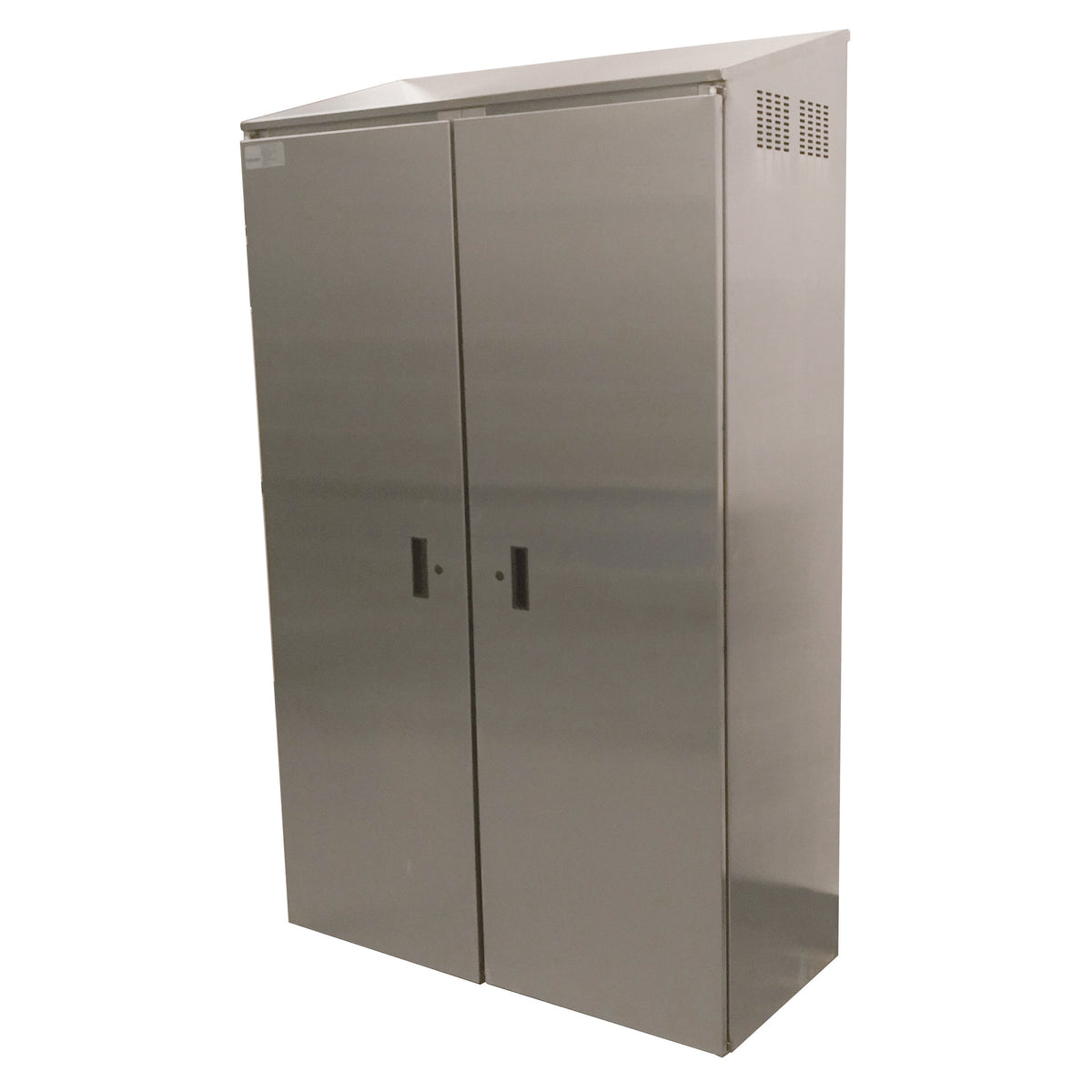

Advance Tabco 9-OPC-84DR-300 — Commercial Mop Sinks
The Advance Tabco 9-OPC-84DR-300 is offered in the configuration shown below. Overall dimensions: 50.38 in. W × 22.75 in. D × 84 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- Cabinet with Mop Sink
- 50-3/8"W x 22-3/4"D x 84"H O.A.
- double hinged doors
- right side mop sink 20"W x 16"D front to back x 12" deep (drain included)
- storage for mop bucket to roll in on left
- (2) mop holders
- (4) fixed intermediate shelves (3 on left
- 1 on right above sink)
- slotted side panels for ventilation
- 16/304 series stainless steel sink bowl
- 18/304 series sink bowl apron
- 18/300 series stainless steel cabinet
- NSF
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | 9-OPC-84DR-300 |
| Shipping Weight (Supplier Reference) | 390 lbs |
| Width | 50.38 in. |
| Depth | 22.75 in. |
| Height | 84 in. |
| Overall Width (side - side) | 40" (And Up) |
| Style | cabinet |
| Construction | stainless steel |
| Bowl Height | 12" deep |
| Bowl Width (left to right) | 20" |
| Bowl Depth | 16" front-to-back |
| Special Features | double hinged doors, sink in right cabinet |
| Certifications | NSF |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features.
Documents and Resources

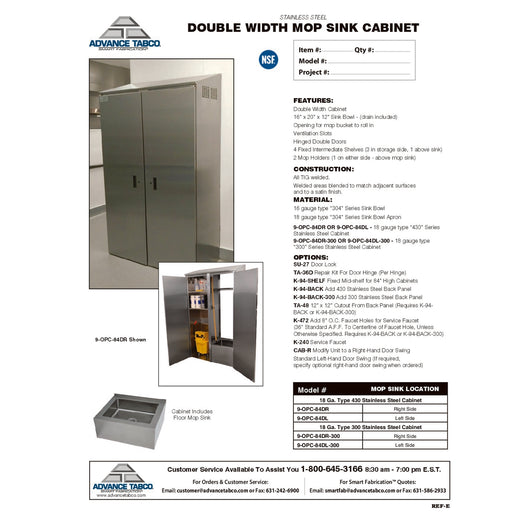

Available documents: Spec Sheet. Open the product documents section to view or download the manufacturer PDFs.
