Description

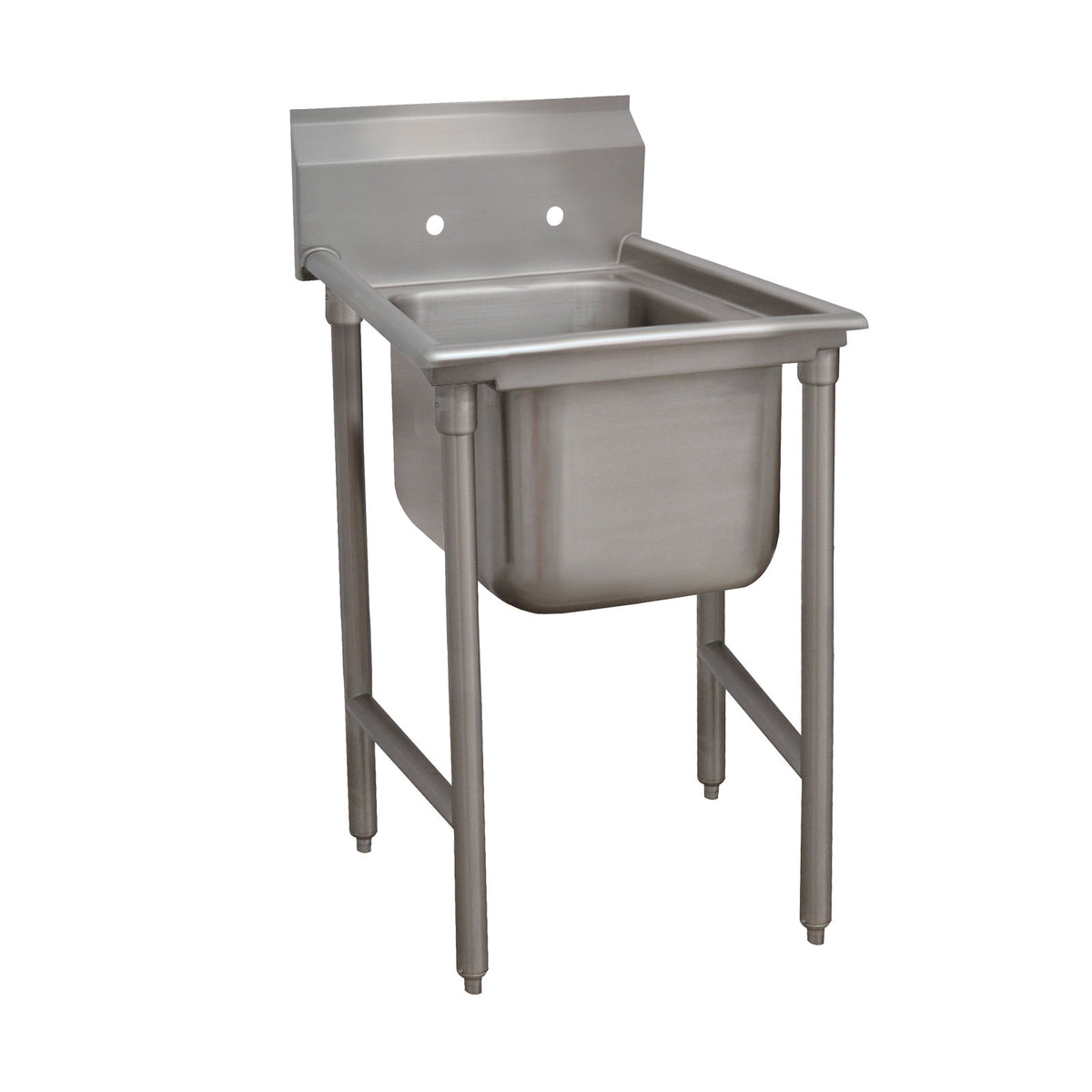

Advance Tabco 93-21-20 — 1 Compartment Sinks
The Advance Tabco 93-21-20 is offered in the configuration shown below. Overall dimensions: 29 in. W × 27 in. D × 42 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- Tile edge for ease of installation.
- One piece Deep Drawn sink bowls with integral drainboards with splash.
- Featuring the single bowl unit design.
- All sink bowls have a large liberal 3” radius.
- All TIG welded.
- Welded areas blended to match adjacent surfaces and to a satin finish.
- 16 gauge type 304 stainless steel 8” High Splash.
- 1 5/8” diameter tubular stainless steel.
- Stainless steel gussets.
- Stainless Steel 1” adjustable bullet feet.
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | 93-21-20 |
| Shipping Weight (Supplier Reference) | 80 lbs |
| Width | 29 in. |
| Depth | 27 in. |
| Height | 42 in. |
| Compartment (front - back) | 20" |
| Compartment Width (side - side) | 20" |
| Drainboards | without drainboards |
| Base Type | legs with side crossrails |
| Base Construction | stainless steel |
| Splash Height | 8" |
| Top Gauge | 16 gauge |
| Top Stainless Series | 300 series |
| Sink Depth (rim - drain) | 12" |
| Certifications | NSF |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features.
Documents and Resources
Available documents: Spec Sheet. Open the product documents section to view or download the manufacturer PDFs.
