Description

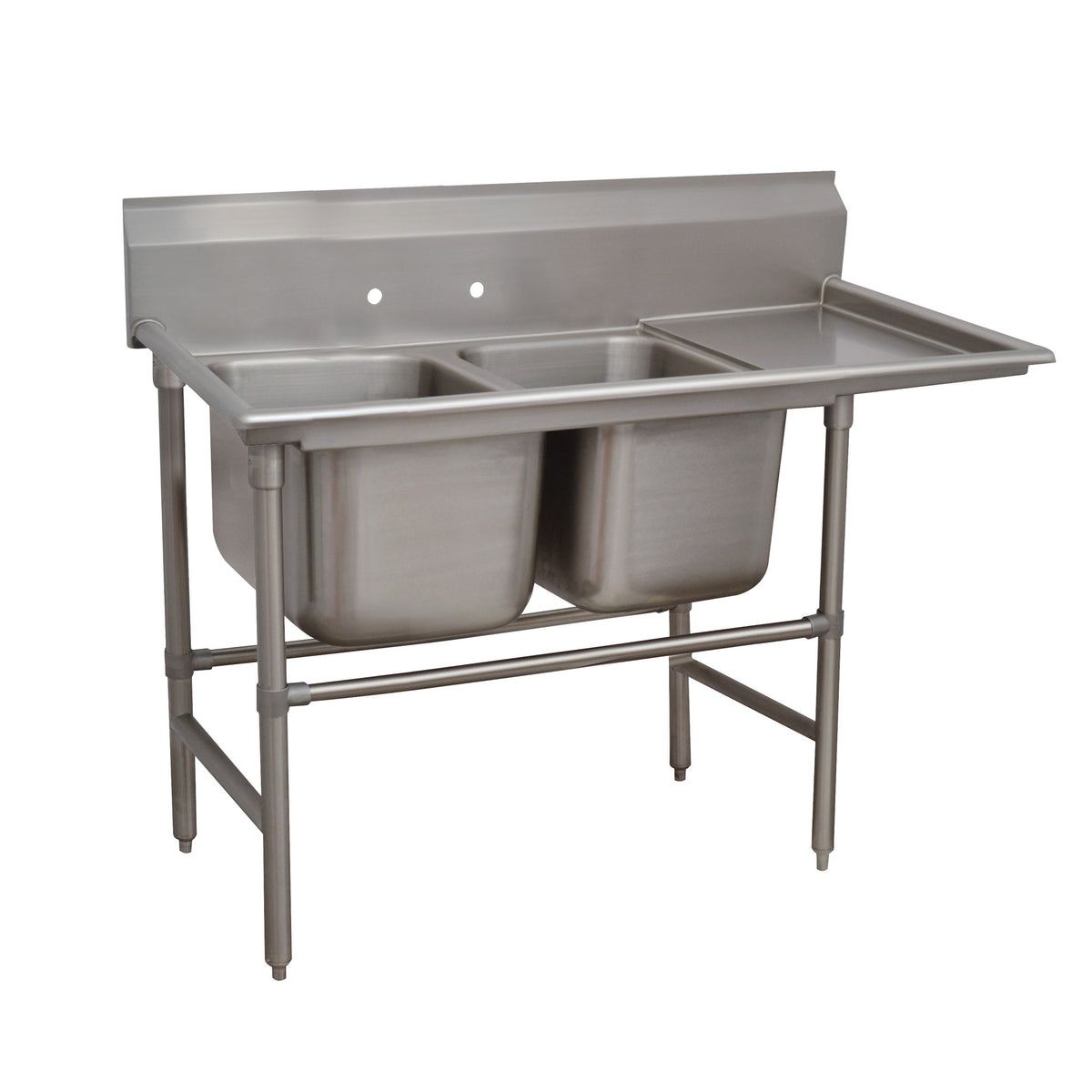

Advance Tabco 94-2-36-24R — 2 Compartment Sinks
The Advance Tabco 94-2-36-24R is offered in the configuration shown below. Overall dimensions: 64 in. W × 27 in. D × 45 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- Regaline Sink
- 2-compartment
- with right-hand drainboard
- 20" front-to-back x 16"W sink compartment
- 14" deep
- with 11"H backsplash
- stainless steel legs with welded front-to-rear & adjustable left-to-right cross rails
- 24" drainboard
- 1" adjustable bullet feet
- 14 gauge 304 stainless steel
- overall 27" F/B x 64" L/R
- NSF
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | 94-2-36-24R |
| Shipping Weight (Supplier Reference) | 115 lbs |
| Width | 64 in. |
| Depth | 27 in. |
| Height | 45 in. |
| Compartment (front - back) | 20" |
| Compartment Width (side - side) | 16" |
| Drainboards | with right-hand drainboard |
| Base Type | legs with front & side crossrails |
| Base Construction | stainless steel |
| Splash Height | 11" |
| Top Gauge | 14 gauge |
| Top Stainless Series | 300 series |
| Sink Depth (rim - drain) | 14" |
| Certifications | NSF |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features.
Documents and Resources
Available documents: Spec Sheet. Open the product documents section to view or download the manufacturer PDFs.
