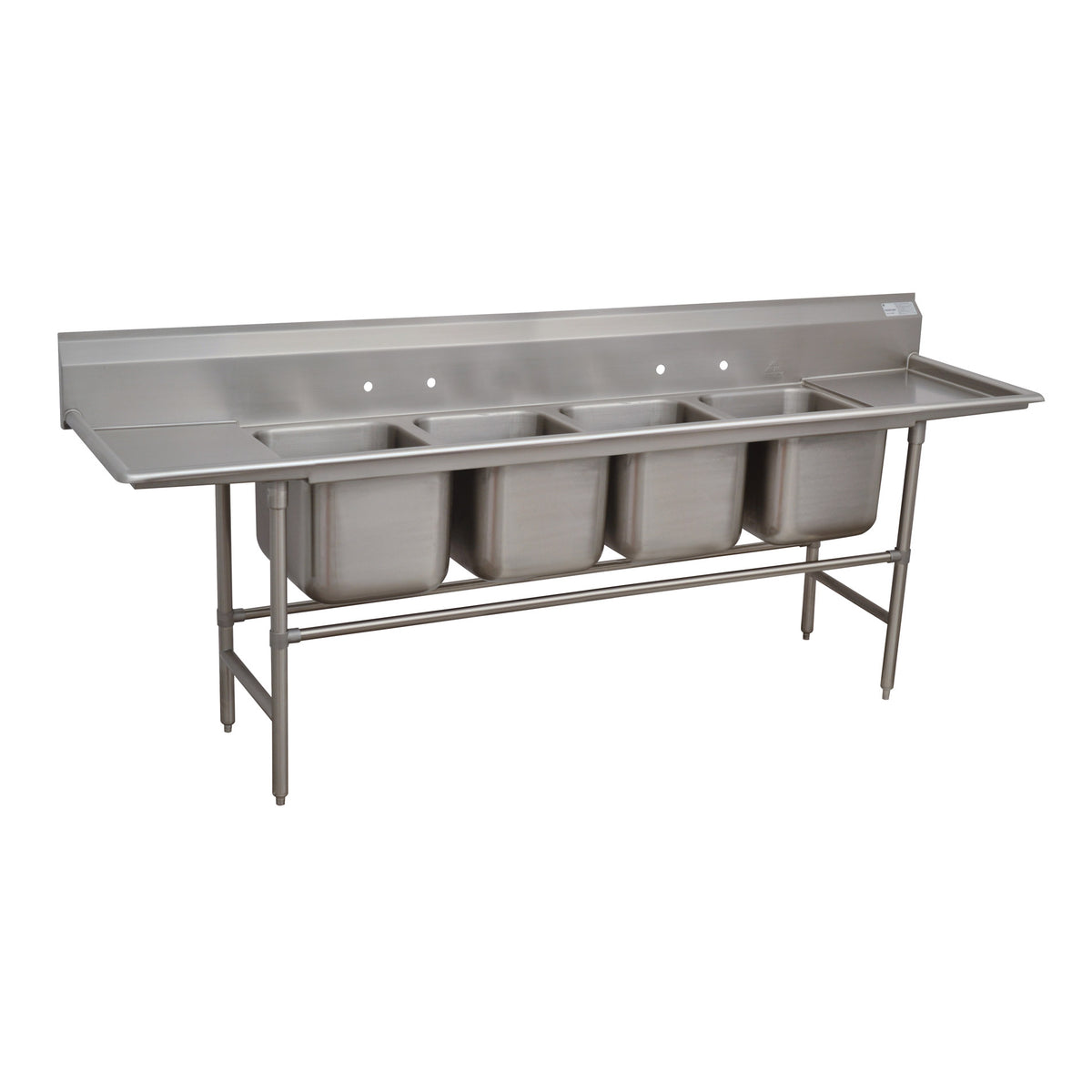

Advance Tabco 94-4-72-24RL — 4 Compartment Sinks
The Advance Tabco 94-4-72-24RL is offered in the configuration shown below. Overall dimensions: 122 in. W × 27 in. D × 45 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- Regaline Sink
- 4-compartment
- with left & right-hand drainboards
- 20" front-to-back x 16"W sink compartments
- 14" deep
- with 11"H backsplash
- stainless steel legs with welded front-to-rear & adjustable left-to-right cross rails
- 24" drainboards
- 1" adjustable bullet feet
- 14 gauge 304 stainless steel
- overall 27" F/B x 122" L/R
- NSF (requires 2 faucets)
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | 94-4-72-24RL |
| Shipping Weight (Supplier Reference) | 275 lbs |
| Width | 122 in. |
| Depth | 27 in. |
| Height | 45 in. |
| Compartment (front - back) | 20" |
| Compartment Width (side - side) | 16" |
| Drainboards | with left & right-hand drainboards |
| Base Type | legs with boxed crossrails |
| Base Construction | stainless steel |
| Splash Height | 11" |
| Top Gauge | 14 gauge |
| Top Stainless Series | 300 series |
| Sink Depth (rim - drain) | 14" |
| Certifications | NSF |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features. Follow the manufacturer manual for assembly and installation.
Documents and Resources
Available documents: Spec Sheet, Plumbing, Installation Manual. Open the product documents section to view or download the manufacturer PDFs.
