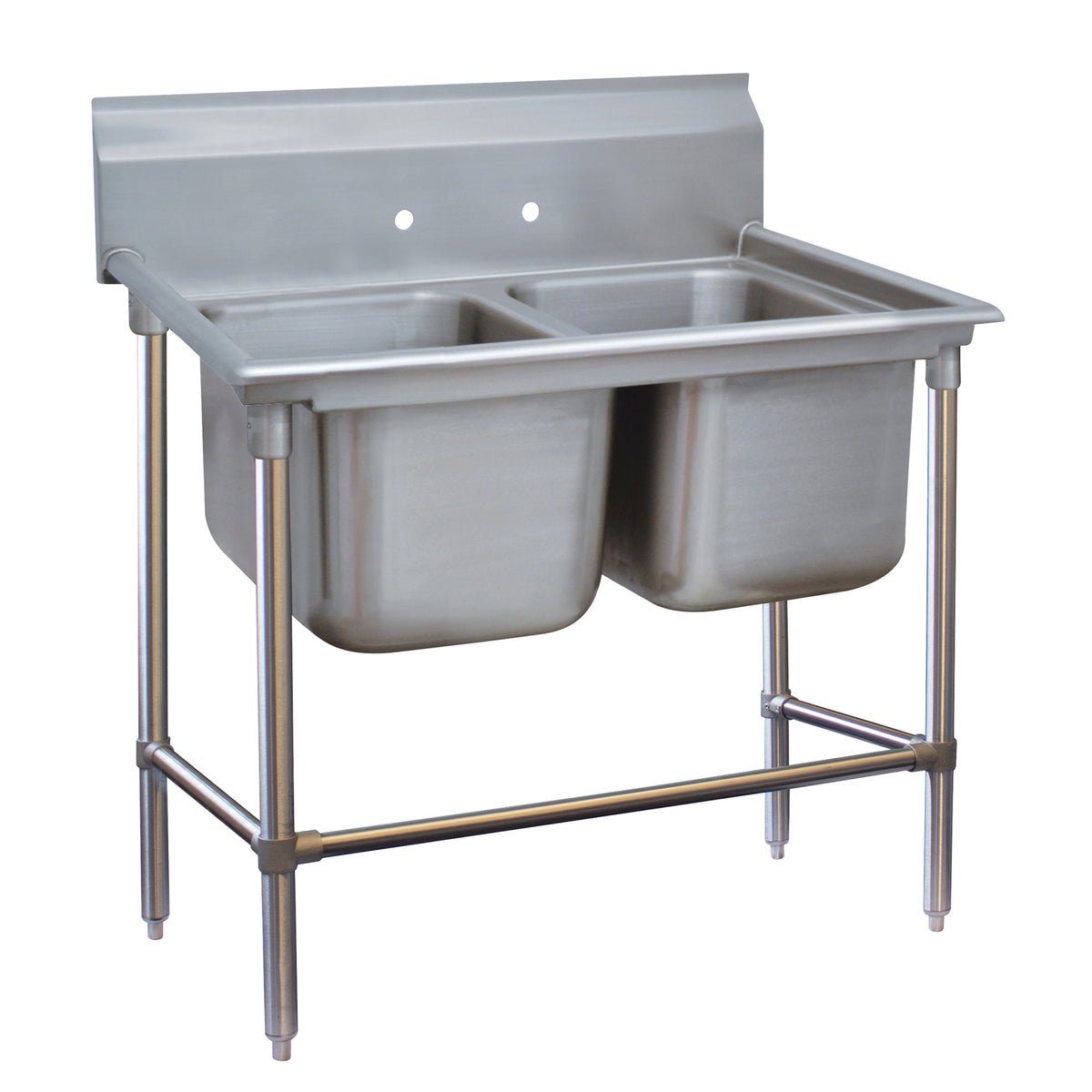

Advance Tabco 94-62-36 — 2 Compartment Sinks
The Advance Tabco 94-62-36 is offered in the configuration shown below. Overall dimensions: 50 in. W × 32 in. D × 45 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- Two 18" x 24" compartments provide 14" deep work bowls with an 11" splash guard.
- 14‑gauge 304 stainless steel construction meets NSF certification for food safety.
- Adjustable stainless steel legs and 1" bullet feet allow precise leveling on uneven floors.
- Front‑to‑back 24" and overall length 40"‑53" fit standard commercial kitchen layouts.
- TIG‑welded, 3/4" radius bowl edges and integrated 1½" IPS waste drains simplify cleaning and installation.
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | 94-62-36 |
| Shipping Weight (Supplier Reference) | 165 lbs |
| Width | 50 in. |
| Depth | 32 in. |
| Height | 45 in. |
| Compartment (front - back) | 24" |
| Compartment Width (side - side) | 18" |
| Drainboards | without drainboards |
| Base Type | legs with front & side crossrails |
| Base Construction | stainless steel |
| Splash Height | 11" |
| Top Gauge | 14 gauge |
| Top Stainless Series | 300 series |
| Sink Depth (rim - drain) | 14" |
| Certifications | NSF |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features.
Documents and Resources

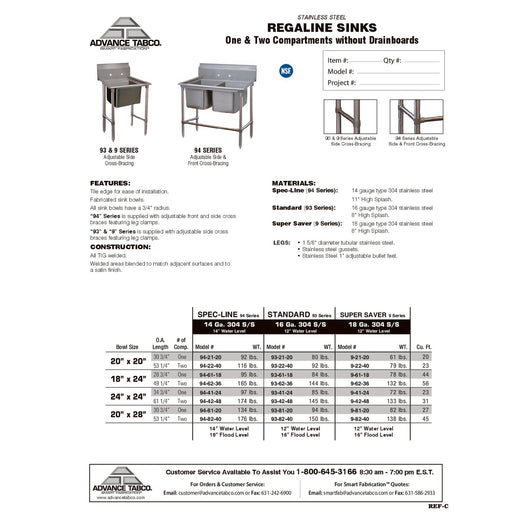

Available documents: Spec Sheet. Open the product documents section to view or download the manufacturer PDFs.
