Description

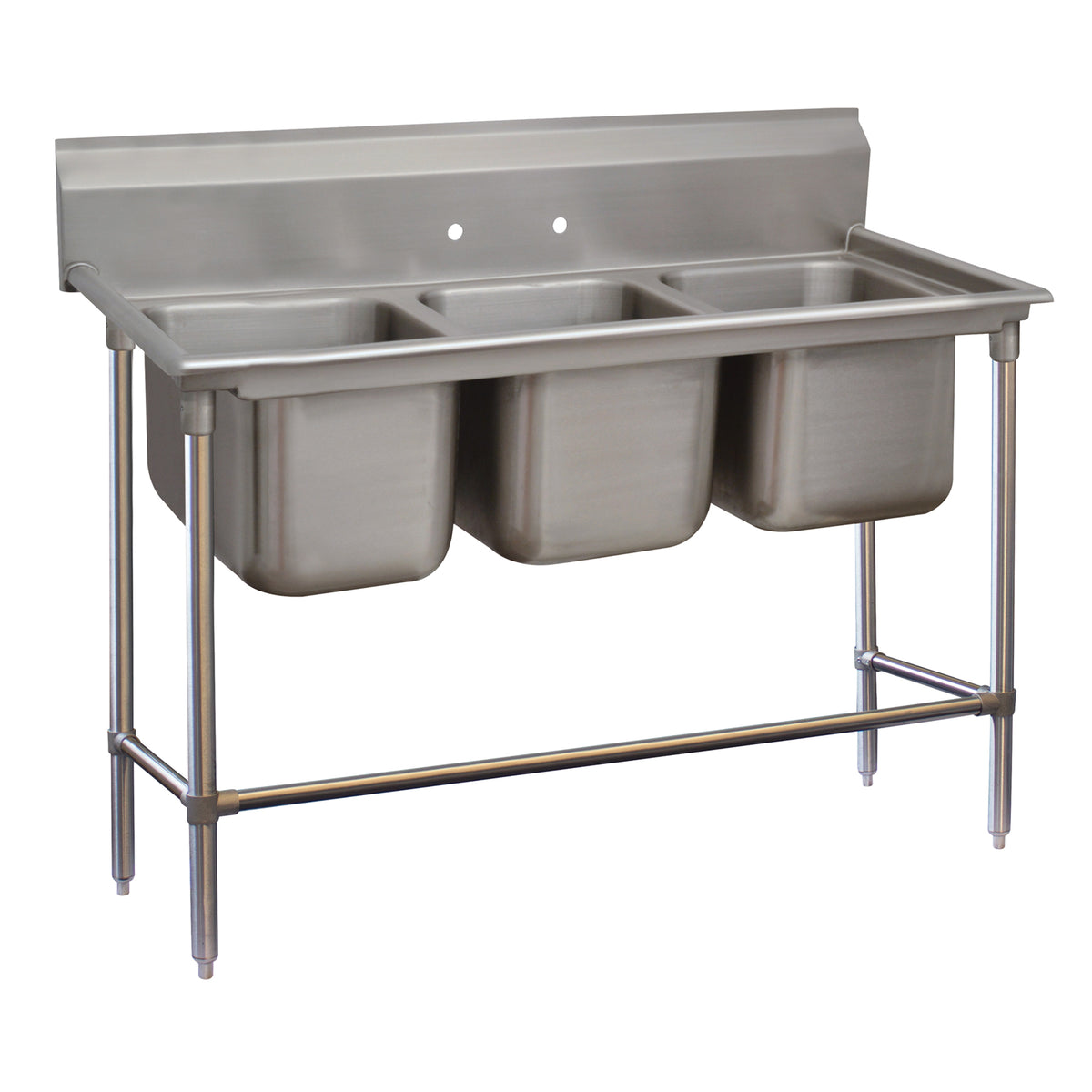

Advance Tabco 94-63-54 — 3 Compartment Sinks
The Advance Tabco 94-63-54 is offered in the configuration shown below. Overall dimensions: 70 in. W × 32 in. D × 45 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- Three 18"×24" compartments with 11" splash height provide ample prep space.
- 14‑ga 304 stainless steel, NSF‑listed for food‑service durability.
- Adjustable stainless legs with 1" bullet feet and cross‑rails level on any floor.
- Overall size 32" F/B × 70" L/R fits standard kitchen footprints.
- TIG‑welded bowls with 3/4" radius edges and built‑in 1½" IPS waste drains.
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | 94-63-54 |
| Shipping Weight (Supplier Reference) | 249 lbs |
| Width | 70 in. |
| Depth | 32 in. |
| Height | 45 in. |
| Compartment (front - back) | 24" |
| Compartment Width (side - side) | 18" |
| Drainboards | without drainboards |
| Base Type | legs with boxed crossrails |
| Base Construction | stainless steel |
| Splash Height | 11" |
| Top Gauge | 14 gauge |
| Top Stainless Series | 300 series |
| Sink Depth (rim - drain) | 14" |
| Certifications | NSF |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features.
Documents and Resources

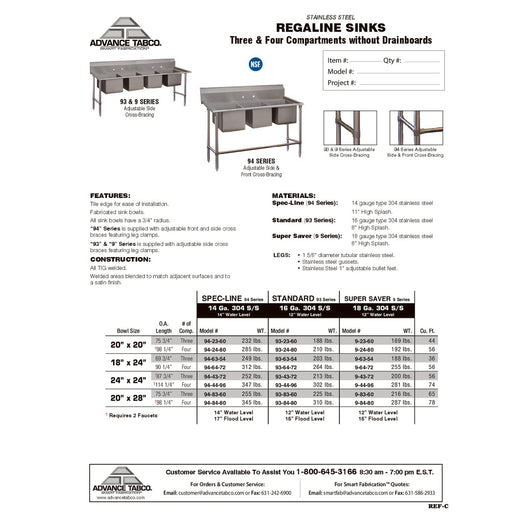

Available documents: Spec Sheet. Open the product documents section to view or download the manufacturer PDFs.
