Description

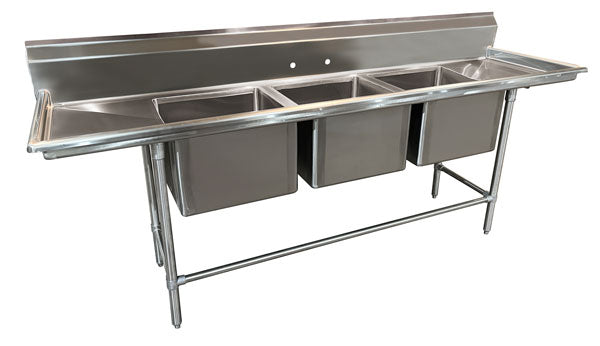

Advance Tabco 94-63-54-24RL — 3 Compartment Sinks
The Advance Tabco 94-63-54-24RL is offered in the configuration shown below. Overall dimensions: 111 in. W × 32 in. D × 45 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- 14 ga 304 stainless steel body is NSF‑listed for food‑service durability.
- Each compartment measures 24" × 18" and 14" deep, with an 11" splash guard.
- Adjustable stainless‑steel legs and 1" bullet feet accommodate overall lengths from 109" to 170".
- Left‑hand and right‑hand 24" drainboards keep rinsed ware organized and free‑standing.
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | 94-63-54-24RL |
| Shipping Weight (Supplier Reference) | 334 lbs |
| Width | 111 in. |
| Depth | 32 in. |
| Height | 45 in. |
| Compartment (front - back) | 24" |
| Compartment Width (side - side) | 18" |
| Drainboards | with left & right-hand drainboards |
| Base Type | legs with boxed crossrails |
| Base Construction | stainless steel |
| Splash Height | 11" |
| Top Gauge | 14 gauge |
| Top Stainless Series | 300 series |
| Sink Depth (rim - drain) | 14" |
| Certifications | NSF |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features.
Documents and Resources

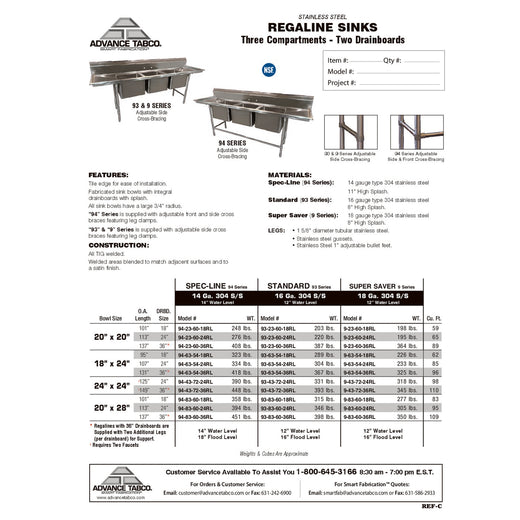

Available documents: Spec Sheet. Open the product documents section to view or download the manufacturer PDFs.
