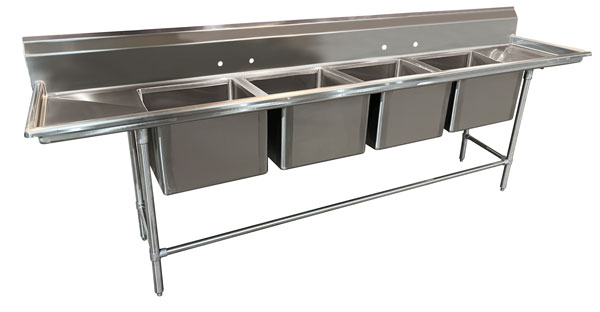

Advance Tabco 94-64-72-24RL — 4 Compartment Sinks
The Advance Tabco 94-64-72-24RL is offered in the configuration shown below. Overall dimensions: 132 in. W × 32 in. D × 45 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- Four 14‑gauge 304 stainless steel bowls, each 24" × 18" and 14" deep, provide ample volume for washing, rinsing, sanitizing and draining.
- Integrated left and right 24" drainboards channel runoff and keep work areas dry.
- Stainless‑steel legs with adjustable 1" bullet feet and cross‑rails allow precise leveling from 130" to 198" overall length.
- NSF certification guarantees compliance with commercial kitchen sanitation standards.
- TIG‑welded, satin‑finished construction and an 11" high splash edge reduce water splatter and protect staff.
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | 94-64-72-24RL |
| Shipping Weight (Supplier Reference) | 372 lbs |
| Width | 132 in. |
| Depth | 32 in. |
| Height | 45 in. |
| Compartment (front - back) | 24" |
| Compartment Width (side - side) | 18" |
| Drainboards | with left & right-hand drainboards |
| Base Type | legs with boxed crossrails |
| Base Construction | stainless steel |
| Splash Height | 11" |
| Top Gauge | 14 gauge |
| Top Stainless Series | 300 series |
| Sink Depth (rim - drain) | 14" |
| Certifications | NSF |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features.
Documents and Resources

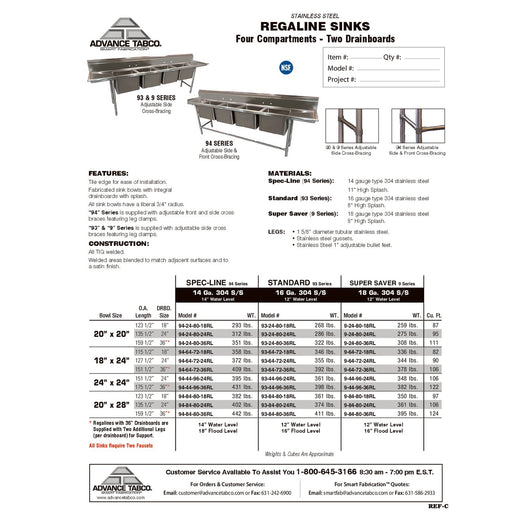

Available documents: Spec Sheet. Open the product documents section to view or download the manufacturer PDFs.
