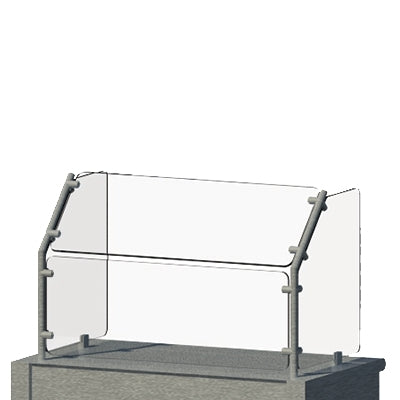

Advance Tabco AFC-48 — Restaurant Sneeze Guards
The Advance Tabco AFC-48 is offered in the configuration shown below. Overall dimensions: 48 in. W × 18 in. D × 23.38 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- 45° angled front with fixed 1/4" heat‑tempered glass for optimal line‑of‑sight and splash protection.
- 48" overall length, 23‑3/8" height, and 1" stainless‑steel tubing with end caps for sturdy, long‑lasting support.
- Side panels 1/4" thick, 18" deep to meet NSF side‑panel requirements and prevent cross‑contamination.
- All TIG‑welded construction with standard concealed mounting hardware; requires underside counter access.
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | AFC-48 |
| Shipping Weight (Supplier Reference) | 178 lbs |
| Width | 48 in. |
| Depth | 18 in. |
| Height | 23.38 in. |
| Type | single-sided |
| Service | full-service |
| Frame Construction | stainless steel |
| Certifications | NSF |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features.
Documents and Resources

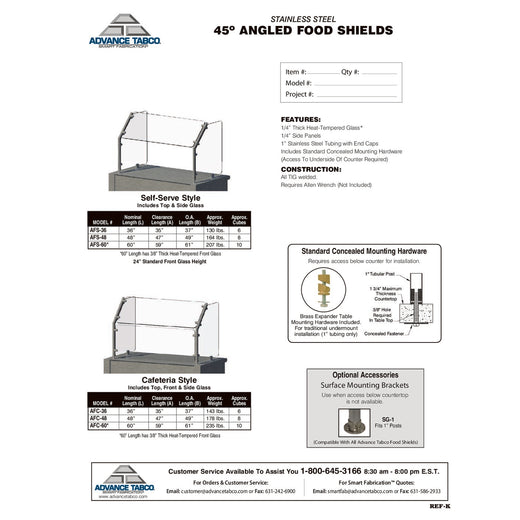

Available documents: Spec Sheet. Open the product documents section to view or download the manufacturer PDFs.
