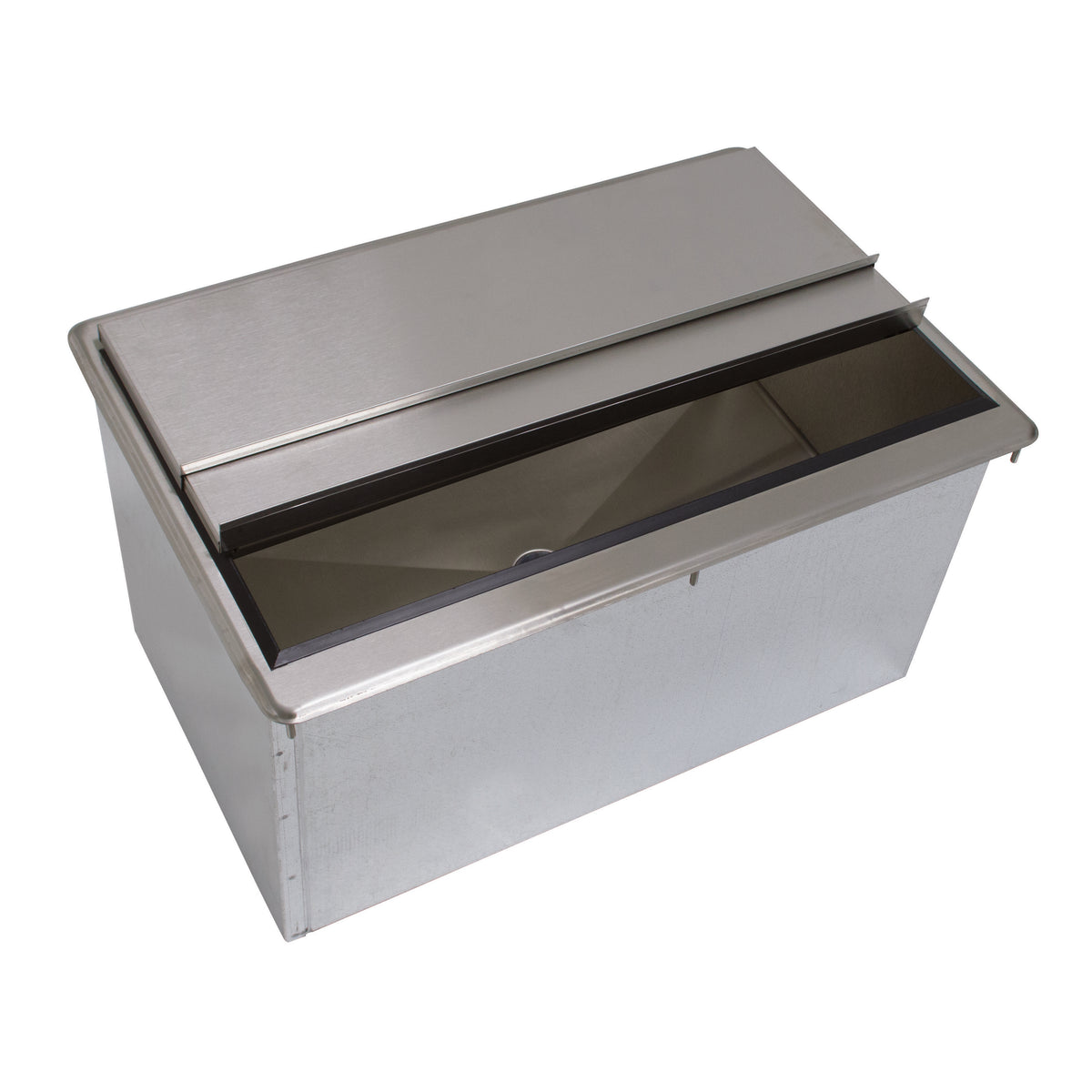

Advance Tabco D-30-IBL-7 — Underbar Ice Bins and Cocktail Bins
The Advance Tabco D-30-IBL-7 is offered in the configuration shown below. Overall dimensions: 27 in. W × 18 in. D × 14 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- Ice Bin
- drop-in
- 62-lb ice capacity
- 27”W x 18”D x 14" deep overall (bin size 24"W x 13-1/2"D x 11" deep)
- built-in 7-circuit cold plate
- removable stainless steel sliding cover
- insulated
- 1/2" diameter drain
- NSF (cutout size 15-1/4" x 26-3/8")
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | D-30-IBL-7 |
| Shipping Weight (Supplier Reference) | 107 lbs |
| Width | 27 in. |
| Depth | 18 in. |
| Height | 14 in. |
| Ice Bins and Cocktail Bins Type | drop in |
| Ice Capacity | 15 - 69 lbs. |
| Ice Capacity (approximate) | 62 lbs. |
| Construction | stainless steel |
| Cover | sliding cover |
| Cold Plate | (7) circuit |
| Splash | without backsplash |
| Certifications | NSF |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features.
Documents and Resources

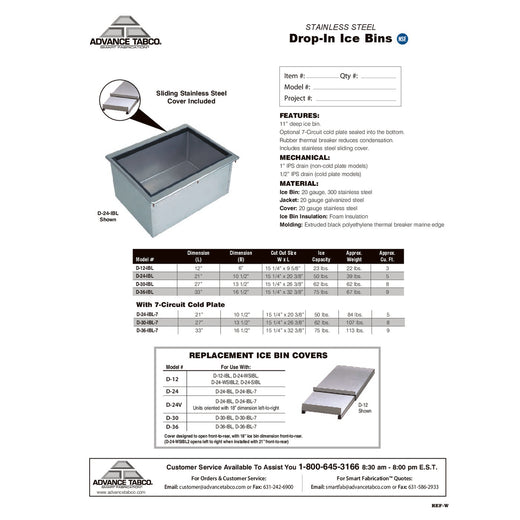

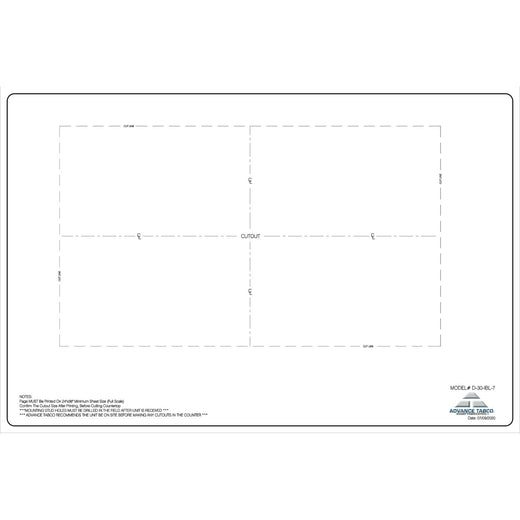

Available documents: Spec Sheet, Template. Open the product documents section to view or download the manufacturer PDFs.
