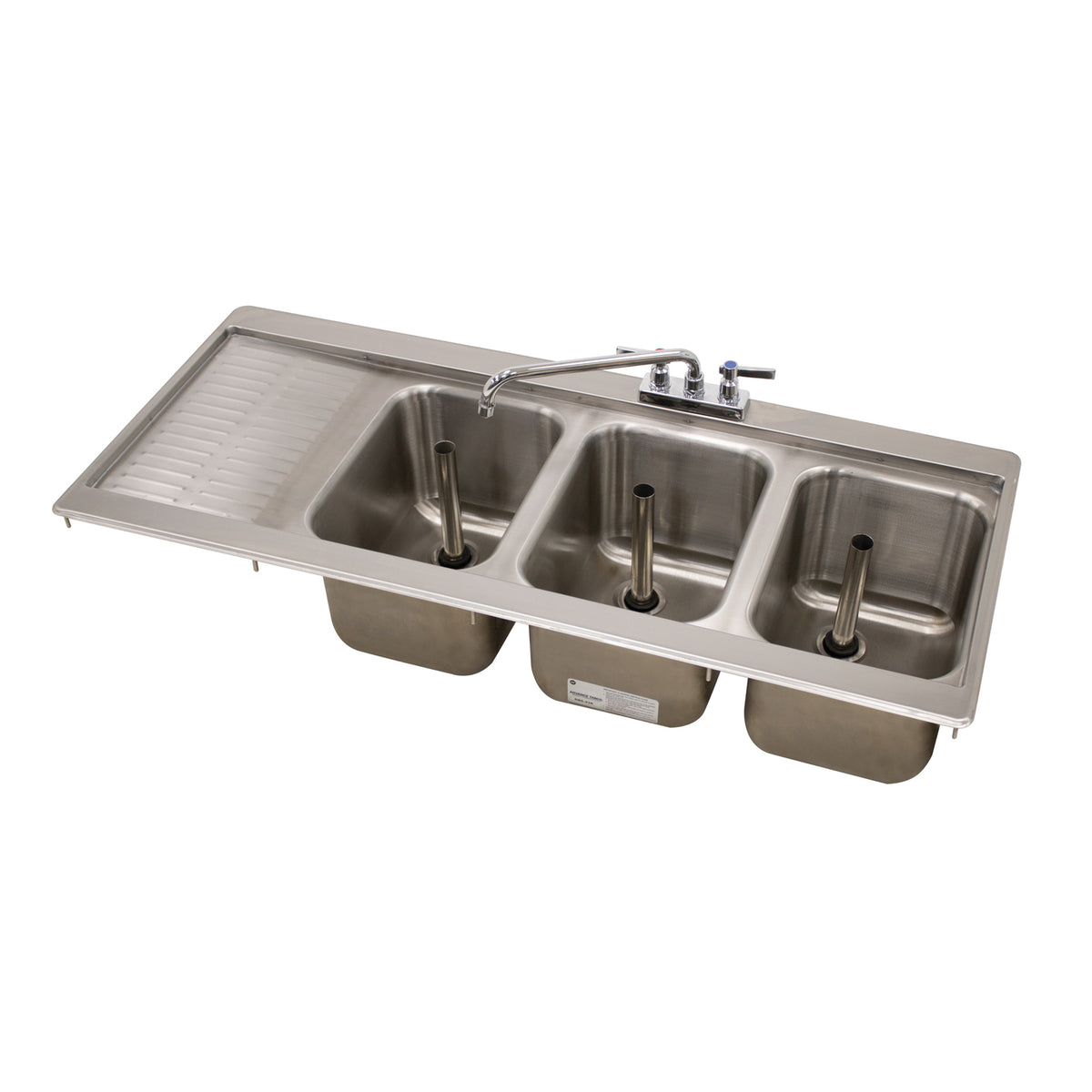

Advance Tabco DBS-43R — Commercial Drop In Sinks
The Advance Tabco DBS-43R is offered in the configuration shown below. Overall dimensions: 48.31 in. W × 21.13 in. D × 11.8 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- Bar Sink
- drop-in
- 48-5/16"W x 21-1/8"D x 11-8/10"H (overall)
- (3) 10"W x 14"D x 10" deep sink bowls with 1-1/2" I.P.S. drains
- (1) 12" left-side drainboard
- includes: (1) 4" deck mount faucet with 12" spout & (3) 9" overflow pipes
- 20 gauge 300 series stainless steel
- NSF (cutout size 17" x 47")
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | DBS-43R |
| Shipping Weight (Supplier Reference) | 88 lbs |
| Width | 48.31 in. |
| Depth | 21.13 in. |
| Height | 11.8 in. |
| Drainboards | drainboard on left |
| Bowl Size | 10" x 14" front-to-back |
| Sink Compartments | (3) |
| Width (side - side) OA | 43" - 48" |
| Depth (front - back) OA | 21" |
| Certifications | NSF |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features.
Documents and Resources

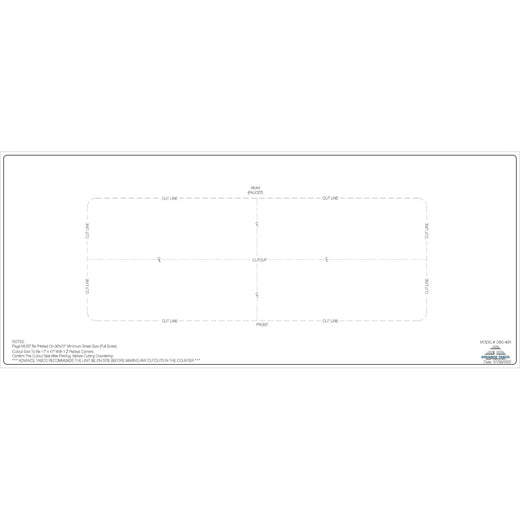

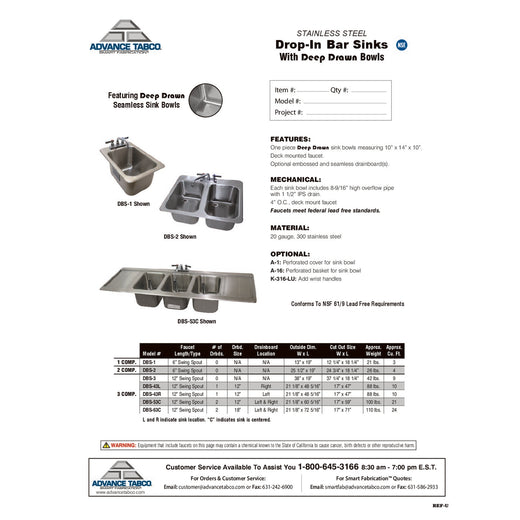

Available documents: Spec Sheet, Template. Open the product documents section to view or download the manufacturer PDFs.
