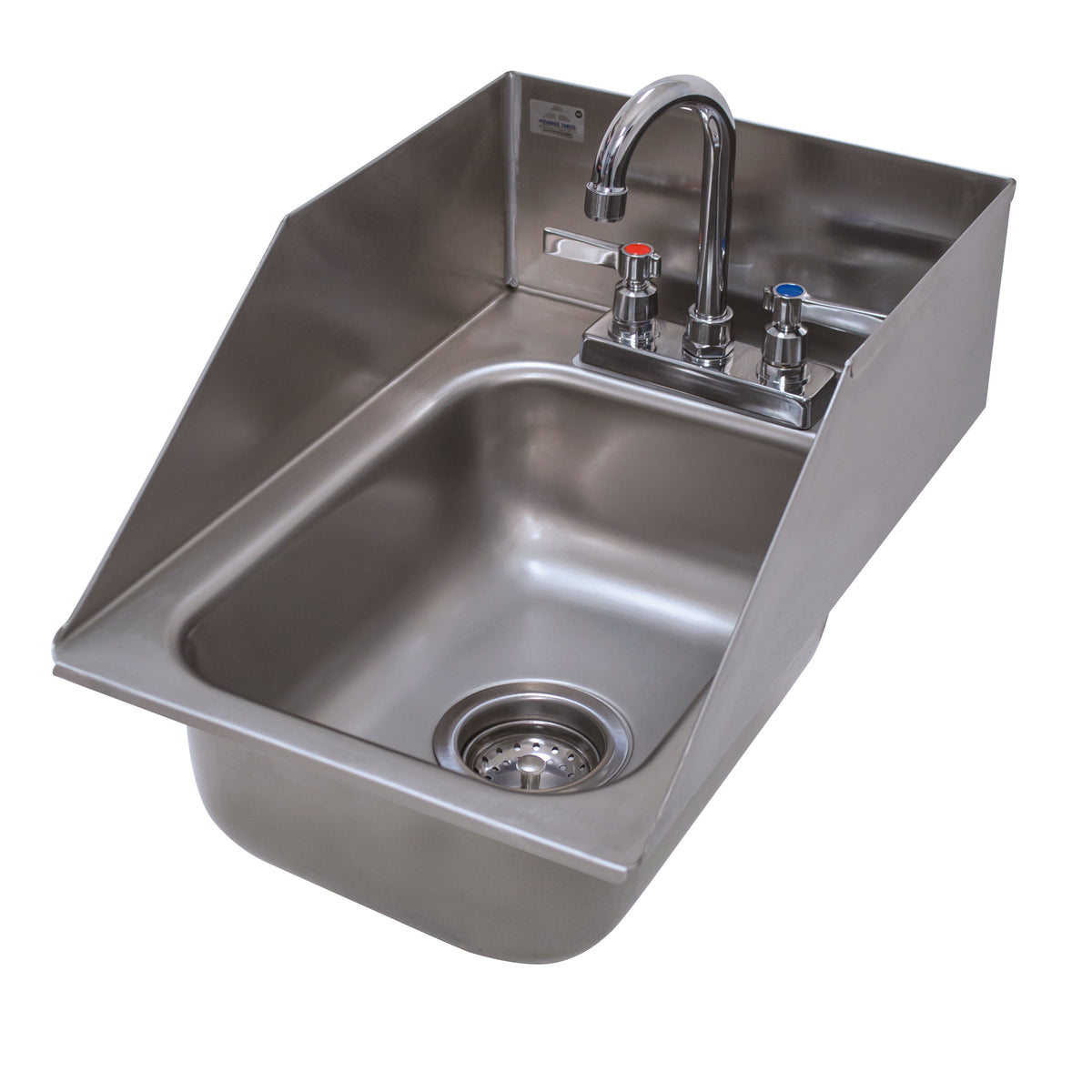

Advance Tabco DI-1-10SP — Commercial Drop In Sinks
The Advance Tabco DI-1-10SP is offered in the configuration shown below. Overall dimensions: 12 in. W × 18.5 in. D × 16 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- Drop-In Sink
- 1-compartment
- 12"W x 18-1/2"D O.A.
- 10"W x 14"D front-to-back x 10" deep bowl
- 6" backsplash
- 6" tapered side splash
- includes: gooseneck deck mounted faucet 4" O.C. & 3-1/2" stainless steel drain with basket
- 20/304 stainless steel
- NSF (mounting brackets & nuts included)
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | DI-1-10SP |
| Shipping Weight (Supplier Reference) | 18 lbs |
| Width | 12 in. |
| Depth | 18.5 in. |
| Height | 16 in. |
| Ice Bins and Cocktail Bins Type | drop in |
| Drainboards | without drainboards |
| Bowl Width (side - side) | 10" width |
| Bowl Depth (front - back) | 14" depth |
| Bowl Deep (rim - drain) | 10" deep |
| Certifications | NSF |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features.
Documents and Resources

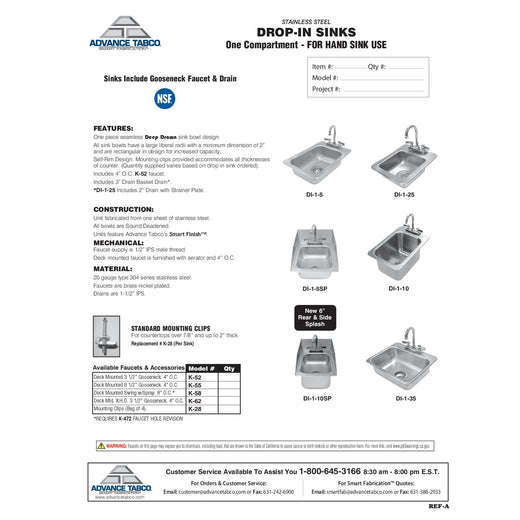

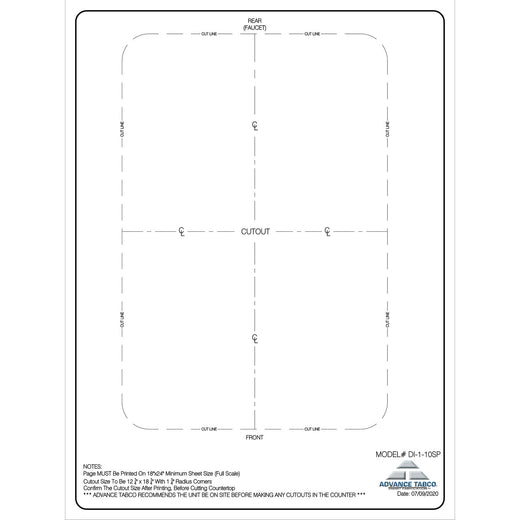

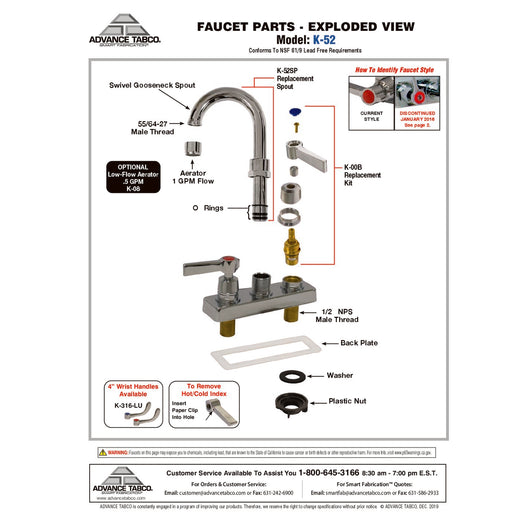

Available documents: Spec Sheet, Parts List, Template. Open the product documents section to view or download the manufacturer PDFs.
