Advance Tabco DI-1-5 — Commercial Drop In Sinks
The Advance Tabco DI-1-5 is offered in the configuration shown below. Overall dimensions: 13 in. W × 19 in. D × 5 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features

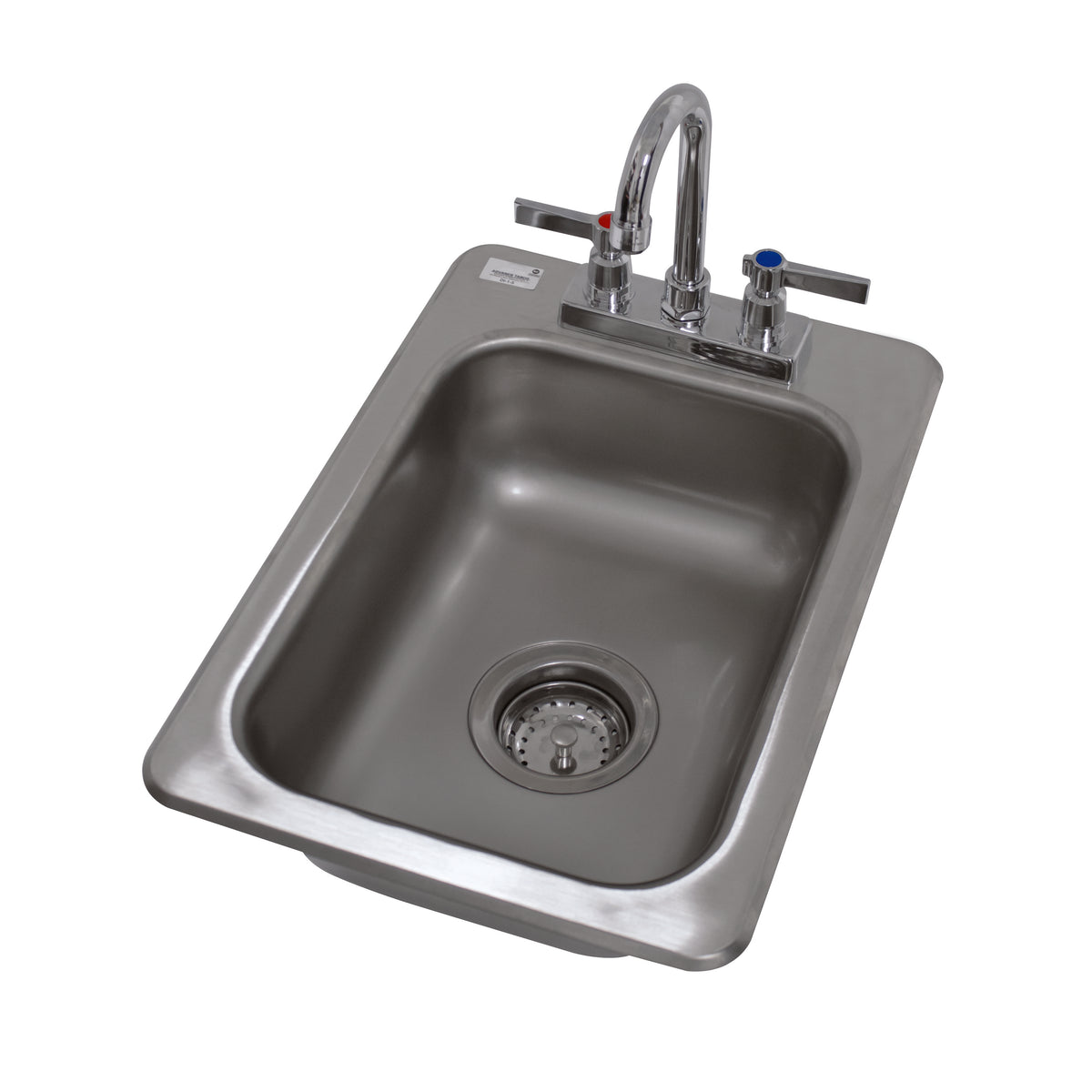

- Drop-In Bar Hand Sink
- 13"W x 19"D overall
- 10"W x 14"D front-to-back x 5" deep bowl
- 20/304 stainless steel
- includes: K-52 deck mounted gooseneck faucet
- 3-1/2" basket drain

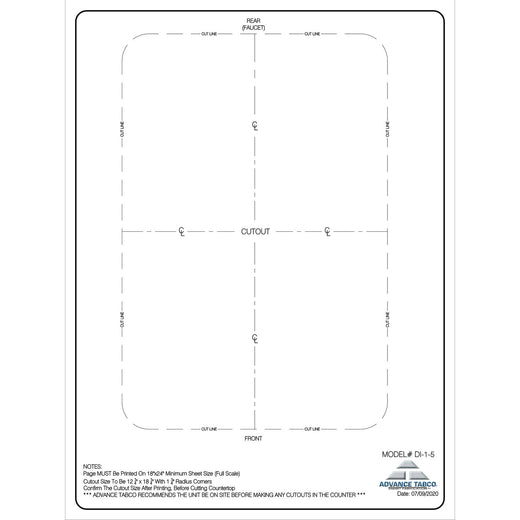

- NSF (cutout size 12-1/4"W x 18-1/4"D)
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | DI-1-5 |
| Shipping Weight (Supplier Reference) | 12 lbs |
| Width | 13 in. |
| Depth | 19 in. |
| Height | 5 in. |
| Ice Bins and Cocktail Bins Type | drop in |
| Drainboards | without drainboards |
| Bowl Width (side - side) | 10" width |
| Bowl Depth (front - back) | 14" depth |
| Bowl Deep (rim - drain) | 5" deep |
| Certifications | NSF |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features.
Documents and Resources
Available documents: Spec Sheet, Parts List, Template, Installat. Open the product documents section to view or download the manufacturer PDFs.
