Description

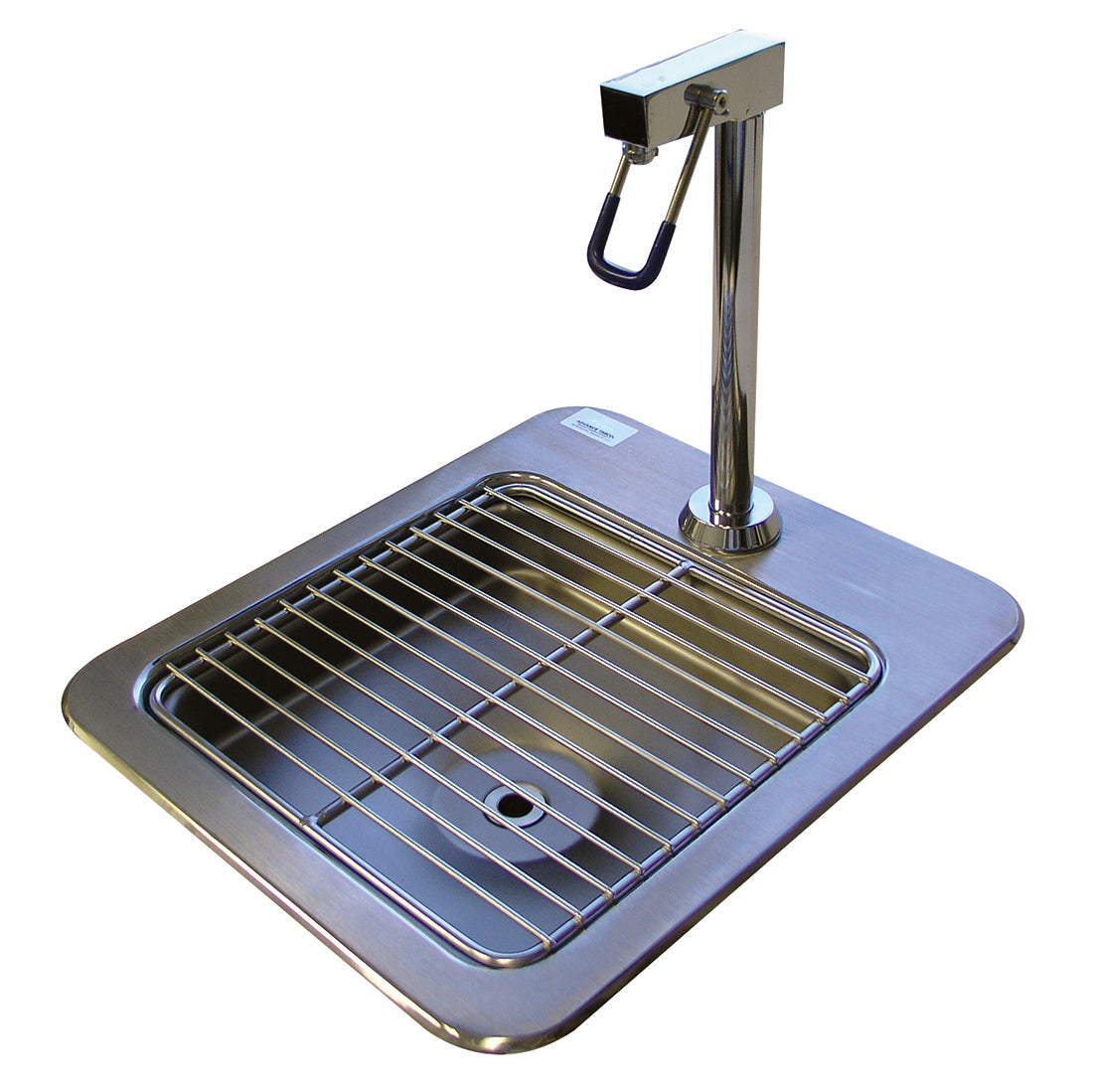

Advance Tabco DI-1-9 — Glass Filler Faucets and Water Stations
The Advance Tabco DI-1-9 is offered in the configuration shown below. Overall dimensions: 12 in. W × 14 in. D × 3 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- Drop-In Filler Station
- 9" x 9" x 3" deep bowl
- Deep Drawn™ sink bowl
- fits in cut-out 11-1/4" x 13-1/4"
- includes: 9-1/4"H water filler faucet (K-54) & grating
- 20 gauge 304 stainless steel
- NSF
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | DI-1-9 |
| Shipping Weight (Supplier Reference) | 15 lbs |
| Width | 12 in. |
| Depth | 14 in. |
| Height | 3 in. |
| Certifications | NSF |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features. Follow the manufacturer manual for assembly and installation.
Documents and Resources

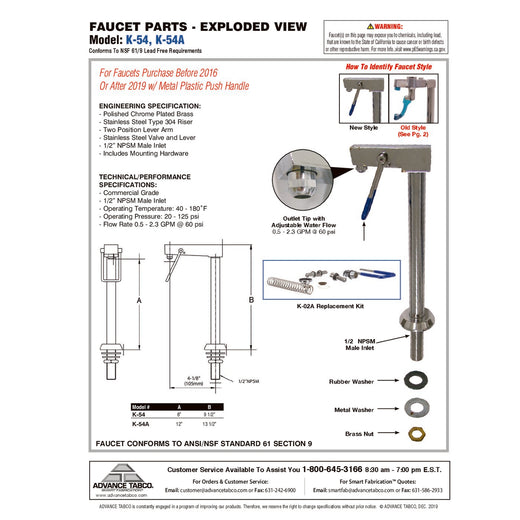

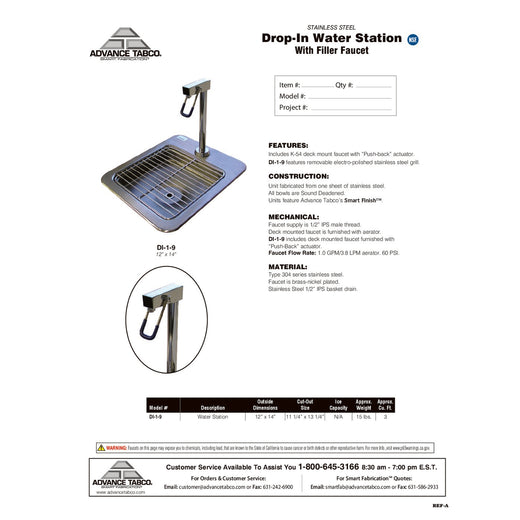

Available documents: Spec Sheet, Parts List, Installation Manual. Open the product documents section to view or download the manufacturer PDFs.
