Description

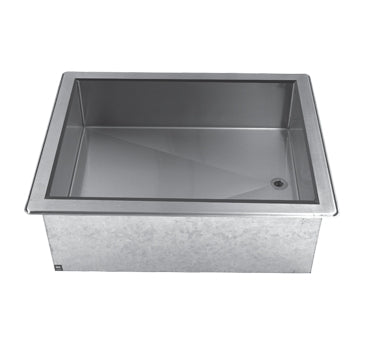

Advance Tabco DICP-3 — Drop-In Cold Food Wells
The Advance Tabco DICP-3 is offered in the configuration shown below. Overall dimensions: 47 in. W × 26.75 in. D × 12.94 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- 9‑inch deep stainless steel ice bin holds 155 lb of ice, ensuring long‑lasting cooling for busy kitchens.
- Accommodates three 12" x 20" pans up to 6¼" deep, with extra space for ice to maintain uniform temperature.
- Exterior built from 20 gauge galvanized steel with black polyethylene thermal breaker and foam insulation for energy efficiency.
- NSF‑listed construction with 18 gauge #304 stainless steel self‑rimmed top and 20 gauge #300 stainless steel ice bin for durability and hygiene.
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | DICP-3 |
| Shipping Weight (Supplier Reference) | 165 lbs |
| Width | 47 in. |
| Depth | 26.75 in. |
| Height | 12.94 in. |
| Pan Qty | 3-pan |
| Layout | straight |
| Width (side - side) OA | 43 - 48 inches |
| Depth (front-to-back) OA | 25 - 30 inches |
| Interior Liner | stainless steel |
| Exterior Liner | galvanized steel |
| Certifications | NSF |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features.
Documents and Resources

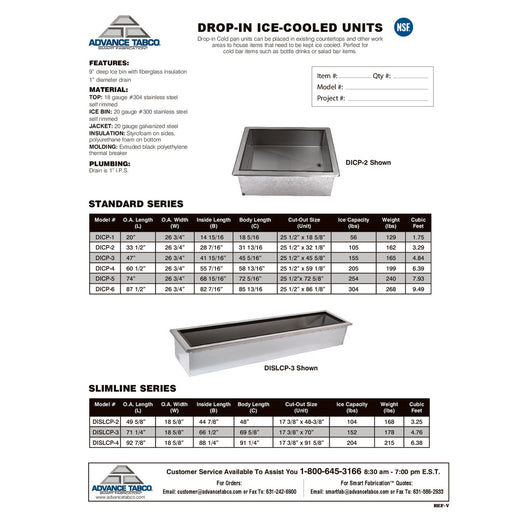

Available documents: Spec Sheet. Open the product documents section to view or download the manufacturer PDFs.
