Description

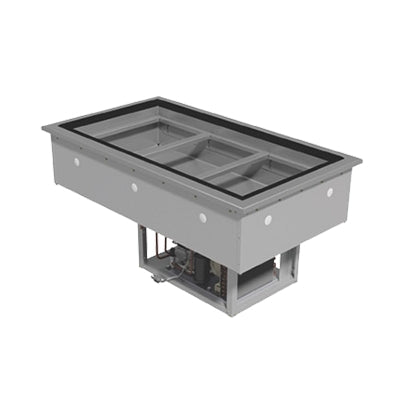

Advance Tabco DIRCP-3 — Drop-In Cold Food Wells
The Advance Tabco DIRCP-3 is offered in the configuration shown below. Overall dimensions: 47 in. W × 26.75 in. D × 24.13 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- Fits 25‑1/2" × 45‑5/8" cut‑out, holds three 12" × 20" pans.
- Stainless‑steel top and 18‑gauge #304 liner for hygiene.
- Fully insulated with 1‑1/4" foam sides, 2" bottom, galvanized jacket.
- Self‑contained unit with R404‑A, copper evaporator, digital thermostat.
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | DIRCP-3 |
| Shipping Weight (Supplier Reference) | 257 lbs |
| Width | 47 in. |
| Depth | 26.75 in. |
| Height | 24.13 in. |
| Style | refrigerated |
| Insulation | insulated |
| Pan Size | full-size (12" x 20") |
| Finish | stainless steel top & inner liner, galvanized outer liner |
| Pan Qty | 3-pan |
| Layout | straight |
| Certifications | ETL-Sanitation, ETLus |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features. Follow the manufacturer manual for assembly and installation.
Documents and Resources
Available documents: Spec Sheet, Installation Manual. Open the product documents section to view or download the manufacturer PDFs.
