Description

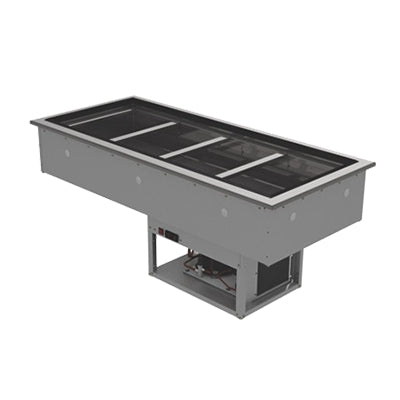

Advance Tabco DIRCP-4 — Drop-In Cold Food Wells
The Advance Tabco DIRCP-4 is offered in the configuration shown below. Overall dimensions: 60.5 in. W × 26.75 in. D × 24.13 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- Fits four 12" × 20" pans and inserts up to 6¼" deep for versatile cold storage.
- Stainless-steel top/liner with galvanized outer jacket, ETL‑Sanitation certified.
- Self-contained R404-A system with copper-tube evaporator and expansion valve, 115 V, 8 A.
- Digital thermostat gives exact temperature; sight glass and filter drier maintain cleanliness.
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | DIRCP-4 |
| Shipping Weight (Supplier Reference) | 325 lbs |
| Width | 60.5 in. |
| Depth | 26.75 in. |
| Height | 24.13 in. |
| Style | refrigerated |
| Insulation | insulated |
| Pan Size | full-size (12" x 20") |
| Finish | stainless steel top & inner liner, galvanized outer liner |
| Pan Qty | 4-pan |
| Layout | straight |
| Certifications | ETL-Sanitation, ETLus |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features. Follow the manufacturer manual for assembly and installation.
Documents and Resources
Available documents: Spec Sheet, Installation Manual. Open the product documents section to view or download the manufacturer PDFs.
