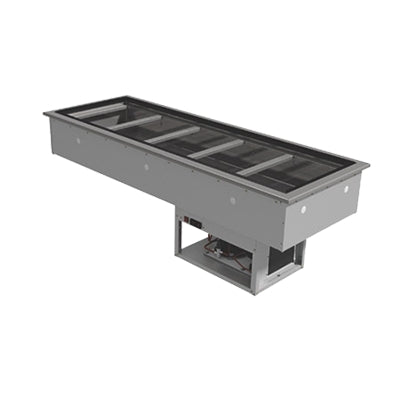

Advance Tabco DIRCP-5 — Drop-In Cold Food Wells
The Advance Tabco DIRCP-5 is offered in the configuration shown below. Overall dimensions: 74 in. W × 26.75 in. D × 24.13 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- Fits a 25-1/2" × 72-5/8" cut‑out and holds five full‑size 12" × 20" pans with 6¼" depth clearance.
- Fully insulated stainless‑steel top and 22‑gauge galvanized outer liner reduce heat gain.
- Digital programmable thermostat with precision electronic control for exact temperature.
- Self‑contained condensing unit uses R404‑A refrigerant, expansion valve and low‑current 115 V/8 A circuit.
- ETL‑US and ETL‑Sanitation certified (certifications 29212, 29198) for commercial foodservice compliance.
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | DIRCP-5 |
| Shipping Weight (Supplier Reference) | 365 lbs |
| Width | 74 in. |
| Depth | 26.75 in. |
| Height | 24.13 in. |
| Style | refrigerated |
| Insulation | insulated |
| Pan Size | full-size (12" x 20") |
| Finish | stainless steel top & inner liner, galvanized outer liner |
| Pan Qty | 5-pan |
| Layout | straight |
| Certifications | ETL-Sanitation, ETLus |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features. Follow the manufacturer manual for assembly and installation.
Documents and Resources

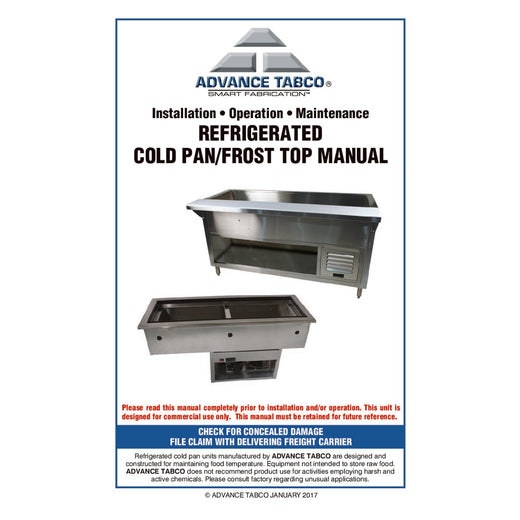

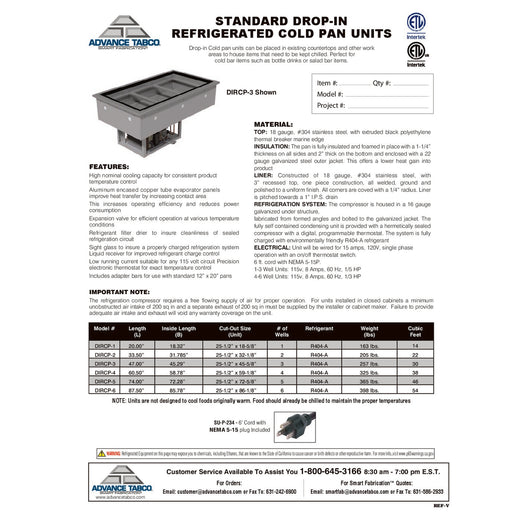

Available documents: Spec Sheet, Installation Manual. Open the product documents section to view or download the manufacturer PDFs.
