Description

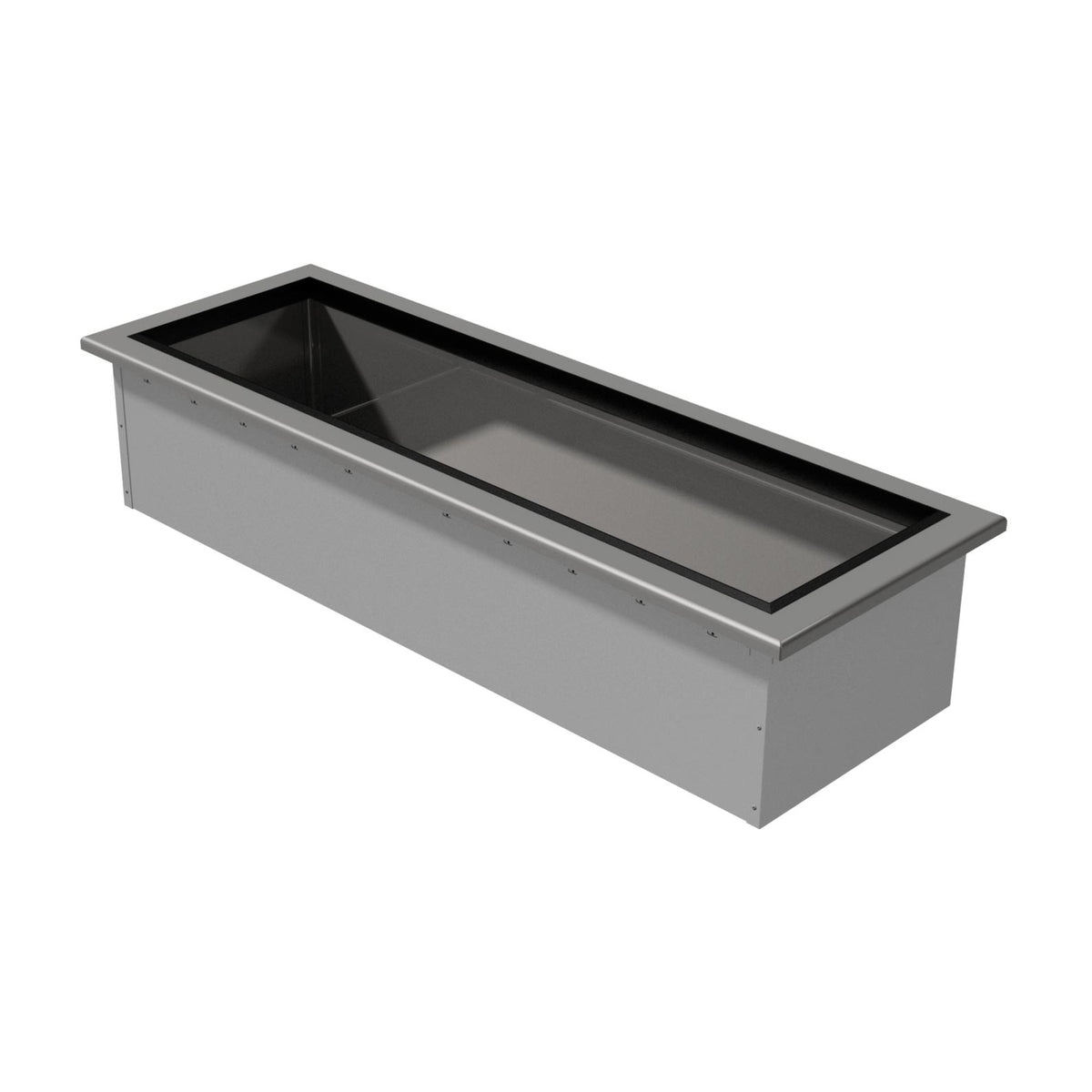

Advance Tabco DISLCP-2 — Drop-In Cold Food Wells
The Advance Tabco DISLCP-2 is offered in the configuration shown below. Overall dimensions: 49.63 in. W × 18.63 in. D × 12.94 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- Holds two 12" × 20" pans up to 6¼" deep with extra ice space for continuous cold service.
- 9" insulated ice bin with 1" IPS drain maintains temperature and simplifies drainage.
- Built with 18‑gauge #304 stainless steel top, 20‑gauge #300 stainless steel ice bin, and 20‑gauge galvanized steel jacket for robust commercial use.
- Overall size 49‑5/8" W × 18‑5/8" D × 12" H; cut‑out 48‑3/8" W × 17‑3/8" D fits standard countertops; NSF certified.
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | DISLCP-2 |
| Shipping Weight (Supplier Reference) | 168 lbs |
| Width | 49.63 in. |
| Depth | 18.63 in. |
| Height | 12.94 in. |
| Pan Qty | 2-pan |
| Layout | straight |
| Width (side - side) OA | 49 - 54 inches |
| Depth (front-to-back) OA | 13- 18 inches |
| Interior Liner | stainless steel |
| Exterior Liner | galvanized steel |
| Certifications | NSF |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features.
Documents and Resources
Available documents: Spec Sheet. Open the product documents section to view or download the manufacturer PDFs.
