Description

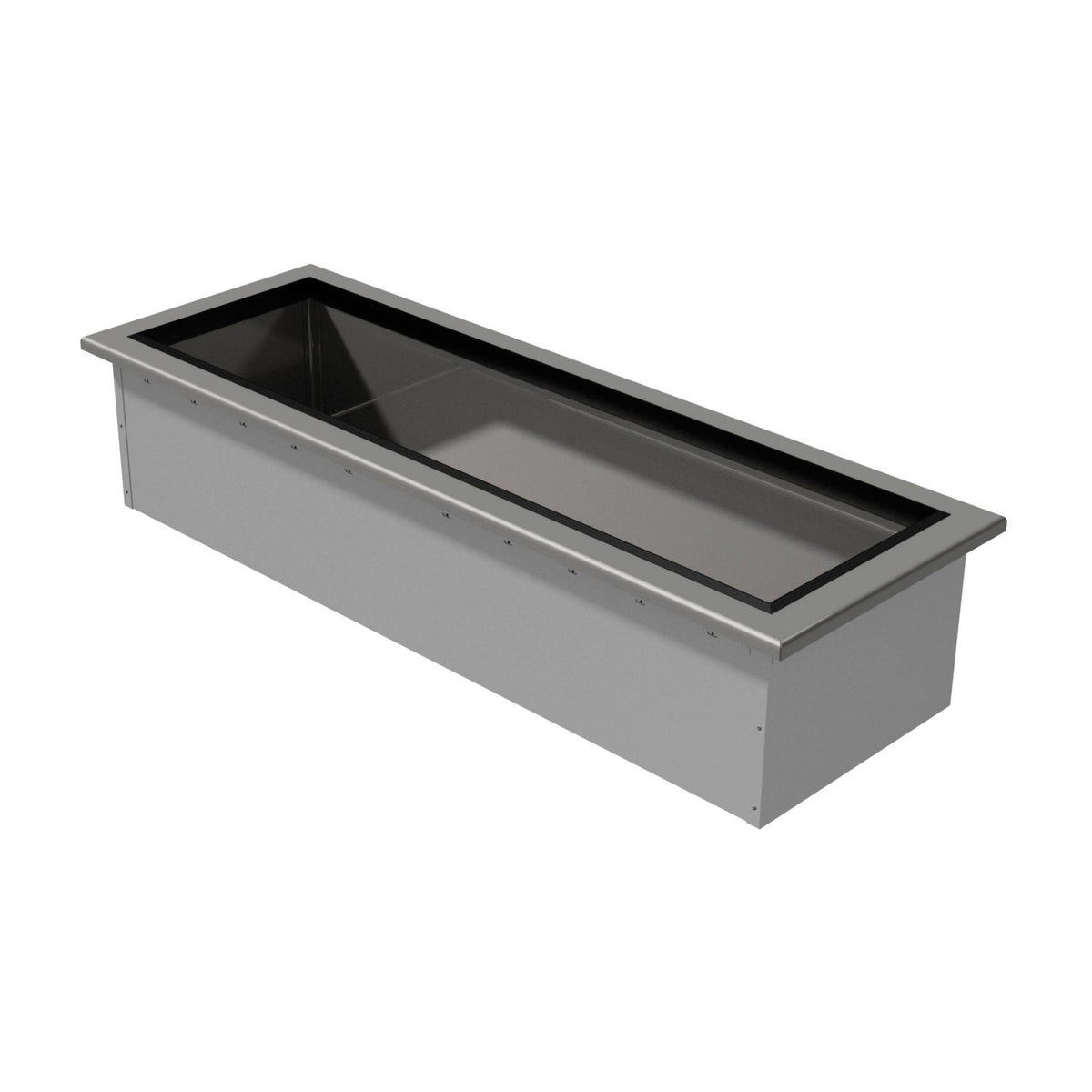

Advance Tabco DISLCP-3 — Drop-In Cold Food Wells
The Advance Tabco DISLCP-3 is offered in the configuration shown below. Overall dimensions: 71.25 in. W × 18.63 in. D × 12.94 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- Slim Series Ice Cooled Food Well Unit
- drop-in
- ice cooled
- accommodates (3) 12" x 20" pans inserts up to 6-1/4" deep (with additional space below for ice)
- 71-1/4"W x 18-5/8"D x 12"H (overall)
- 9" deep well with 1" drain
- 70"W x 17-3/8"D (cutout size)
- insulated
- 18/304 stainless steel self rimmed top
- black polyethylene thermal breaker
- 20/300 series stainless steel bin
- 20 gauge galvanized steel exterior
- NSF
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | DISLCP-3 |
| Shipping Weight (Supplier Reference) | 178 lbs |
| Width | 71.25 in. |
| Depth | 18.63 in. |
| Height | 12.94 in. |
| Pan Qty | 3-pan |
| Layout | straight |
| Width (side - side) OA | 67 - 72 inches |
| Depth (front-to-back) OA | 13- 18 inches |
| Interior Liner | stainless steel |
| Exterior Liner | galvanized steel |
| Certifications | NSF |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features.
Documents and Resources
Available documents: Spec Sheet. Open the product documents section to view or download the manufacturer PDFs.
