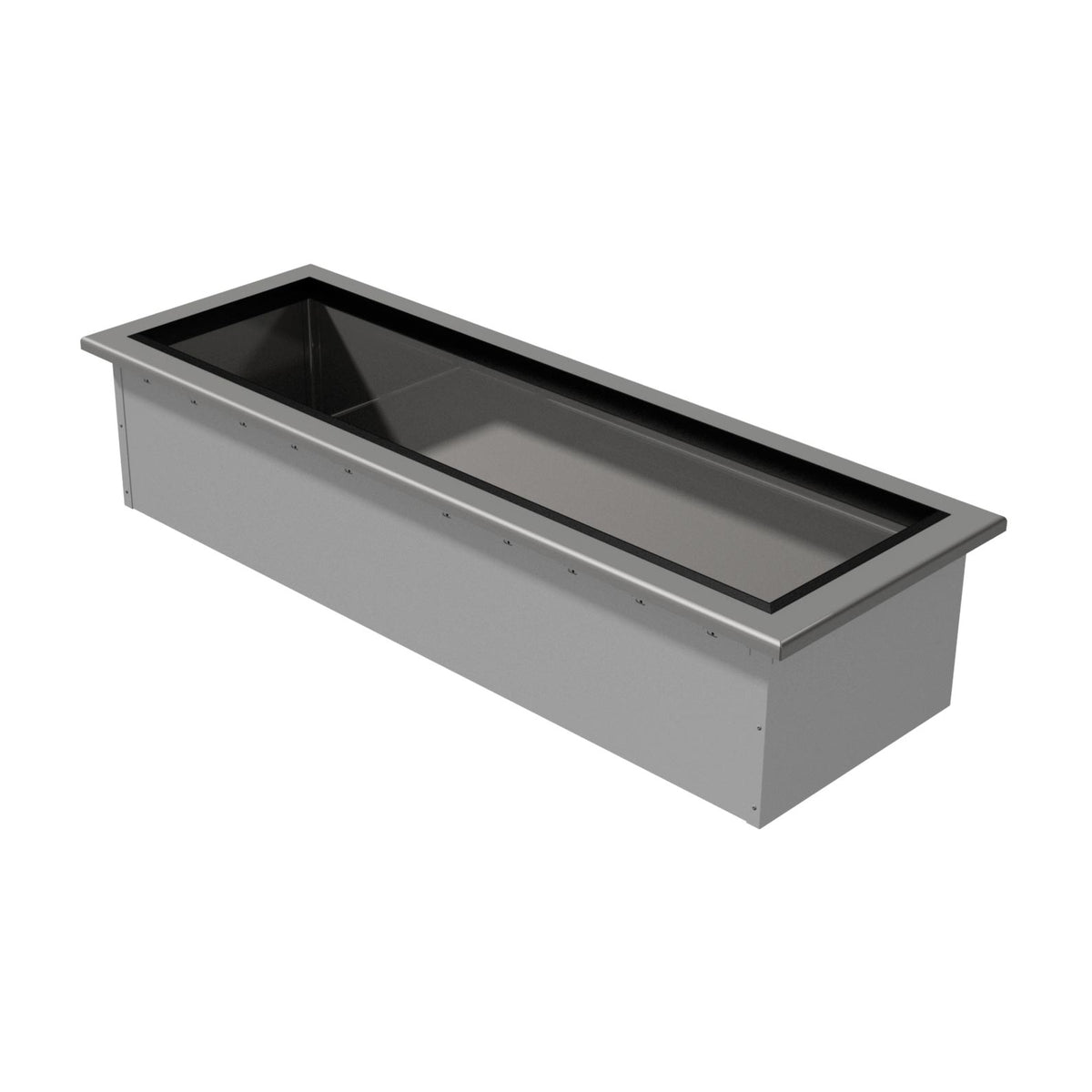

Advance Tabco DISLCP-4 — Drop-In Cold Food Wells
The Advance Tabco DISLCP-4 is offered in the configuration shown below. Overall dimensions: 92.88 in. W × 18.63 in. D × 12.94 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- Fits four 12" × 20" pans, 6¼" deep for high‑volume service.
- Ice capacity 204 lb supports up to 6 hrs of cooling.
- 18‑gauge #304 stainless steel top and 20‑gauge #300 bin.
- Insulated walls with polyurethane bottom and thermal breaker.
- NSF certified with 20‑gauge galvanized steel exterior.
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | DISLCP-4 |
| Shipping Weight (Supplier Reference) | 215 lbs |
| Width | 92.88 in. |
| Depth | 18.63 in. |
| Height | 12.94 in. |
| Pan Qty | 4-pan |
| Layout | straight |
| Width (side - side) OA | 91 - 96 inches |
| Depth (front-to-back) OA | 13- 18 inches |
| Interior Liner | stainless steel |
| Exterior Liner | galvanized steel |
| Certifications | NSF |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features.
Documents and Resources
Available documents: Spec Sheet. Open the product documents section to view or download the manufacturer PDFs.
