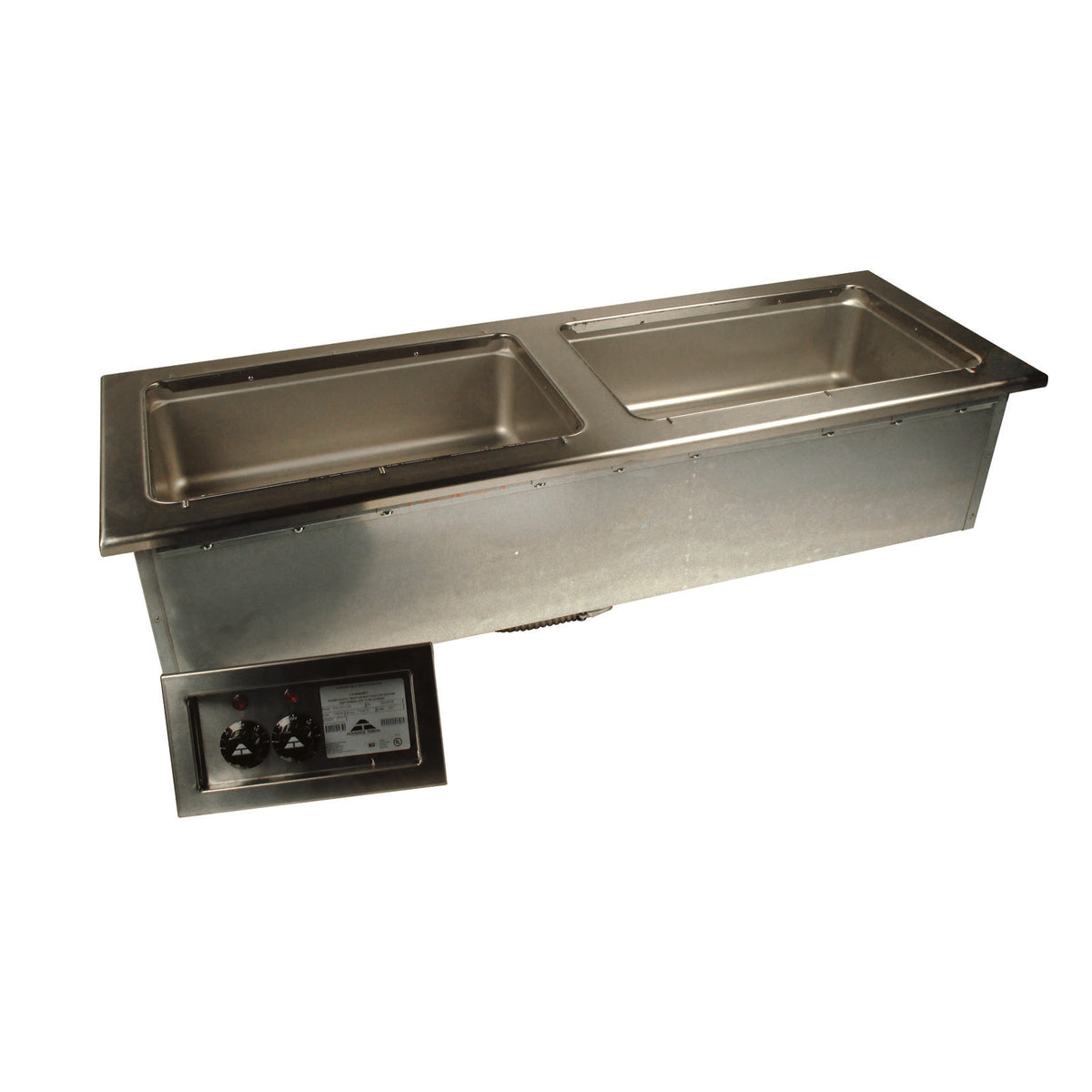

Advance Tabco DISLSW-2-120 — Drop-In Hot Food Wells
The Advance Tabco DISLSW-2-120 is offered in the configuration shown below. Overall dimensions: 46.5 in. W × 16.5 in. D × 10.19 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- Two 12" x 20" sealed wells hold full-size pans up to 6¼" deep for high-volume service.
- Wet or dry operation with built‑in drains lets you choose the best method for your line.
- 18‑gauge #304 stainless steel self‑rimmed top and 20‑gauge galvanized body meet NSF and UL standards.
- Remote control panel provides infinite knobs, indicator lights and individual pan temperature control.
- Dimensions 46½" W x 16½" D x 10‑3/16" H; cut‑out size 45¼" W x 15¼" D fits standard countertops.
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | DISLSW-2-120 |
| Shipping Weight (Supplier Reference) | 125 lbs |
| Width | 46.5 in. |
| Depth | 16.5 in. |
| Height | 10.19 in. |
| Insulated or Non-Insulated | insulated |
| Style | individual pans |
| Controls | infinite controls |
| Wet or Dry operation | wet or dry |
| Construction | stainless steel top, corrosion resistant steel exterior |
| Drain | with drain |
| Certifications | NSF, UL |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features. Follow the manufacturer manual for assembly and installation.
Documents and Resources

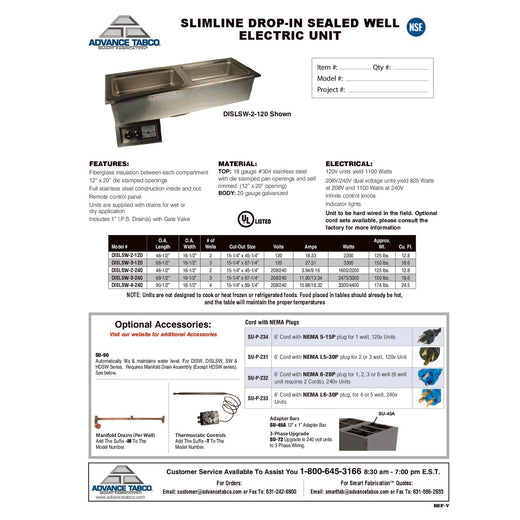

Available documents: Spec Sheet, Parts List, Owner's Manual. Open the product documents section to view or download the manufacturer PDFs.
