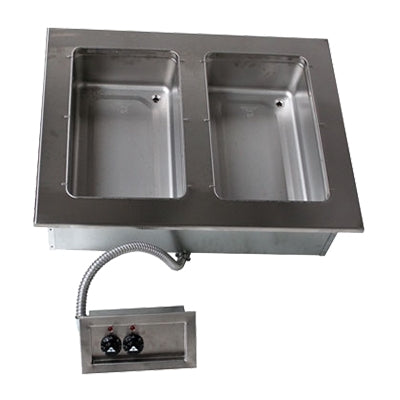

Advance Tabco DISW-2-120 — Drop-In Hot Food Wells
The Advance Tabco DISW-2-120 is offered in the configuration shown below. Overall dimensions: 30.5 in. W × 24.5 in. D × 15.44 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- Two 12" × 20" sealed stainless-steel pans hold full-size trays and include built-in drains for wet or dry operation.
- 18‑gauge #304 stainless steel self-rimmed top and 20‑gauge galvanized body provide durable, NSF‑listed construction.
- Infinite rotary controls with individual indicator lights allow precise temperature adjustments for each pan.
- 120 V unit delivers 1100 W per well (2200 W total) and is hard-wired for reliable commercial use.
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | DISW-2-120 |
| Shipping Weight (Supplier Reference) | 110 lbs |
| Width | 30.5 in. |
| Depth | 24.5 in. |
| Height | 15.44 in. |
| Insulated or Non-Insulated | insulated |
| Style | individual pans |
| Controls | infinite controls |
| Wet or Dry operation | wet or dry |
| Construction | stainless steel construction |
| Drain | with drain |
| Certifications | NSF, UL |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features.
Documents and Resources
Available documents: Spec Sheet, Parts List, Diagram, O. Open the product documents section to view or download the manufacturer PDFs.
