Description

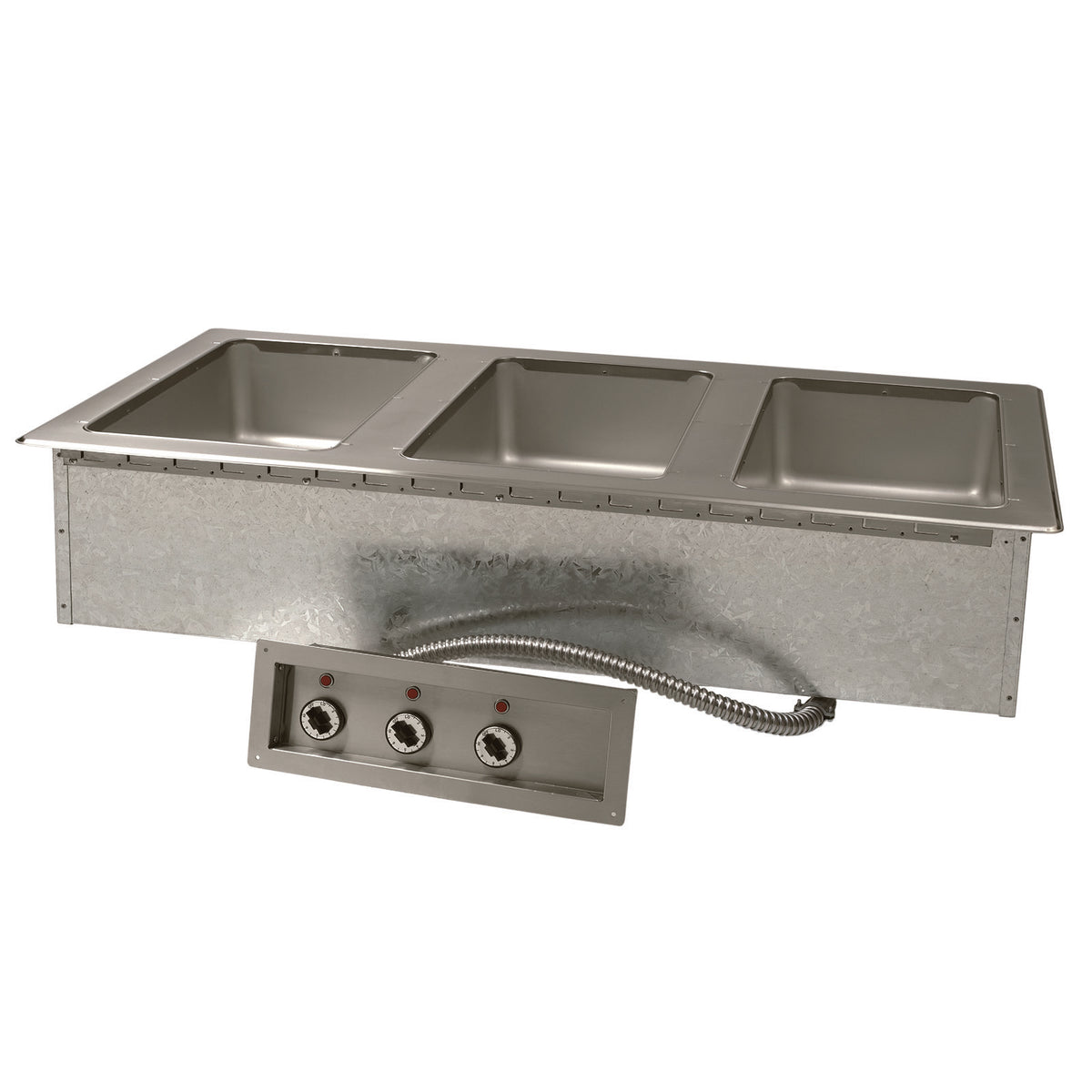

Advance Tabco DISW-3-120 — Drop-In Hot Food Wells
The Advance Tabco DISW-3-120 is offered in the configuration shown below. Overall dimensions: 44.5 in. W × 24.5 in. D × 15.44 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- Hot Food Well Unit
- drop-in
- electric
- 44-1/2”W x 24-1/2"D x 15-7/16"H (overall)
- 43-5/8”W x 23-1/2”D (cut out size)
- (3) 12" x 20" sealed hot food wells with drains (accommodates pan inserts up to 6-1/4" deep)
- wet or dry operation
- remote control panel with individual infinite controls
- indicator lights
- 18 gauge 304 stainless steel self rimmed top
- 20 gauge galvanized body
- NSF
- UL
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | DISW-3-120 |
| Shipping Weight (Supplier Reference) | 135 lbs |
| Width | 44.5 in. |
| Depth | 24.5 in. |
| Height | 15.44 in. |
| Insulated or Non-Insulated | insulated |
| Style | individual pans |
| Controls | infinite controls |
| Wet or Dry operation | wet or dry |
| Construction | stainless steel construction |
| Drain | with drain |
| Certifications | NSF, UL |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features.
Documents and Resources

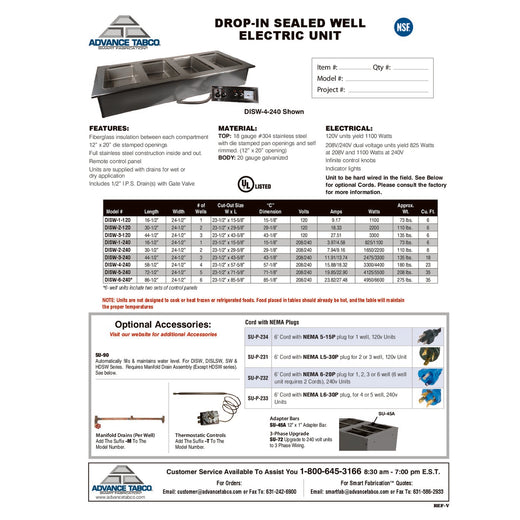

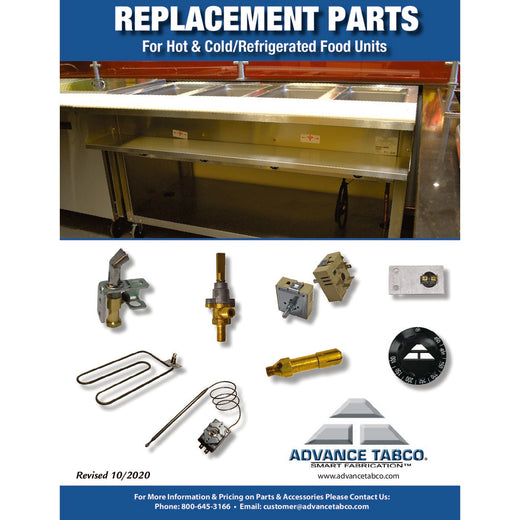

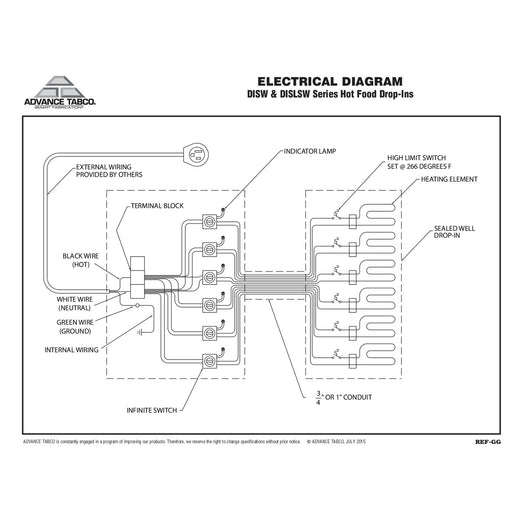

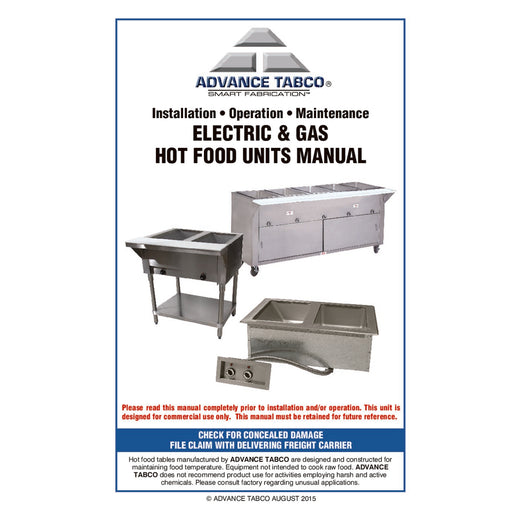

Available documents: Spec Sheet, Diagram, Parts List, O. Open the product documents section to view or download the manufacturer PDFs.
