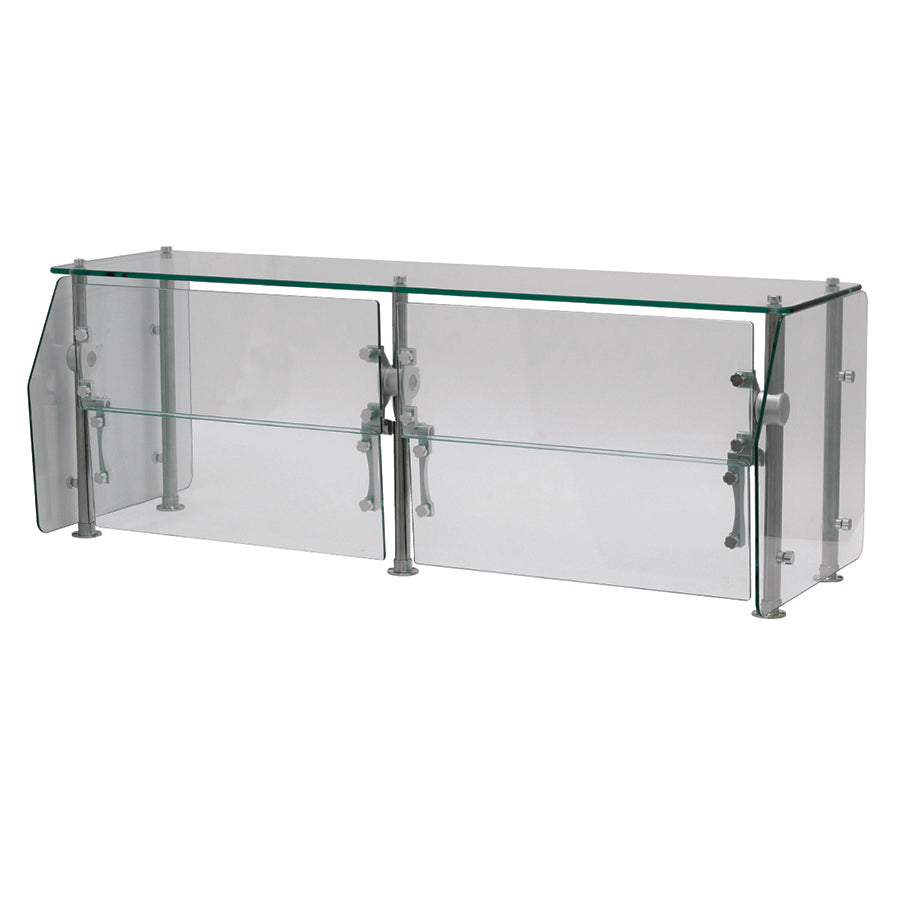

Advance Tabco DSG-15G-48 — Restaurant Sneeze Guards
The Advance Tabco DSG-15G-48 is offered in the configuration shown below. Overall dimensions: 48 in. W × 15 in. D × 18 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- 48" wide x 15" deep x 18" high shield with 3/8" heat‑tempered front and top glass.
- 1/4" heat‑tempered side panels, 18" deep, meet NSF 29200 requirements.
- Stainless steel 1" diameter posts and TIG‑welded frame with satin‑finish polish.
- Chamber Lock™ rotates front glass in 15° increments, locking in three positions, supports 100 lb top load.
- All components anodized or polished for corrosion resistance; NSF certified.
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | DSG-15G-48 |
| Shipping Weight (Supplier Reference) | 182 lbs |
| Width | 48 in. |
| Depth | 15 in. |
| Height | 18 in. |
| Type | single-sided |
| Service | full / self-service |
| Frame Construction | stainless steel |
| Certifications | NSF |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features.
Documents and Resources
Available documents: Spec Sheet. Open the product documents section to view or download the manufacturer PDFs.
