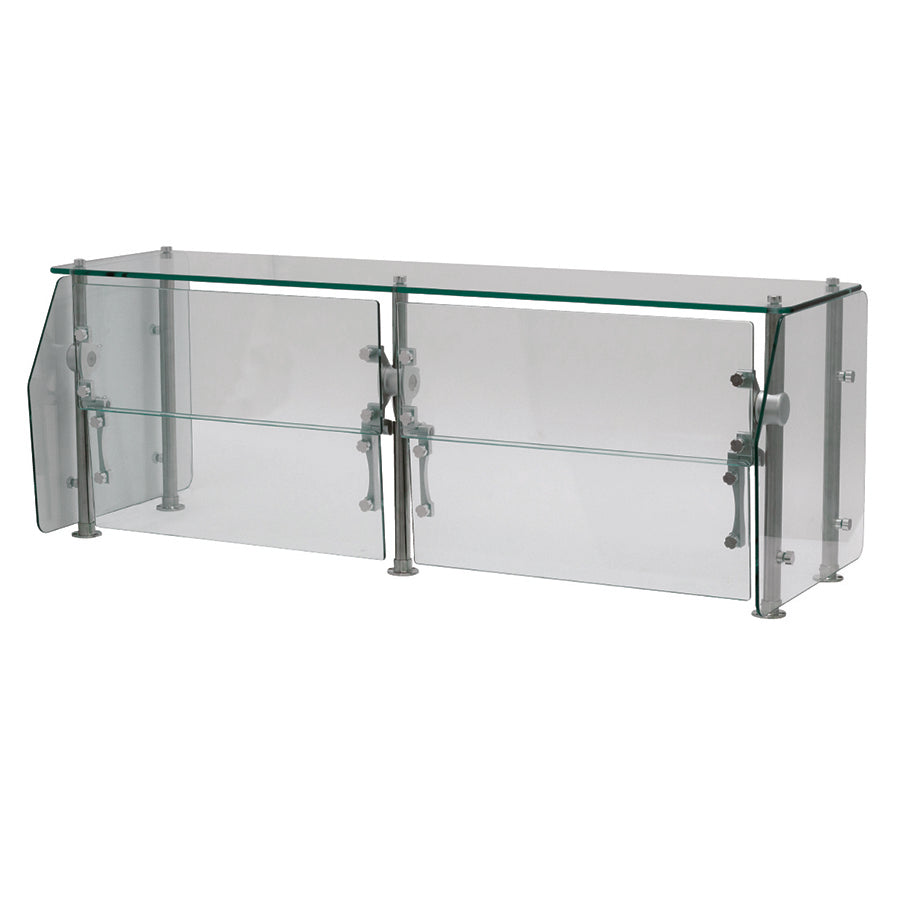

Advance Tabco DSG-15G-72 — Restaurant Sneeze Guards
The Advance Tabco DSG-15G-72 is offered in the configuration shown below. Overall dimensions: 72 in. W × 15 in. D × 18 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- Dimensions: 72 in wide, 15 in deep, 18 in high with a 3/8 in heat‑tempered glass top.
- Front glass rotates in 15° increments and locks at three positions for easy cleaning.
- Stainless‑steel 1‑in diameter posts and TIG‑welded frame give durable, satin‑finish support.
- Maximum top‑glass load 100 lb evenly distributed; includes two additional center support posts and meets NSF certification 29200.
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | DSG-15G-72 |
| Shipping Weight (Supplier Reference) | 266 lbs |
| Width | 72 in. |
| Depth | 15 in. |
| Height | 18 in. |
| Type | single-sided |
| Service | full / self-service |
| Frame Construction | stainless steel |
| Certifications | NSF |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features.
Documents and Resources
Available documents: Spec Sheet. Open the product documents section to view or download the manufacturer PDFs.
