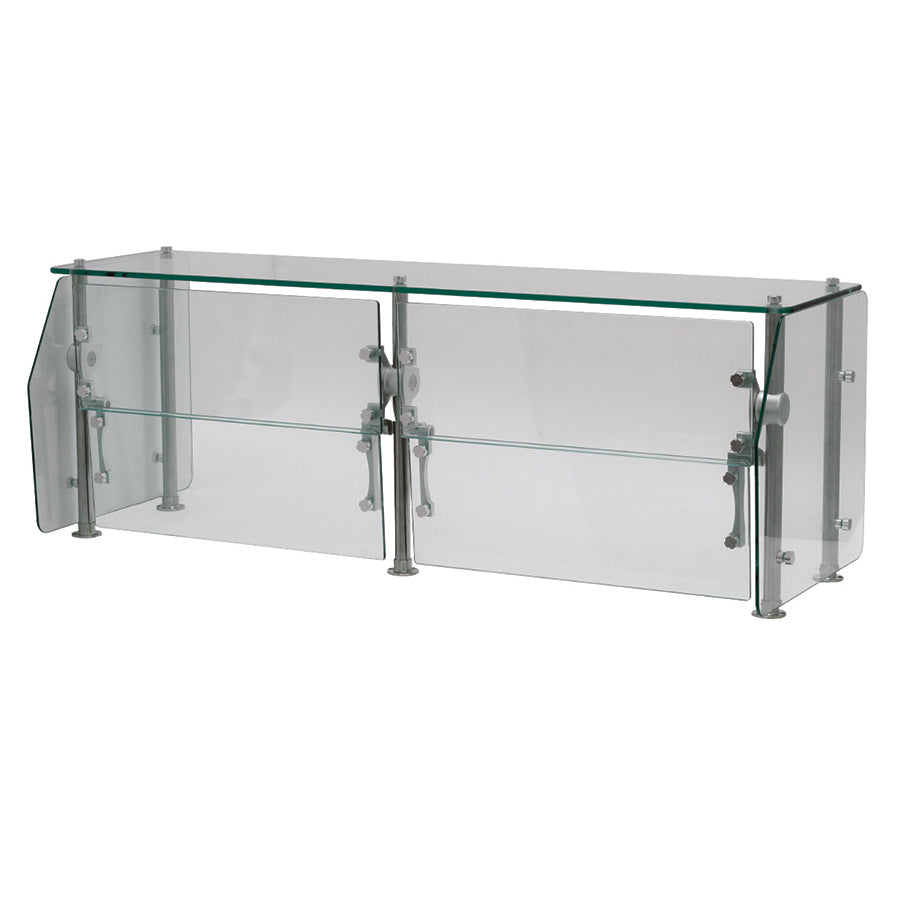

Advance Tabco DSG-18G-48 — Restaurant Sneeze Guards
The Advance Tabco DSG-18G-48 is offered in the configuration shown below. Overall dimensions: 48 in. W × 18 in. D × 18 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- 48" W x 18" D x 18" H shield with 3/8" heat‑tempered front and top glass.
- Stainless steel 1" posts and Chamber Lock™ rotate the front in 15° steps for cleaning.
- 1/4" heat‑tempered side panels, 18" deep, comply with NSF self‑service standards.
- Top glass supports up to 100 lb evenly distributed load.
- Meets certification 29200; all TIG‑welded with satin‑finish stainless steel.
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | DSG-18G-48 |
| Shipping Weight (Supplier Reference) | 187 lbs |
| Width | 48 in. |
| Depth | 18 in. |
| Height | 18 in. |
| Type | single-sided |
| Service | full / self-service |
| Frame Construction | stainless steel |
| Certifications | NSF |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features.
Documents and Resources
Available documents: Spec Sheet. Open the product documents section to view or download the manufacturer PDFs.
