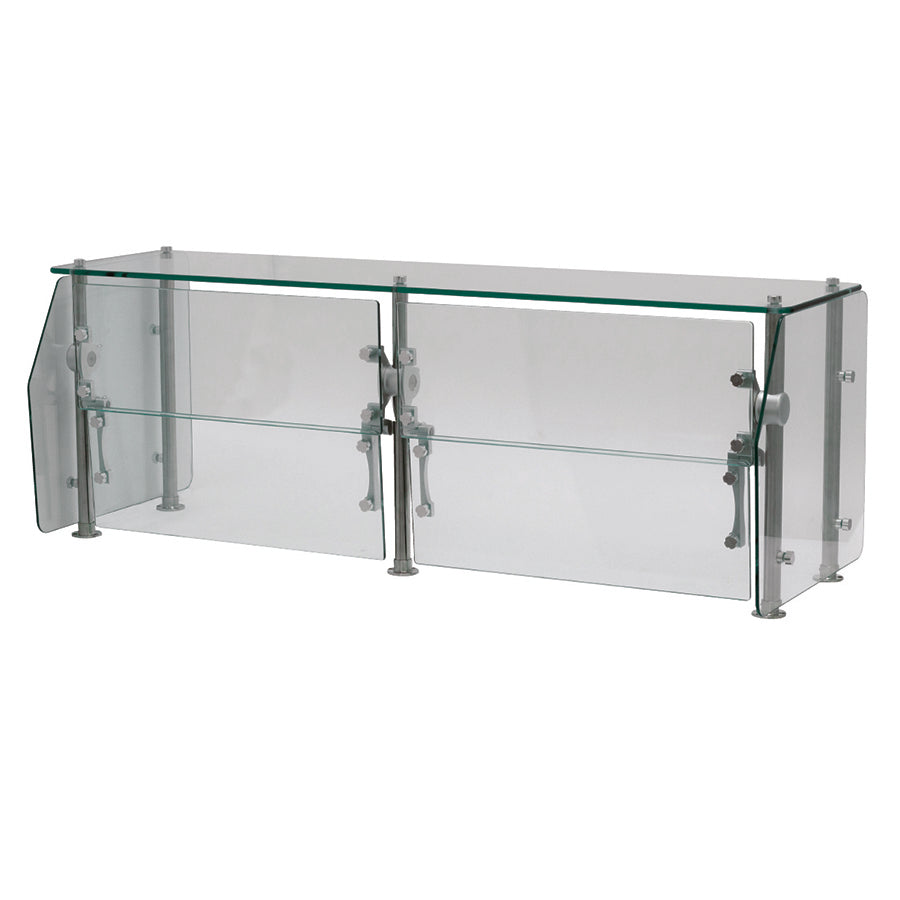

Advance Tabco DSG-18G-60 — Restaurant Sneeze Guards
The Advance Tabco DSG-18G-60 is offered in the configuration shown below. Overall dimensions: 60 in. W × 18 in. D × 18 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- Size 60" W × 18" D × 18" H; 3/8" heat‑tempered glass front and top.
- Stainless‑steel 1" posts and anodized aluminum Chamber Lock™ rotate 15° for cleaning.
- Side panels 1/4" heat‑tempered glass, 18" deep to satisfy NSF.
- Top glass supports up to 100 lb evenly distributed load.
- Certified under code 29200 for foodservice equipment.
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | DSG-18G-60 |
| Shipping Weight (Supplier Reference) | 242 lbs |
| Width | 60 in. |
| Depth | 18 in. |
| Height | 18 in. |
| Type | single-sided |
| Service | full / self-service |
| Frame Construction | stainless steel |
| Certifications | NSF |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features.
Documents and Resources
Available documents: Spec Sheet. Open the product documents section to view or download the manufacturer PDFs.
