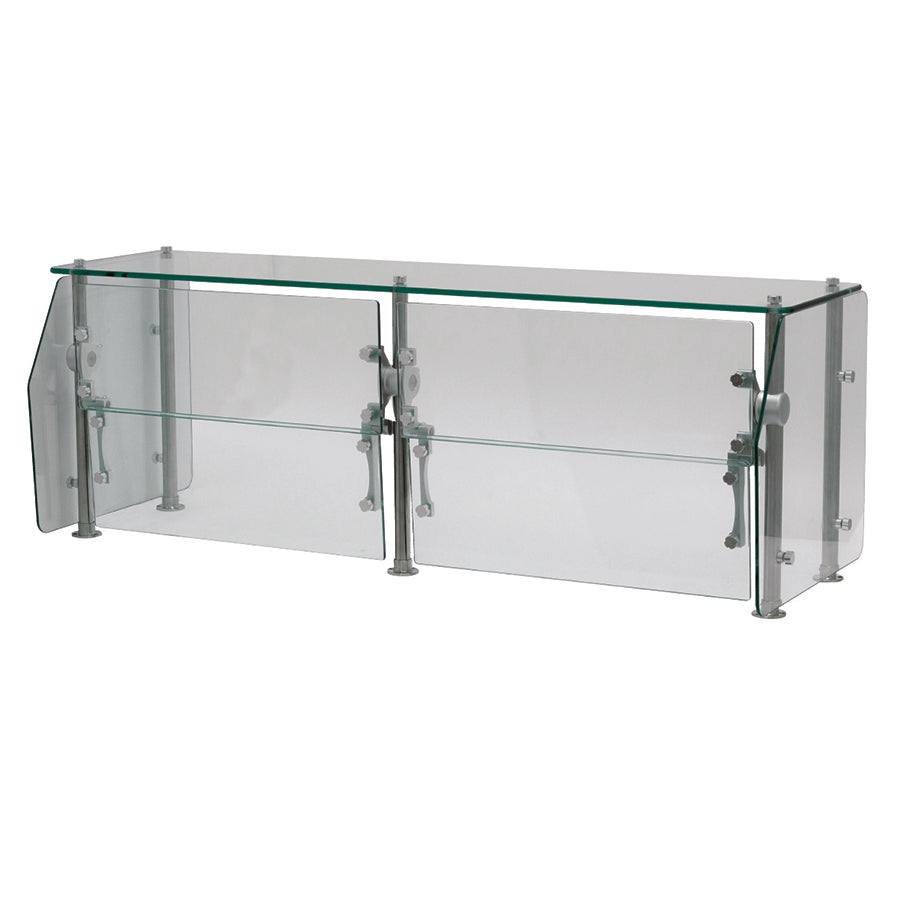

Advance Tabco DSG-18G-72 — Restaurant Sneeze Guards
The Advance Tabco DSG-18G-72 is offered in the configuration shown below. Overall dimensions: 72 in. W × 18 in. D × 18 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- Sleek Shield™ Food Shield
- multi-use (self-service or cafeteria style) (Patent Pending)
- 72"W x 18"D x 18"H
- with glass top shelf
- 3/8" thick heat tempered glass front & 1/4" thick side panels (side panels 18" deep to meet NSF requirements)
- 3/8" thick heat tempered top glass
- equipped with Chamber Lock™ technology fixed to upright legs
- allowing rotation in 15 degree intervals
- maximum load on top glass 100 pounds evenly distributed weight
- includes: (2) additional center support posts
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | DSG-18G-72 |
| Shipping Weight (Supplier Reference) | 275 lbs |
| Width | 72 in. |
| Depth | 18 in. |
| Height | 18 in. |
| Type | single-sided |
| Service | full / self-service |
| Frame Construction | stainless steel |
| Certifications | NSF |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features.
Documents and Resources

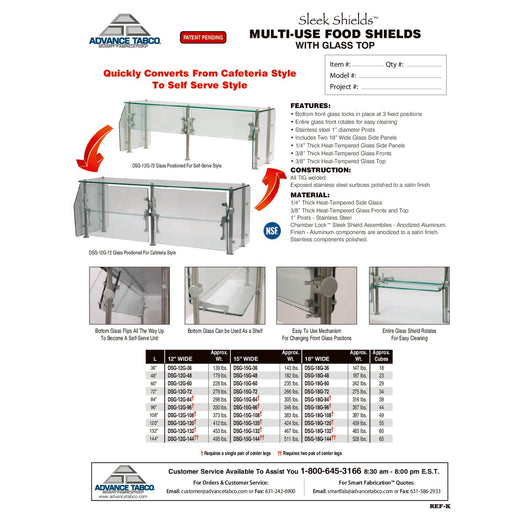

Available documents: Spec Sheet. Open the product documents section to view or download the manufacturer PDFs.
