Description

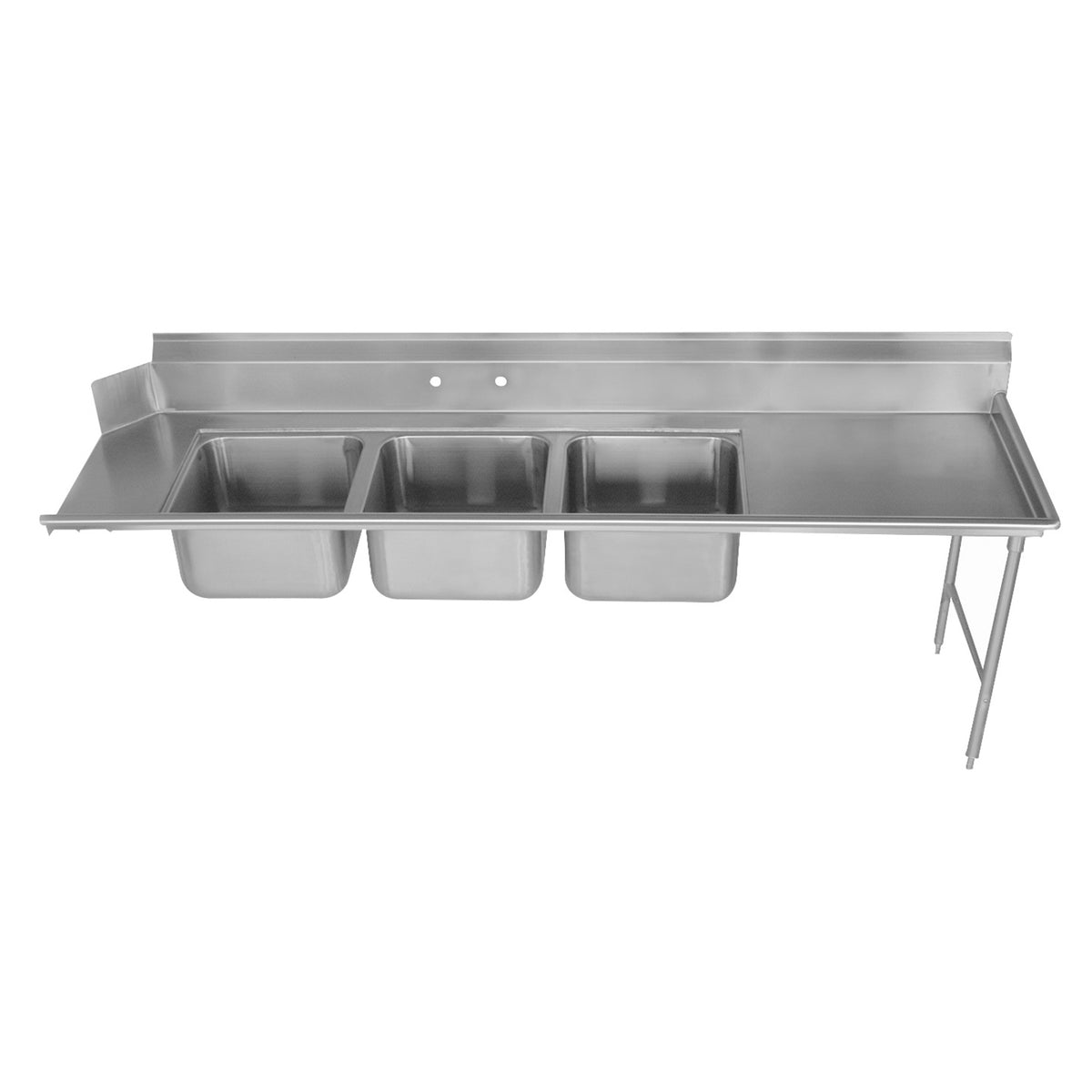

Advance Tabco DTC93-2020-9R — Dishtables
The Advance Tabco DTC93-2020-9R is offered in the configuration shown below. Overall dimensions: 108 in. W × 30 in. D × 44.5 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- Dishtable with 3-compartment Sink, 108”W, (3) 20" x 20" x 12" Deep Drawn™ bowls, 16 gauge 304 stainless steel top, stainless steel legs & front-to-back crossrails, attaches to right of dish machine operator, stainless steel bullet feet, 28" right drainboard, bowls are located 12" from machine, NSF (must verify machine to make sure the control box does not interfere)
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | DTC93-2020-9R |
| Shipping Weight (Supplier Reference) | 285 lbs |
| Width | 108 in. |
| Depth | 30 in. |
| Height | 44.5 in. |
| Dishtable Type | with Potsinks |
| Compartment (front - back) | 20" |
| Shape Type | straight |
| Width (side - side) OA | 97" - 108" |
| Stainless Series | 300 series |
| Gauge | 16 ga |
| Dishtable Legs | stainless steel |
| Dish Machine Location | left side |
| Compartment (side - side) | 20" |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features.
Documents and Resources

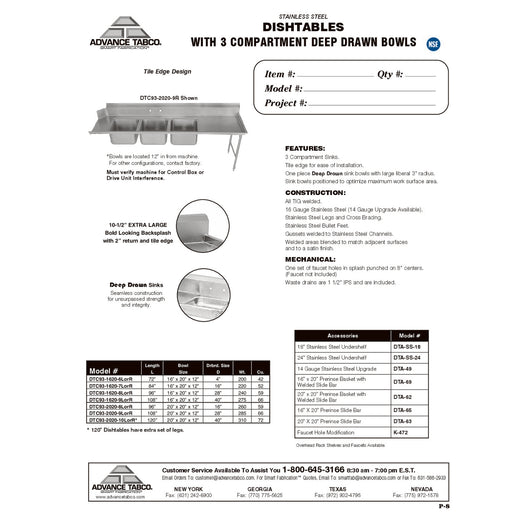

Available documents: Spec Sheet. Open the product documents section to view or download the manufacturer PDFs.
