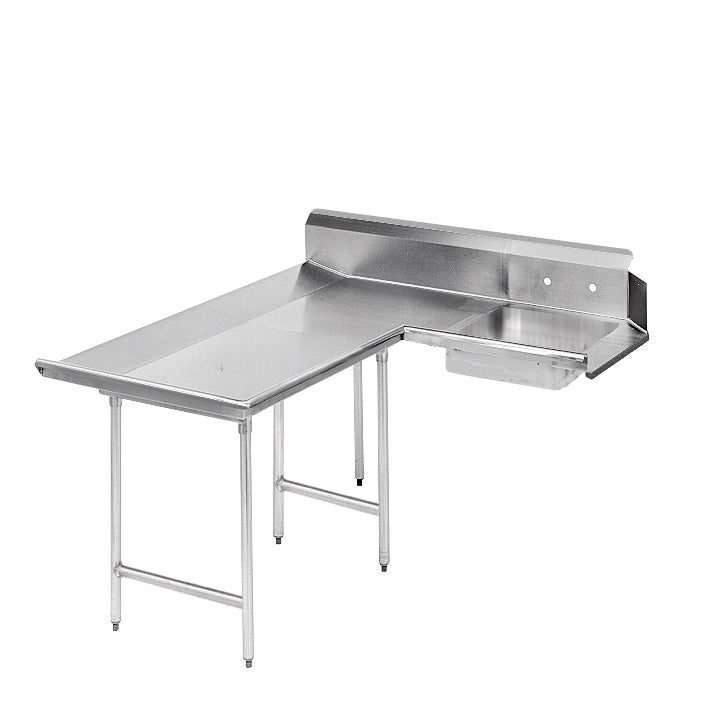

Advance Tabco DTS-D30-84L — Dishtables
The Advance Tabco DTS-D30-84L is offered in the configuration shown below. Overall dimensions: 44 in. H. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- Dishlanding-Soil Dishtable
- L-shaped with landing
- attaches to left of dish machine operator
- 10-1/2"H backsplash
- with pre-rinse sink
- stainless steel legs with crossrails front to back
- 83" long
- 14/304 stainless steel
- Includes prerinse basket with slide bar (slide bar only when K-461 or K-461A disposer adapter is specified)
Technical Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model Number | DTS-D30-84L |
| Shipping Weight (Supplier Reference) | 265 lbs |
| Height | 44 in. |
| Dishtable Type | Soiled |
| Dishtable Direction | left to right |
| Shape Type | L-shaped |
| Splash Height | 10"H splash |
| Width (machine - corner) OA | 61" - 72" |
| Width (end - corner) OA | 73" - 84" |
| Stainless Series | 300 series |
| Stainless Gauge | 14 gauge |
| Leg Type | stainless steel legs |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features.
Documents and Resources

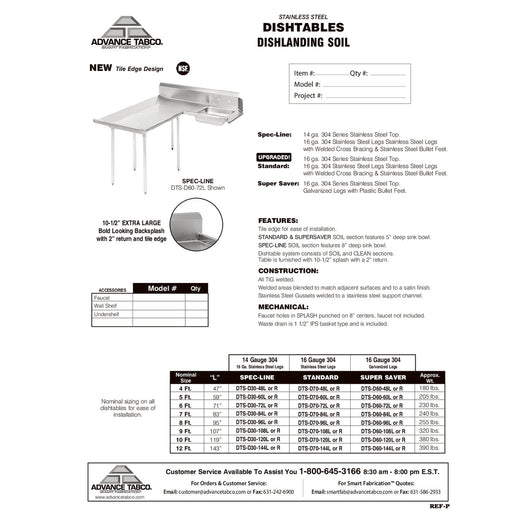

Available documents: Spec Sheet, Compatibility Chart. Open the product documents section to view or download the manufacturer PDFs.
